Making Connections
There are several different connection options available when using the BP80. The following
diagrams show the connections for some of these options.
Before connecting the BP80, make sure that the power to your amplifier is turned off, and the
power to the BP80 is disconnected. There is not a power switch on the BP80. To turn the BP80
off,disconnect your instrument from the Input Jack (for battery power) or disconnect the
PS200R power supply from the Power Jack or the AC outlet.

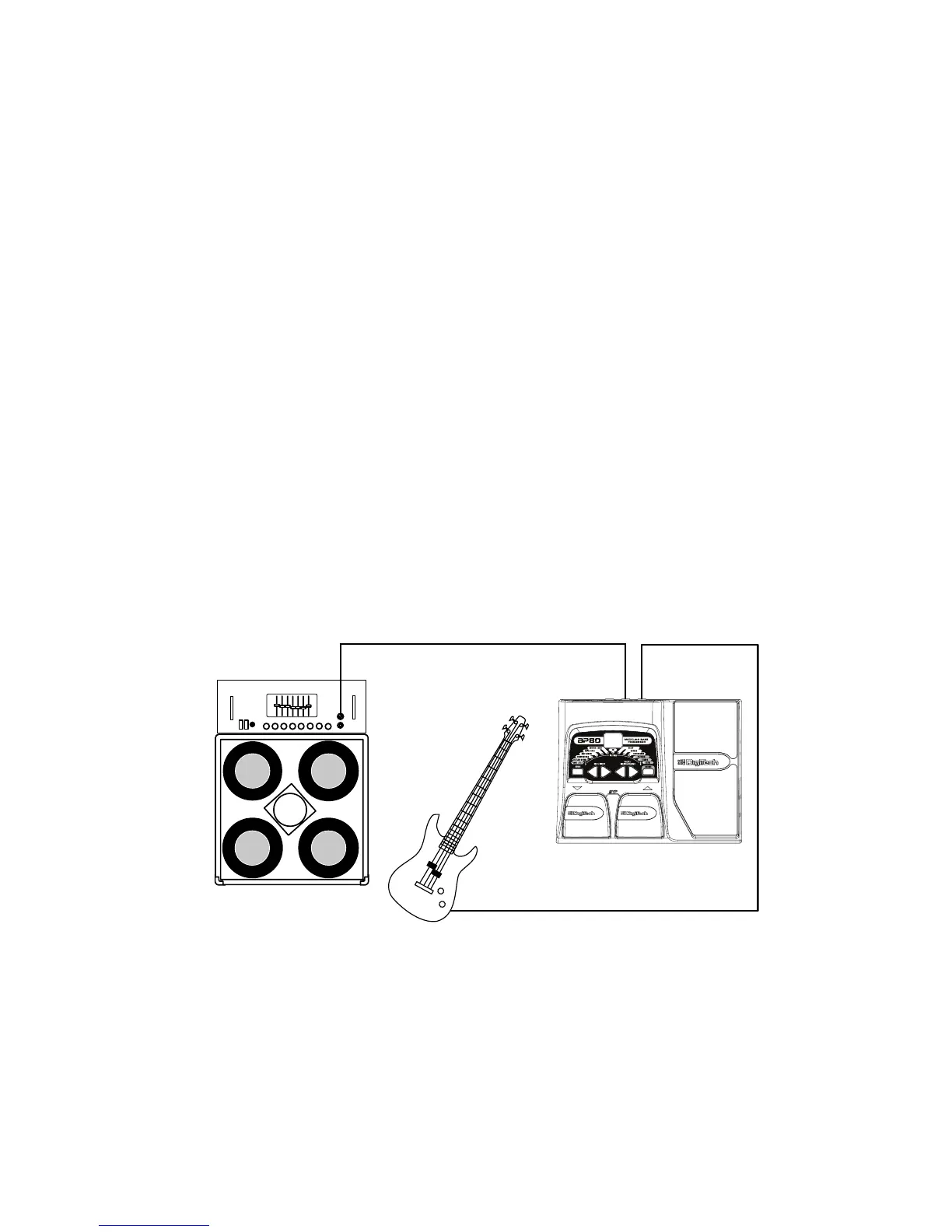

Mono Operation
Connect your bass to the Input of the BP80.Connect a single mono instrument cable from
the Left Output of the BP80 to the instrument input on your amplifier.
Bass Amp Input / Effect Return
InputLeft Output
6
