Mounting the Cradle
Connecting the Microphone
The microphone uses a miniature 6 pin style plug
and socket.
To connect the microphone:
1. Push the MIC plug at the end of the
microphone cord into the MIC jack until the
connection locks into place.
Gently tug the MIC cord to test that the
connection is locked.
2. Use the MIC Jack cover which is threaded
onto the MIC cord to seal the MIC jack entry
from dust.

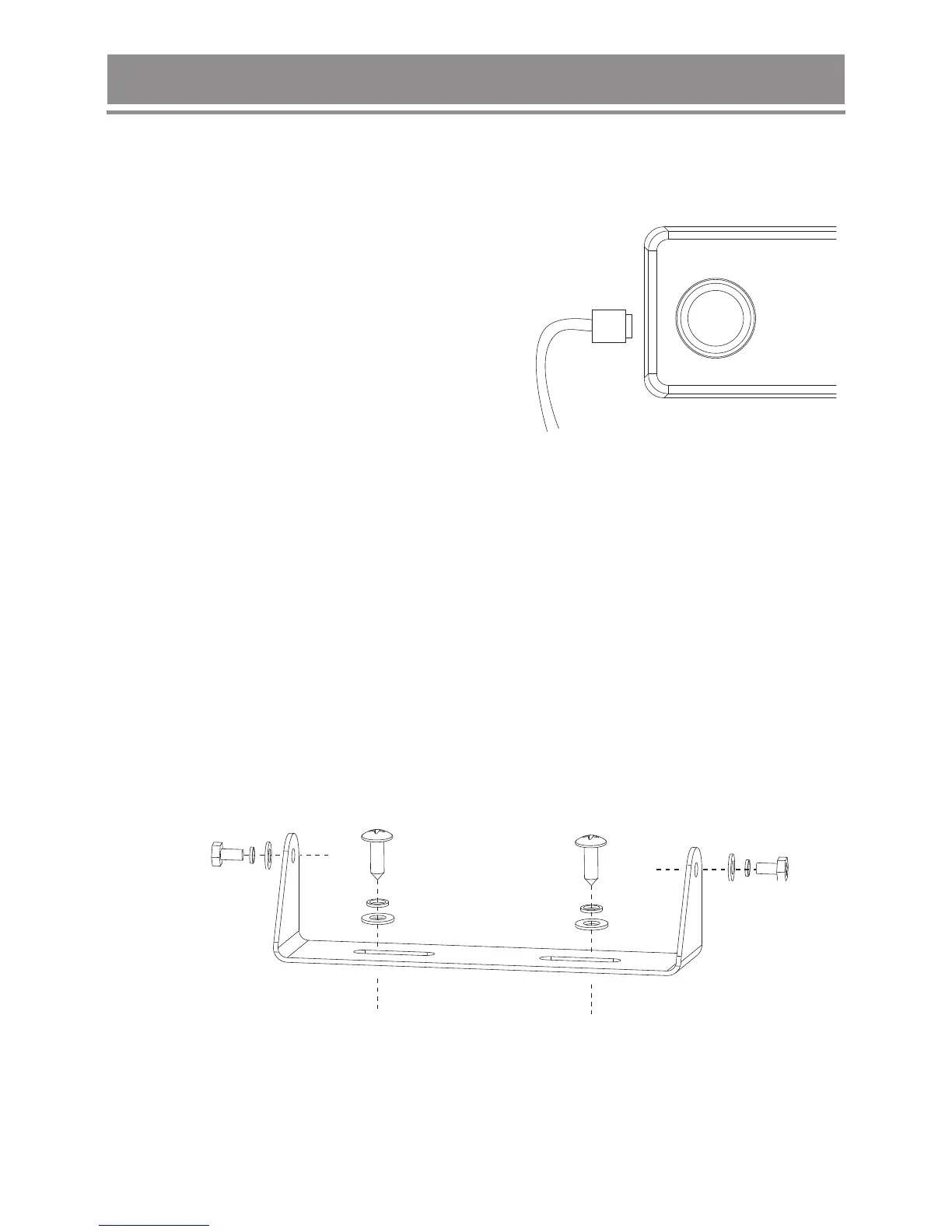

The cradle can be screwed or bolted in any convenient location in your vehicle (under
or above the dash, on the centre console, etc) using the mounting slots provided in the
base.
For maximum sound output from the build in speaker, we recommend the cradle be
mounted above the radio to minimize any obstruction of the speaker.
Avoid mounting close to heaters or air conditioners. Screw the mounting cradle to a
firm surface and put the radio into the cradle from the front until it clicks into place.
Finally, connect the power cord and antenna cable to the sockets provided at the rear
of the radio.
