Battery Replacement
Directions
1. Using the tip of a 1/4" guitar cable, push one
of the release pins in on either side of the
pedal, and remove the pedal from the pedal
chassis.
2. Remove the battery from the battery
compartment and disconnect the battery
cable.
3. Connect a new battery to the battery cable
and put it back in the battery compartment.
Make sure the battery cable does not
interfere with the spring or pedal switch
arm.
4. Place one hole of the pedal over its
corresponding pin.
5. Push the opposite pin in and lower the
other side of the pedal into place over the
depressed pin. Release the pin.When the
pedal is properly fastened, both release pins
are flush with the outer side of the pedal.

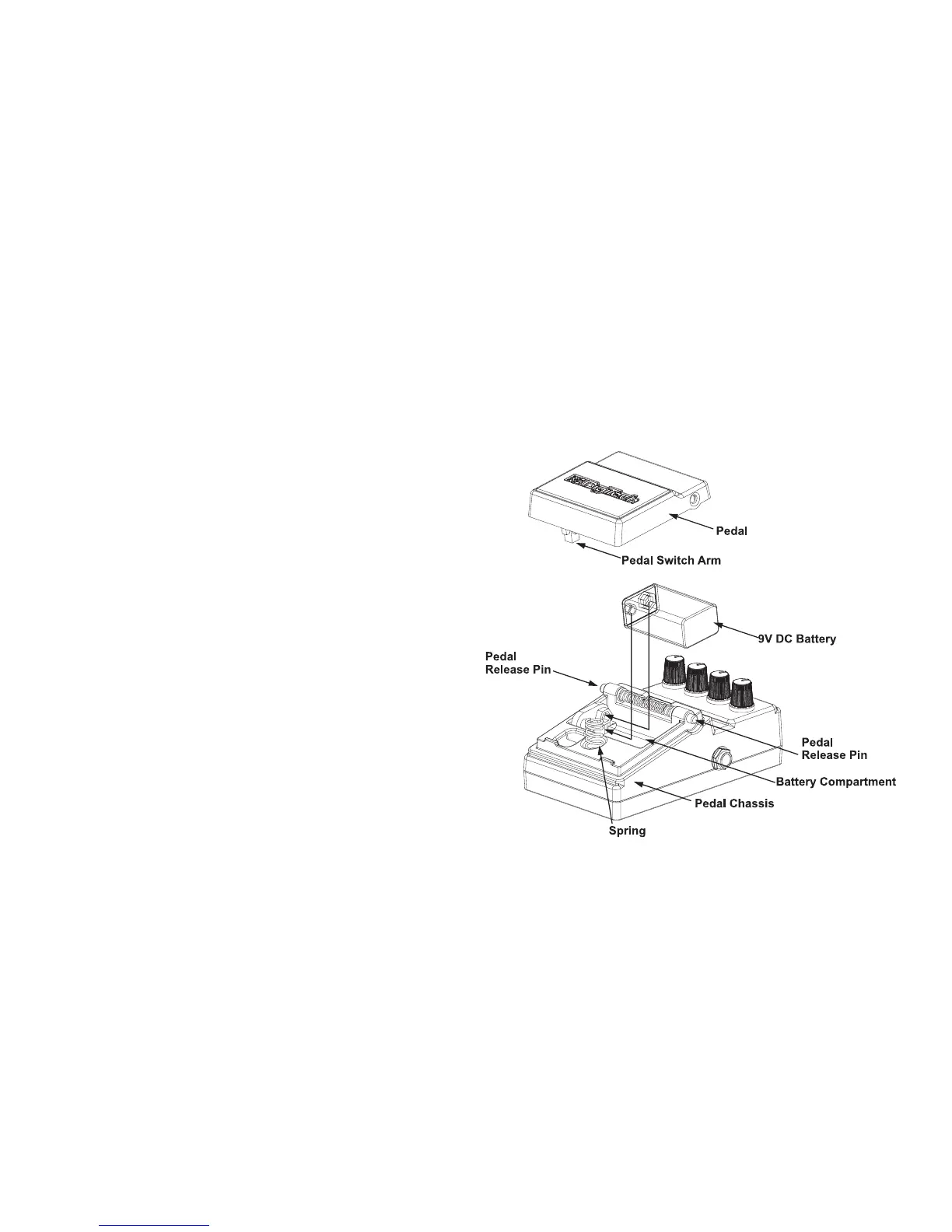

Battery Replacement Diagram
