The User Interface & Connectors

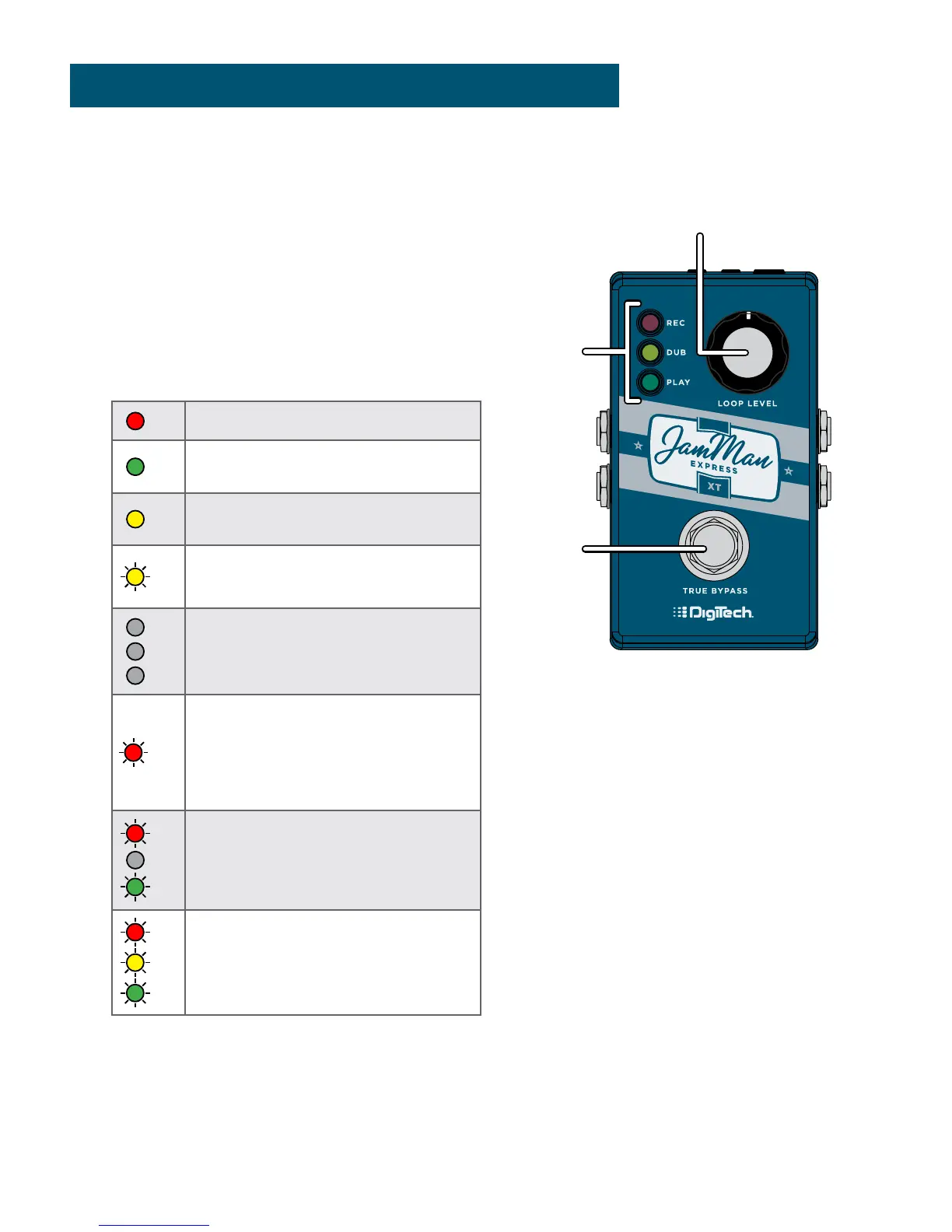

The User Interface
1. LOOP LEVEL Knob
This knob controls the output level of the
loop�
2. Status LEDs
These LEDs indicate the status of the
pedal as shown in the below table�
LED Status
REC
Loop is being recorded.
PLAY
Loop is playing.
DUB
Overdub is being recorded.
DUB
Overdub is being undone/redone.
REC
DUB
PLAY
Pedal is in standby
(recording/playback stopped).
REC
Loop is being cleared
(footswitch held).
Slave armed for record
(connected as slave via JamSync).
REC
DUB
PLAY
Slave synchronization established via
JamSync.
REC
DUB
PLAY
Low battery.
1
3
2
4 5
6
9
10
8
7
3. Footswitch
The Footswitch is used to perform functions in the JamMan Express XT� It is used to
control all looping functions (record, play, overdub, undo/redo, stop, and loop clear)�
