Operator's Manual DS7A - Constant Current Stimulator
D185-HB1

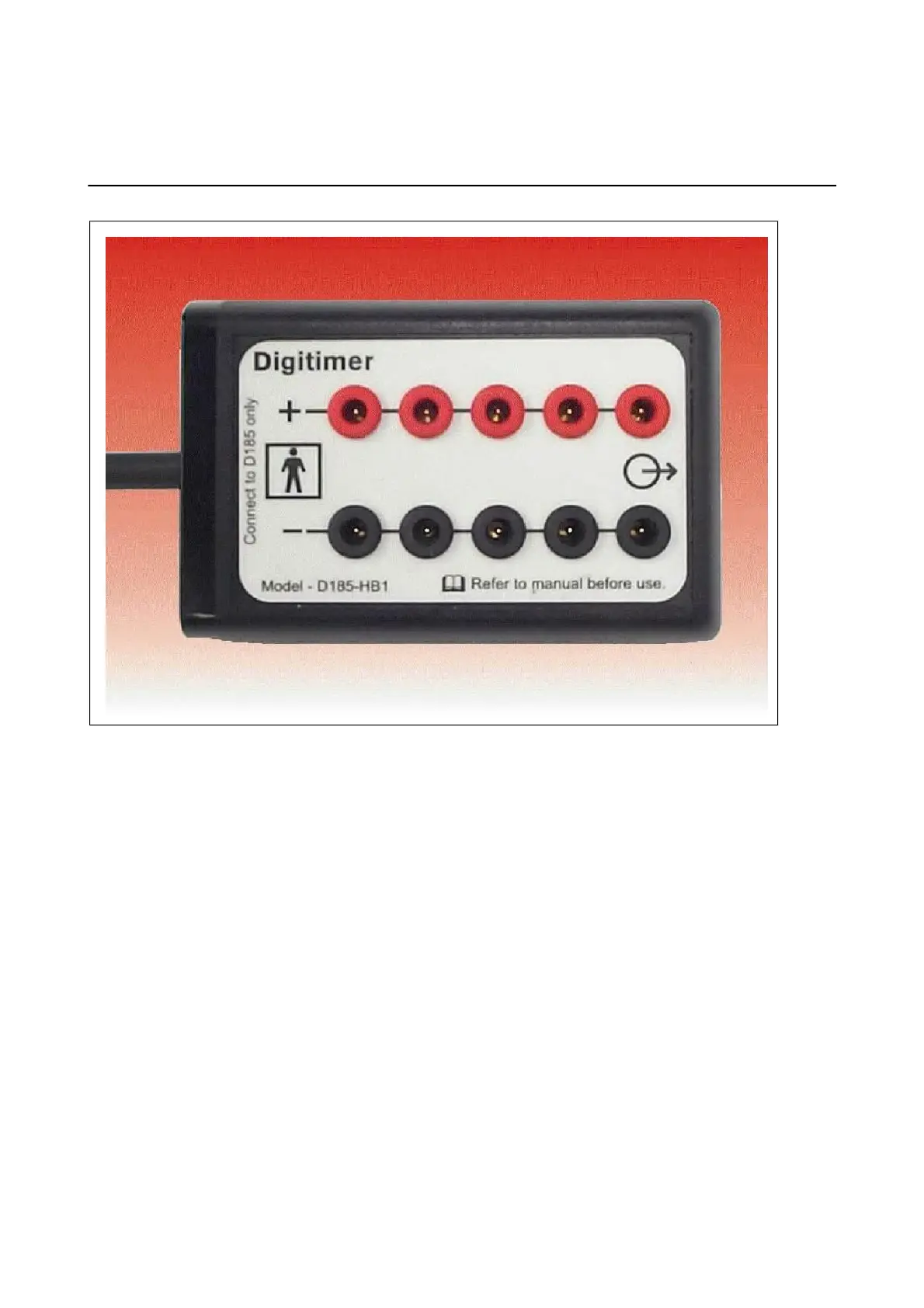

This provides a 4.5 m extension of the patient output sockets terminating in a small box that can be
positioned near the patient’s head. The box has five (5) 1.5 mm DIN 42 802-1 style “TouchProof” sockets
for both connections for those who wish to use protocols with linked cathodes and/or anodes.
The moulded twin shrouded 4 mm connector (not shown) should be inserted into the pair of DS7A Stimulus
Output sockets with a Red-to-Red and Black-to-Black mating.
