Operator's Manual DS7A - Constant Current Stimulator
D185-HB4

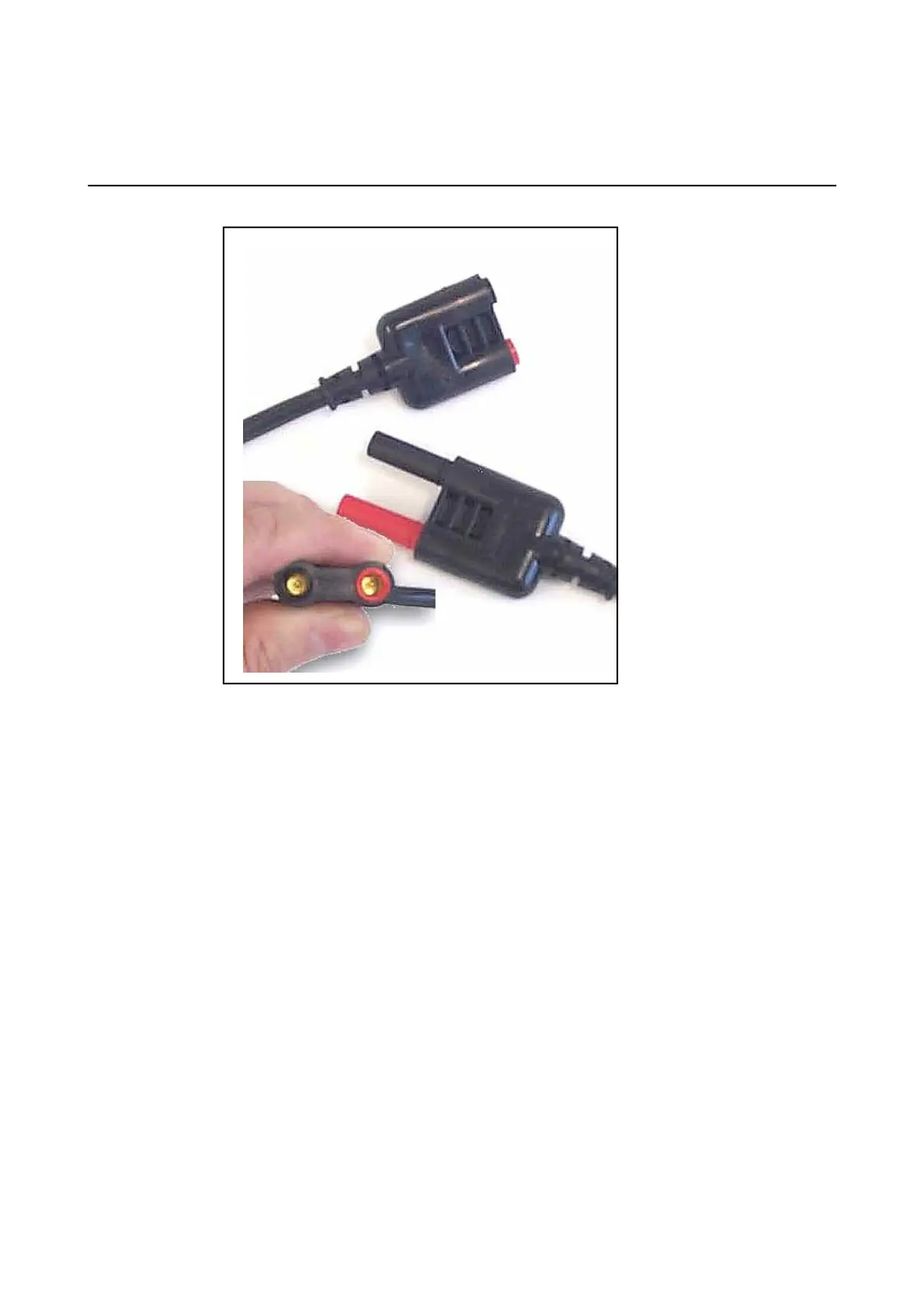

This provides a 4.5m extension of the patient output sockets (4 mm shrouded) terminating in a pair (2) of
DIN 42 802-1 style “TouchProof” sockets that are colour coded to the original sockets.
The moulded twin shrouded 4 mm connector (shown above, centre) should be inserted into the pair of DS7A
Stimulus Output sockets with a Red-to-Red and Black-to-Black mating.
