3. Reading Mode
3.1 Manual Mode
Manual mode is the default reading mode. In manual mode, press the trigger button, and the reading
module will start shooting and reading; within the limited time range of "single reading time", if the
reading is successful, the reading module will output the reading content through the communication
interface and stop reading, if you need to start a new reading, you need to trigger the button again.
If the reading exceeds the single reading time, the shooting and reading will be suspended.
1. Trigger Mode
The trigger condition can be selected in manual mode. The default trigger condition is level trigger,
or edge trigger can also be selected.
• Edge triggering means that the level pulse of the trigger signal is detected, that is, the reading
starts, and the reading ends when the reading is successful or the single reading time condition
is reached
• The level trigger condition means that the level of the trigger signal needs to be maintained
from the beginning of the reading to the end of the reading. When the trigger level is cancelled,
the reading is successful or the reading exceeds the single reading time, the reading ends.
Edge triggering
** level trigger condition
2. Single reading time
The duration of a single reading refers to the longest time allowed to maintain the scanning and
reading attempts after the reading is triggered and the reading is unsuccessful. When this time is
exceeded, the reading state will be exited. The range of single reading time is 100ms～25500ms.

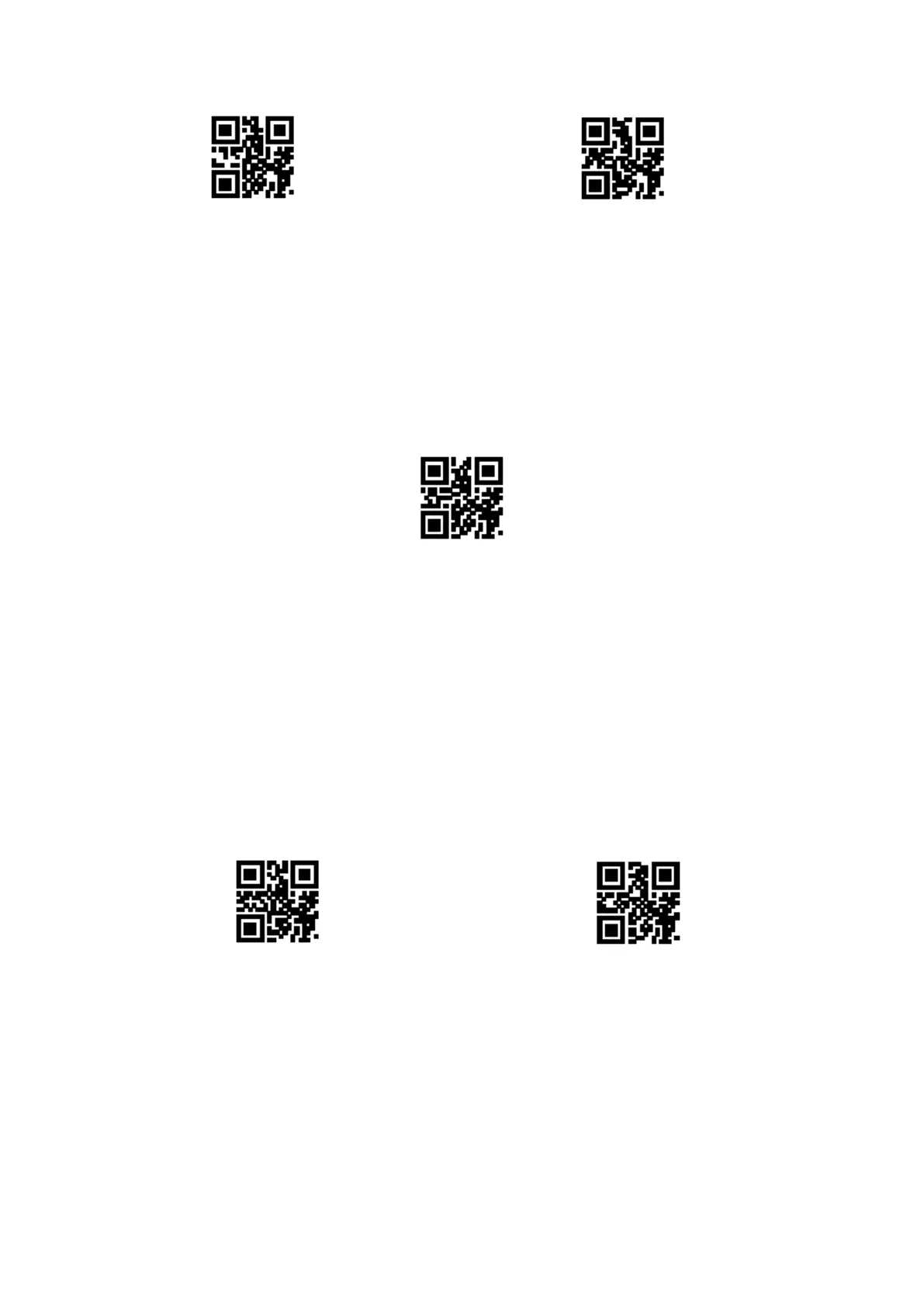

Read the following setting codes to set the duration of a single reading.
