2. HARDWARE OVERVIEW
2.1 Rear Panel
CONNECTOR / BUTTON DESCRIPTION
Reset Default This button is hidden in the pinhole. Press and hold the reset button until the network camera
rebooted. This will reset all parameters, including the IP address to factory default settings.
Power Indicator When the camera is power-supplied, this indicator will be on as red.
Audio Output (DN-16051 only) Support the connection to an audio device, such as a speaker, for voice transmission of the
remote side.
Audio Input (DN-16051 only) Support the connection to an audio device, such as a microphone, for voice transmission of the
local side.
Video Output Connect to the video input connector of your monitor with a video cable (i.e. a RCA line with the
BNC connector, or a coaxial line) for video output.
* The video cable is optional.
LAN Connect the camera to the network with the supplied RJ45 cable.
Power Connector Connect the DC 12V adapter for power supply.
Alarm Connector (DN-16051 only) Support the connection to an alarm device for function scalability.

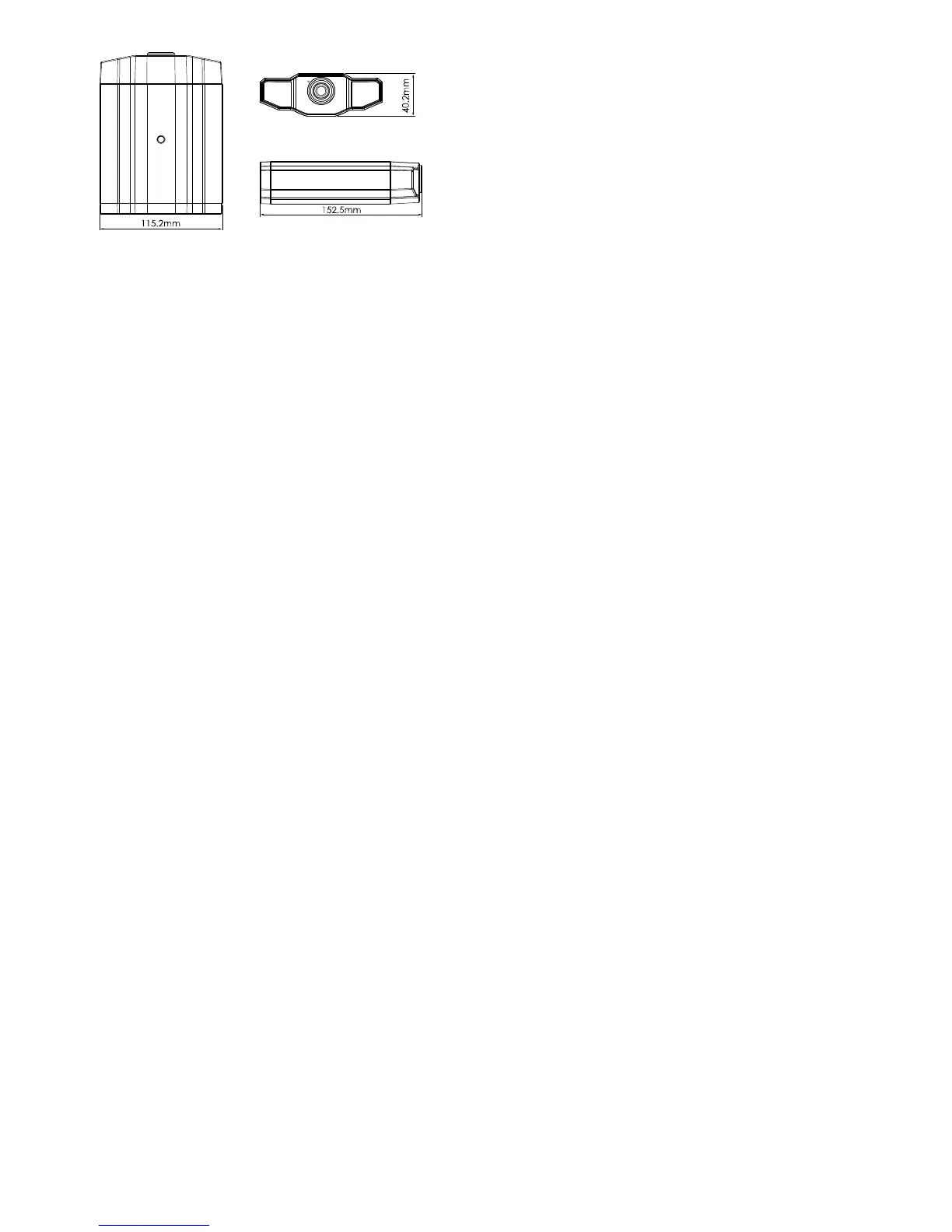

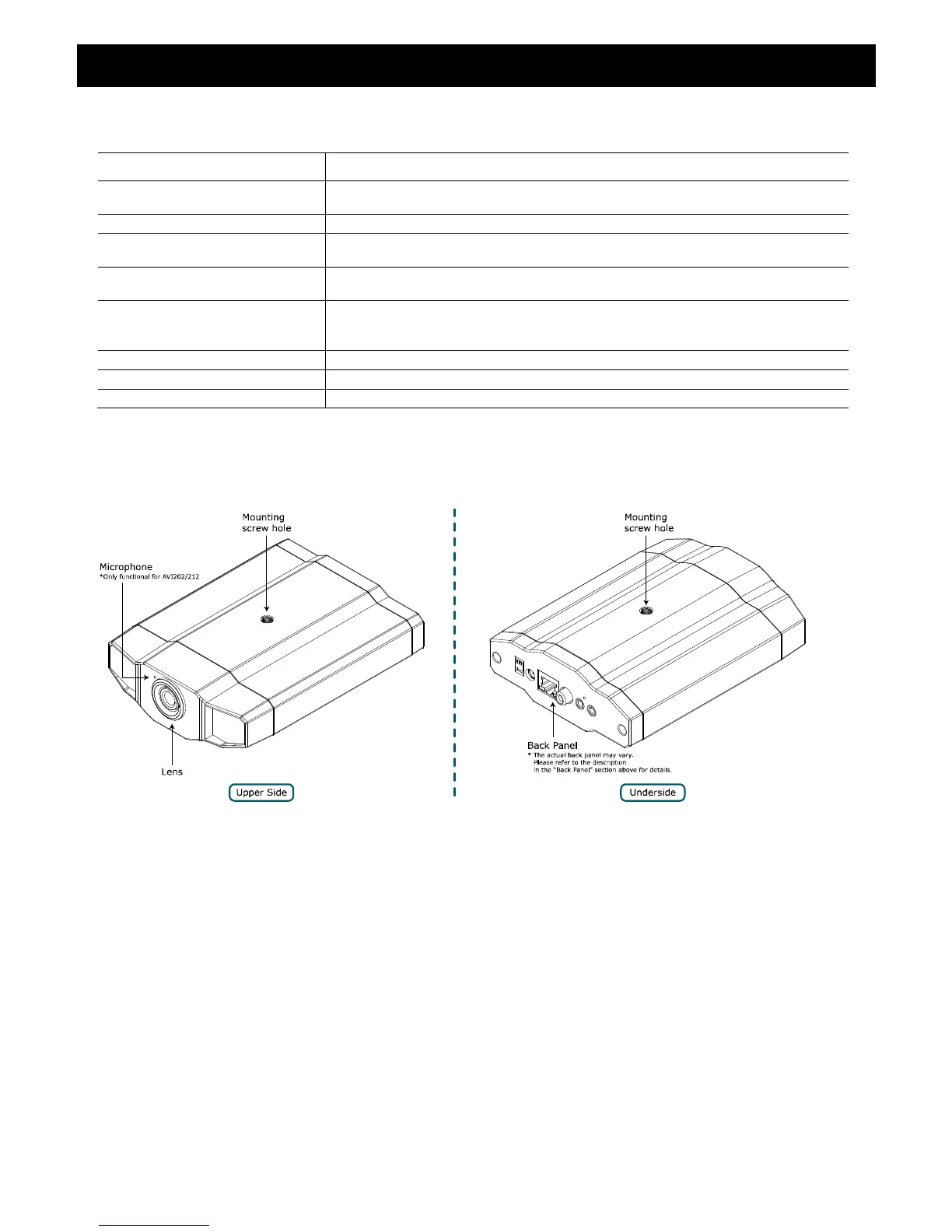

2.2 Upper Side & Underside
