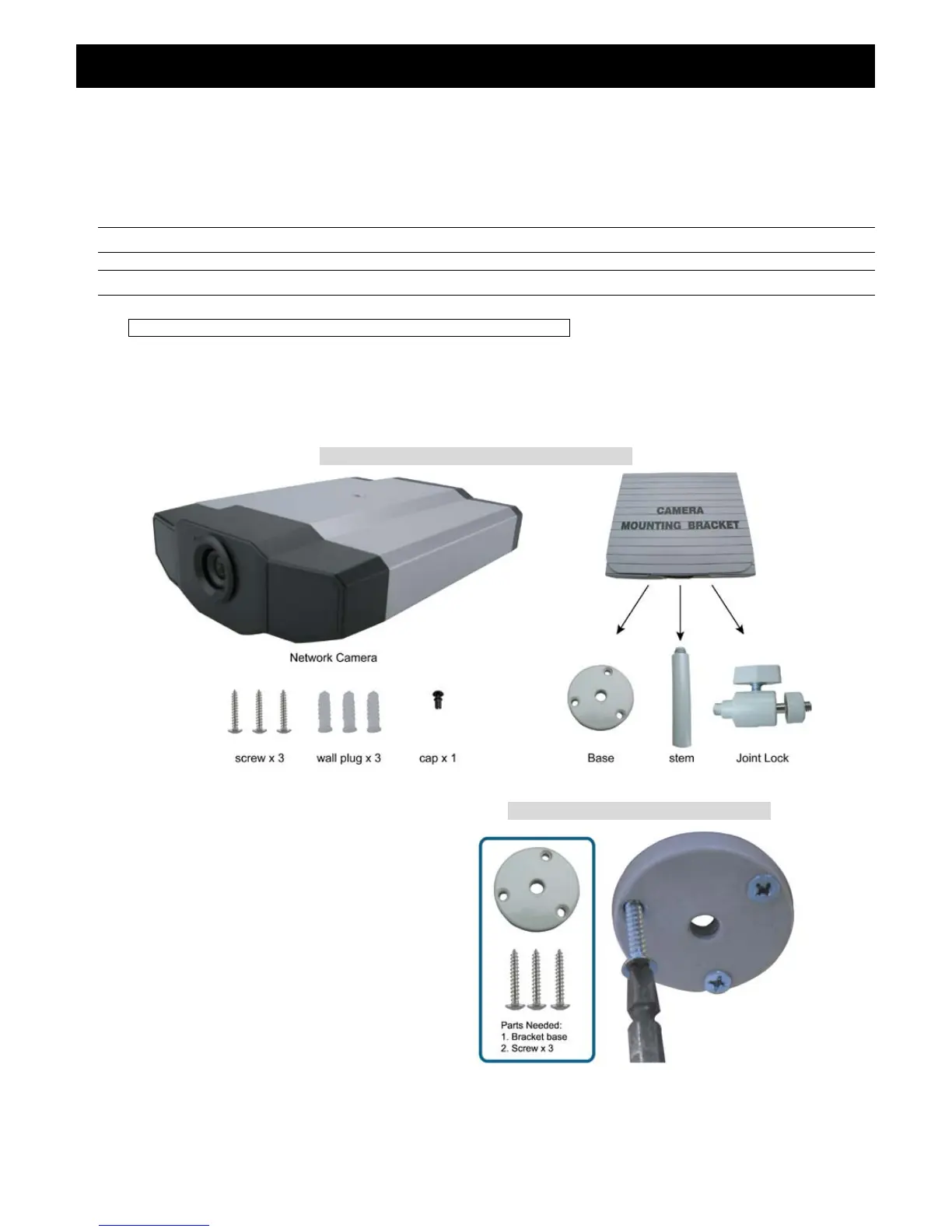

3. Assemble the bracket:

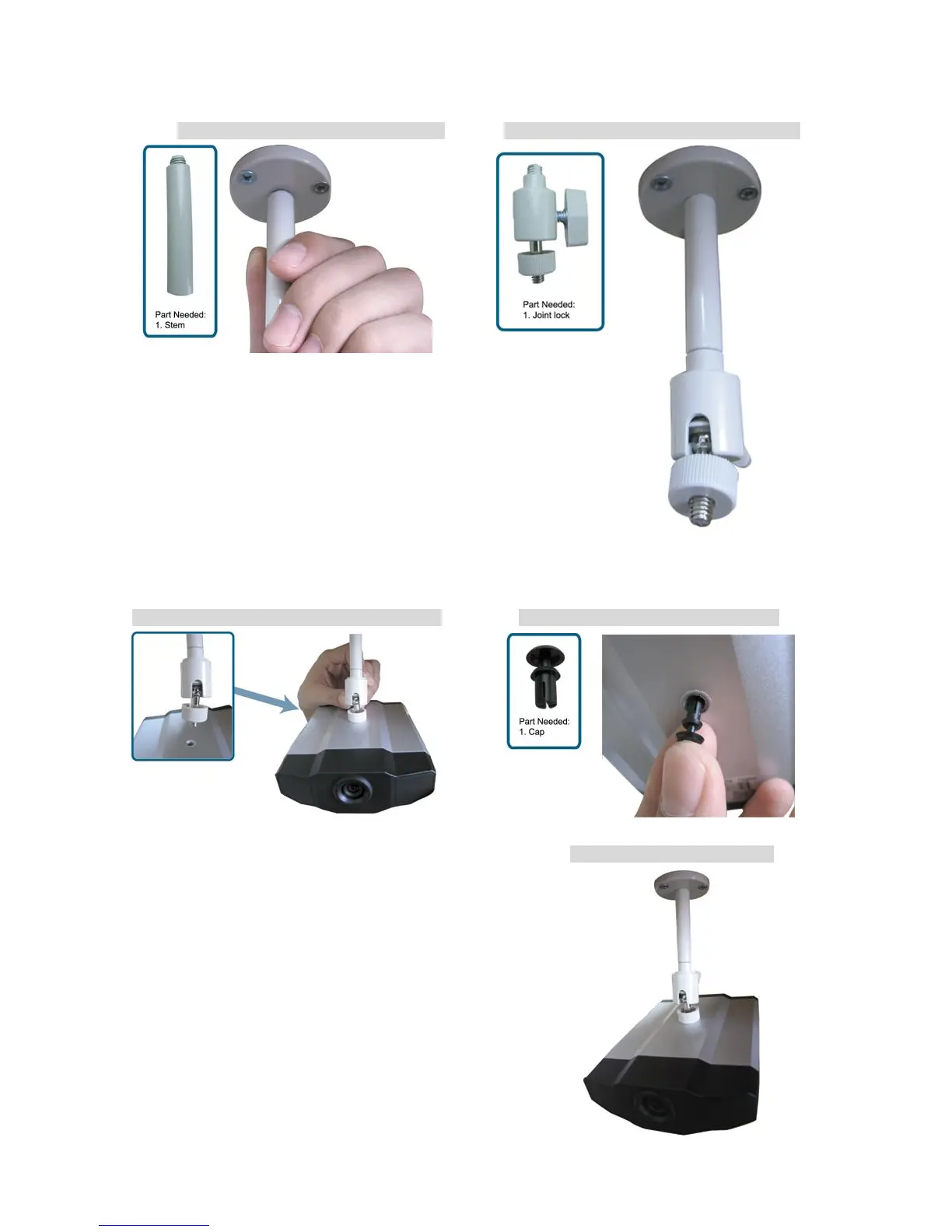

a). Align the stem with the central hole of the base, and rotate it to secure, as shown in Figure 3.
b). Align the joint lock with the stem, and rotate it to secure, as shown in Figure 4.
Figure 3: Connect the stem to the base Figure 4: Connect the joint lock to the stem
4. Connect the camera to the bracket.
Ceiling-mounted:
thread of the joint lock, and rotate the camera to
secure, as shown in Figure 4.
Desktop:
With the upper side of the ca
mounting screw hole on the underside with the screw
thread of the joint lock, and rotate the camera to
secure.
Figure 4: Connect the camera to the bracket Figure 5: Insert the cap to the camera
5. Insert the cap to the other mounting screw hole of
the camera.
Ceiling-mounted:
Insert the cap to the mounting screw hole on the
underside of the camera, as shown in Figure 5.
Desktop:
Insert the cap to the mounting screw hole on the
upper side of the camera.
Figure 6: Finish the installation
6. Adjust the viewing angle of the camera, and fasten
the joint lock to fix the angle. The installation is
completed, as shown in Figure 6.
