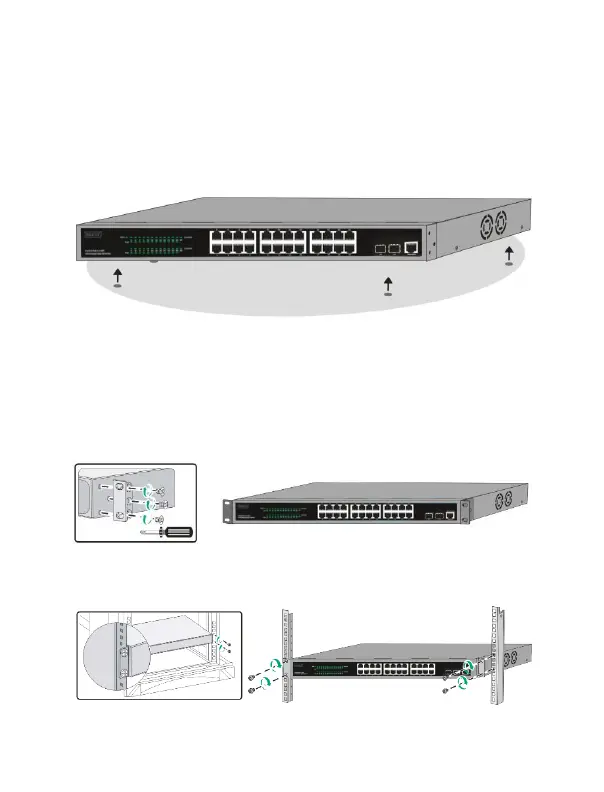

6.2 Desktop or Shelf Installation
When installing the switch on a desktop or shelf, the rubber feet
included with the device must be attached on the bottom at each
corner of the device's base. Allow enough ventilation space between
the device and the objects around it.
6.3 Rack Installation
The switch can be mounted in an EIA standard size 19-inch rack, which
can be placed in a wiring closet with other equipment. To install,
attach the mounting brackets to the switch's side panels (one on each
side) and secure them with the screws provided (please note that
these brackets are not designed for palm size switches).
Then, use the screws provided with the equipment rack to mount the
switch in the rack.
