14
7.3 Connecting to the Switch
You will need the following equipment to begin the web configuration
of your device:
1. PC with a RJ-45 Ethernet connection
2. Standard Ethernet cable

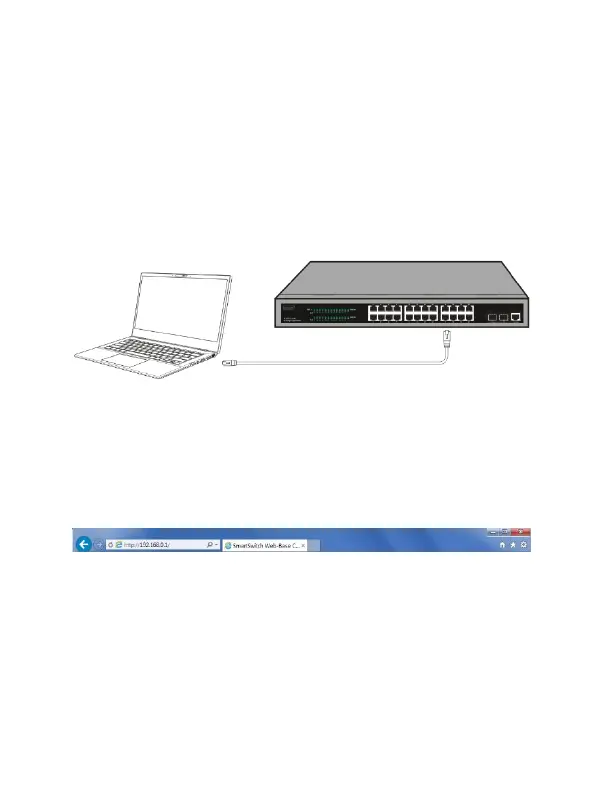

Connect the Ethernet cable to any of the ports on the front panel of
the switch and to the Ethernet port on the PC.
Connected Ethernet cable
7.4 Login Web-based Management
To access the GUI of the switch, open a browser and type the default
management address http://192.168.0.1 in the address field of the
browser, then press the Enter key.
When the following logon dialog box appears, enter the password
then click OK. By default, the username is admin and the password is
admin.
