Components DS-12860

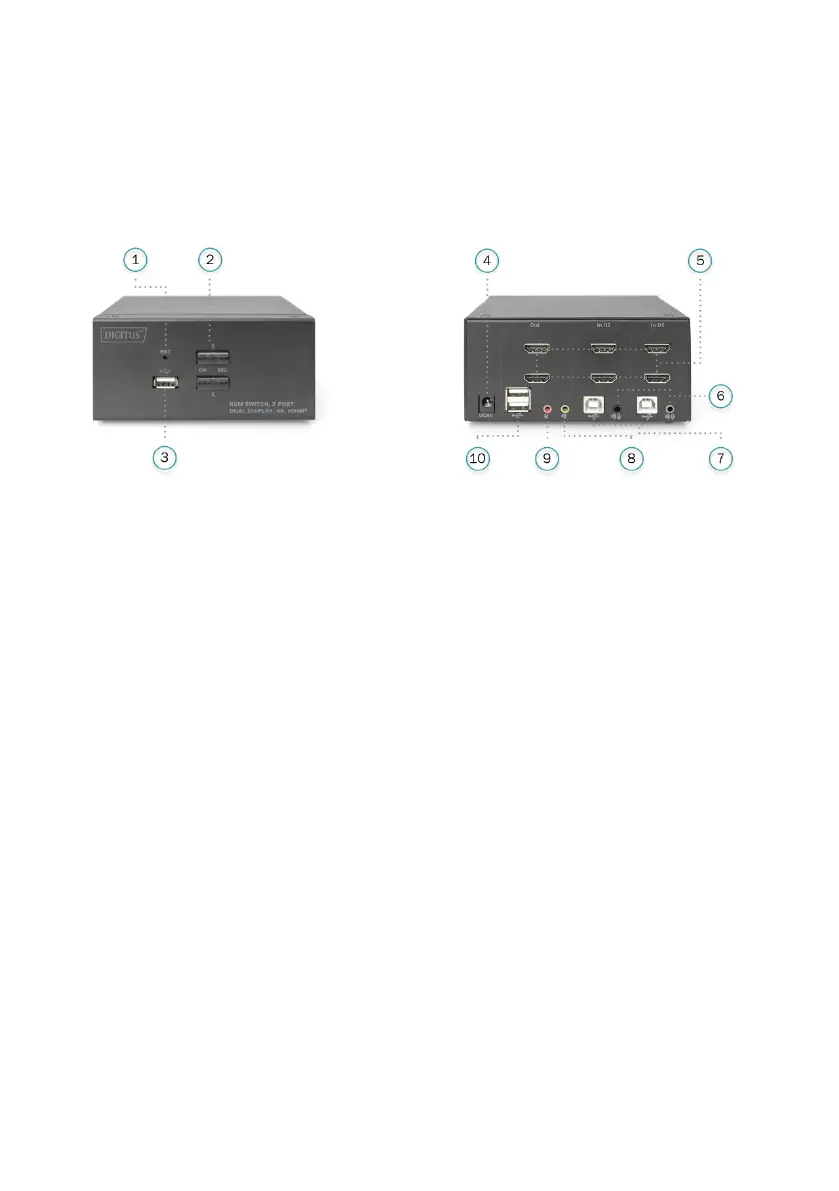

Front view Rear view
1. Power Indicator
2. Power Button
3. Front USB interface, you can
connect mouse and keyboard,
U disk storage device and printer.
4. Power 9V DC=, optional
5. For HDMI video interface
6. For the integrated audio
and MIC interface,
connect to KVM cable
7. For the computerside B type
USB connection interface
8. Local audio output interface
9. Output interface for local MIC
10. Local USB keyboard and
mouse input interface
