Digitus DS-55100 User Manual

５
5.0 Connection and Operation
1) Connect the HDMI input source (such as HD-DVD, PS3, STB ) to the Sender.
2) Connect one piece of CAT-5e/6 cable to both of the output of the Sender and
input of the Receiver.
3) Connect the output of Receiver to display ( such as HD-LCD、HD-DLP)
4) Plug one power supply into the Sender and the other into the Receiver.
Attention: Insert / Extract cable gently.

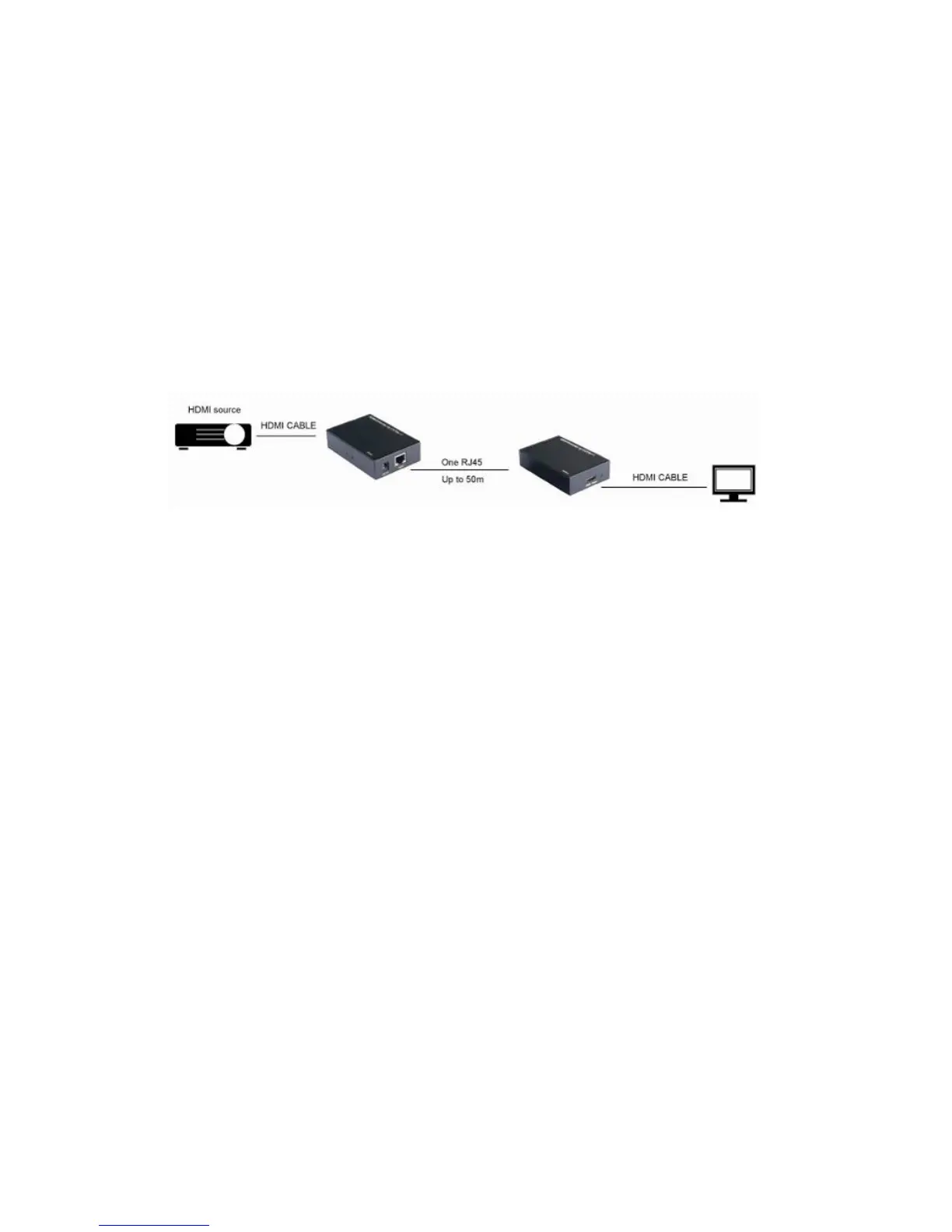

5.1 CONNECTION DIAGRAM
P/N0007

Digitus DS-55100 Specifications

General

Brand	Digitus
Model	DS-55100
Category	Extender
Language	English
