ED-2000plus Introduction
The ED-2000plus dynamometer is an electronic portable force or weight
measurement instrument.
The ED-2000plus is available with low-power radio communications. This
option permits wireless communication between the ED-2000plus and an
HR-2000 handheld remote display. The ED-2000plus system offers additional
flexibility by the ability to have several (up to 255) devices controlled by a
single HR-2000 display. This is called a multidrop system.
Data can be extracted from either the ED-2000plus or the HR-2000. This data
can be sent to a computer by pressing the DATA SEND key or requested by
the computer by sending an ENQUIRE code.
This guide describes the operation of the ED-2000plus series of Dillon elec-
tronic dynamometers and the procedures for configuring the device to your
specific needs.
The display consists of six 7-segment digits and six annunciators which
appear when appropriate. See Figure 1 below.
There are three modes of operation:
• Normal operating mode, which covers the daily use of the device.
• Device information mode, allows information about the device to be
viewed but not edited. Information that can be viewed includes serial
number, range, date of last calibration, etc.
• Configuration mode, which enables the user to configure the device.

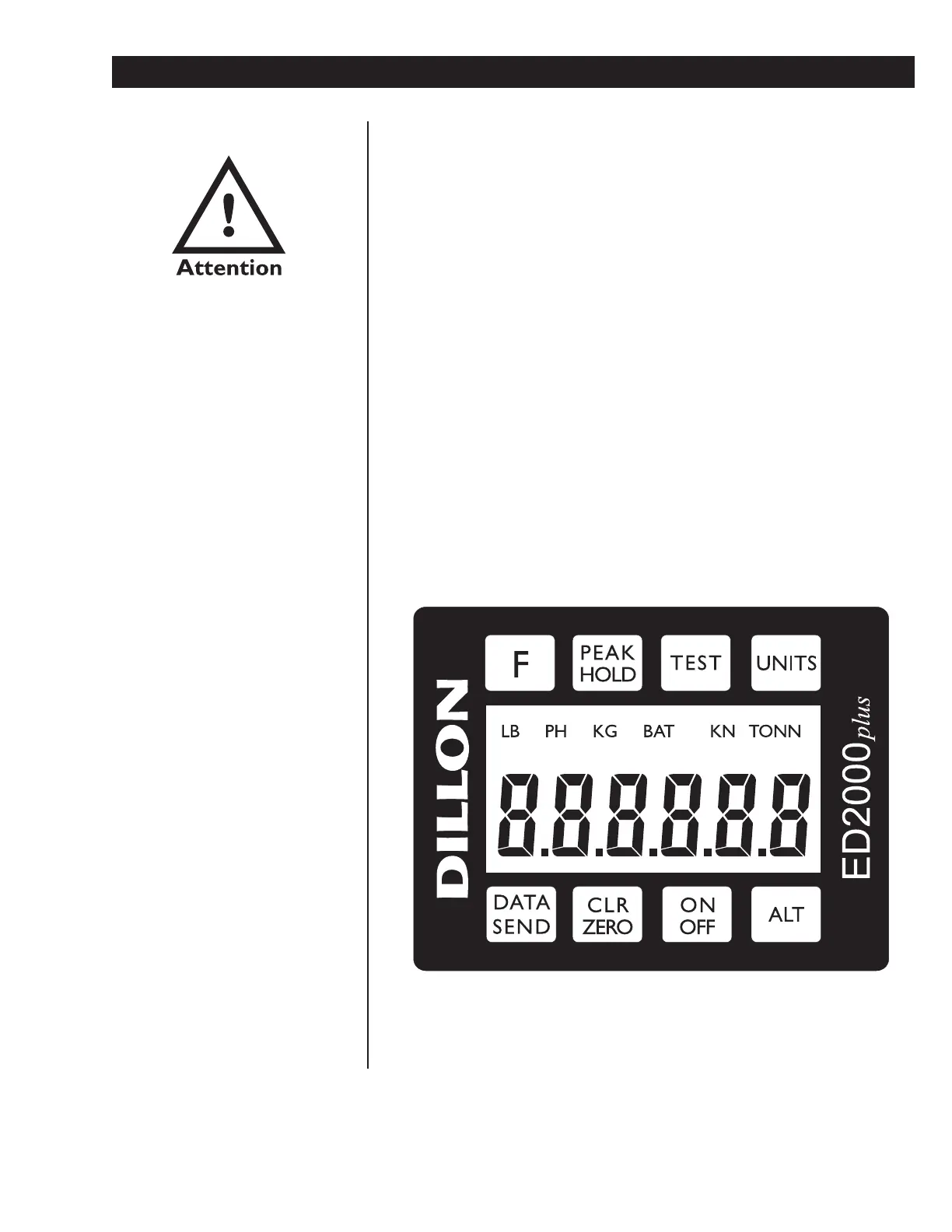

Figure 1
Electronic Dynamometer Front Panel
The ED-2000plus is not suit-
able for use in magnetic
environments.
