6
3. Installation
DKC500DC sliding gate opener is applicable to gate weight less than 500kg, and length
of the sliding gate less than 5m. The drive mode adopts the rack and gear transmission.
This gate opener must be installed inside the wall or courtyard for protection.

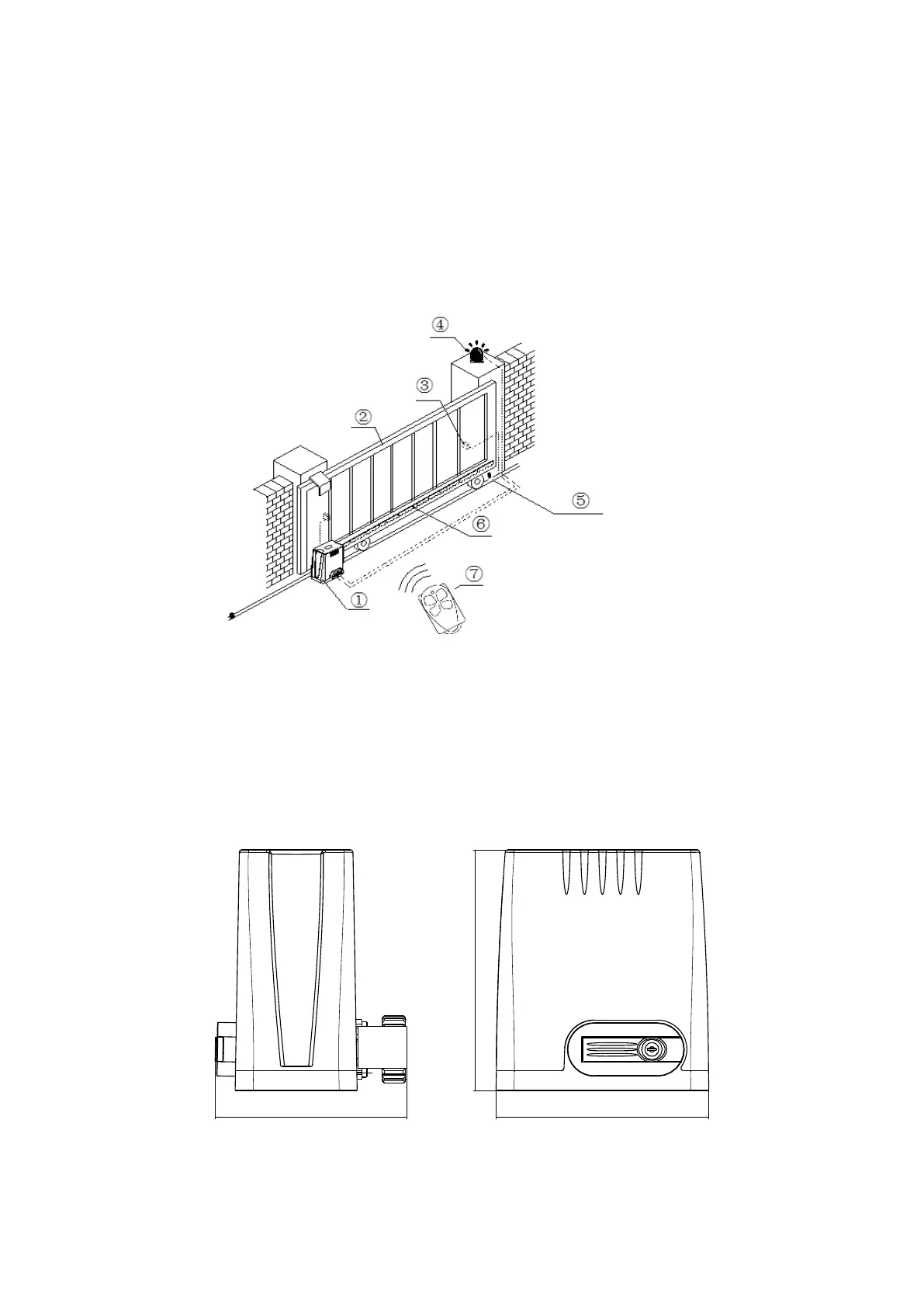

3.1 Installation scheme
Figure 1
1. Gate opener; 2. Gate; 3. Infrared sensor
4. Alarm lamp (optional); 5. Gear rack; 6. Remote control.
3.2 Size of gate opener and accessories
3.2.1 Size of gate opener
Figure 2
