15

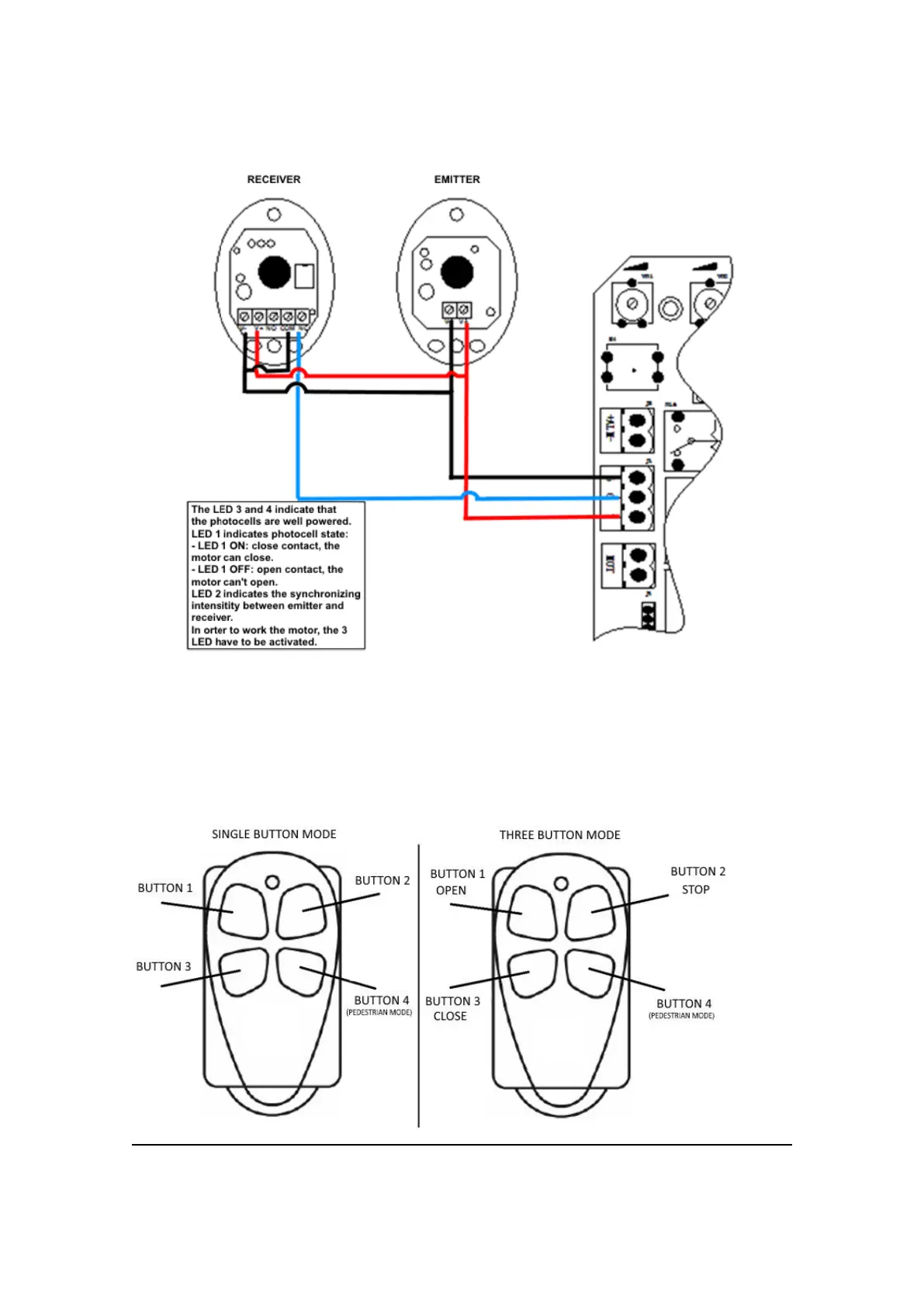

If connect the infrared sensor, please remove the short connection between 5 and 6 on
the J1 terminal.
Figure 13
3.3.8 Remote control operation
