Ascari MA12 -p. 38 -

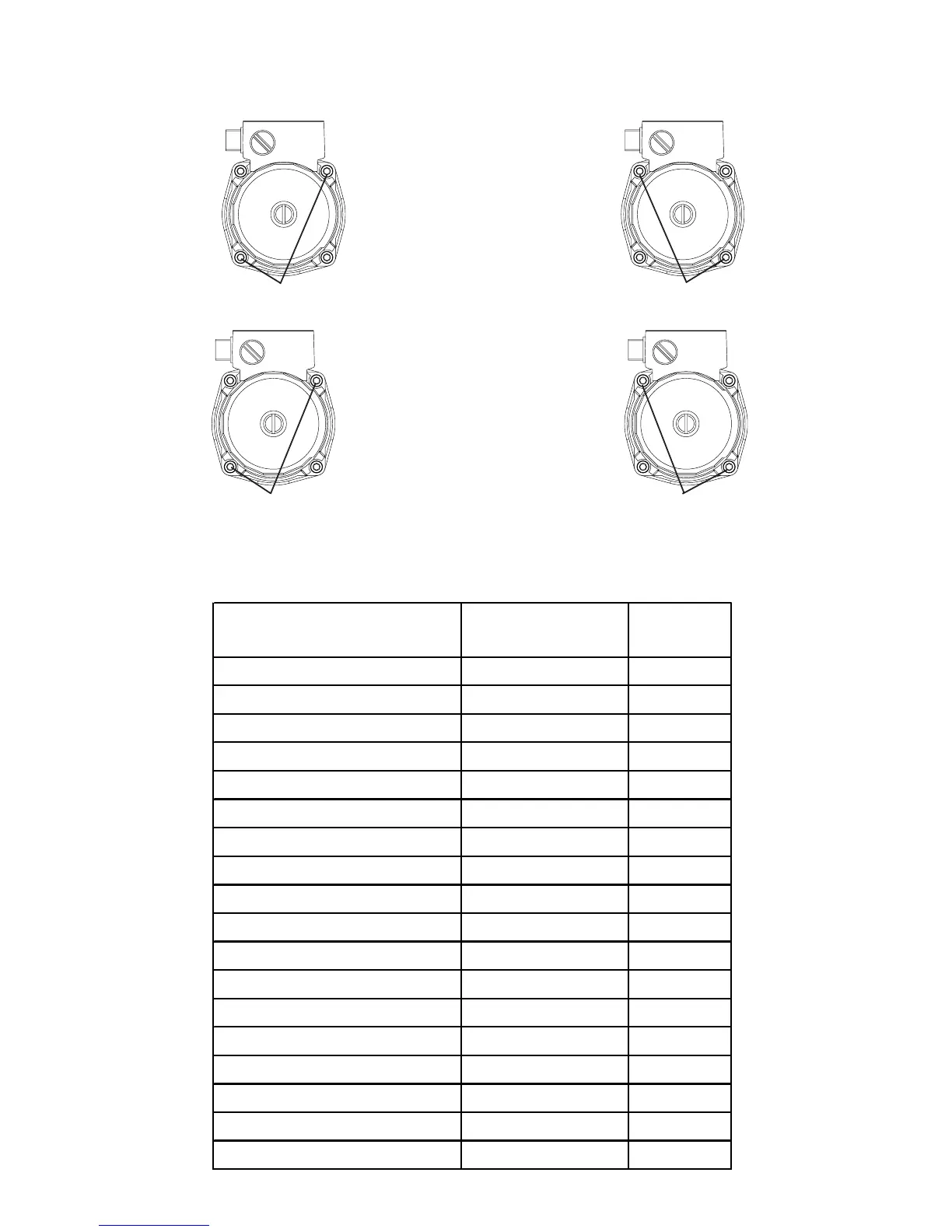

Fastening the pump
If the pump is producing some abnormal noise, slightly unscrew without creating leackage, then screw
again following instructions below.
1 - screw two opposite screws with a stroke of 3
Nm.
2 - screw the other two opposite screws with a
stroke of 3 Nm
3 - screw the first two opposite screws with a
stroke of 5 Nm.
4 - screw the last two opposite screws with a
stroke of 5 Nm.
12 MA
230 V mono
Side casing
B4484737 1
Front casing
B4484730 1
Control panel
B1758741 1
Pump
B1243544 1
Klixon 60°
B1243400 1
Klixon 100°
B1243418 1
3bar relief valve
B1239103 1
8L expansion vessel
B1472534 1
Water sensor
B1243546 1
Outside sensor (option)
B1243586 1
6kW heating element
B1243558 2
Heating element gasket
B1657044 3
20A tetrapole switch
B1243561 4
Fuse holder
B1243146 1
4A fuse size 5 x 20
B1243147 1
Display
B1943599 1
C1 electronic card
B1943600 1
Temperature display
B1243534 1
SPARE PARTS LIST
Designation Reference
0105276
