Dimplex BF45DXP User Guide

To access the light bulb area
1. Open steel curtain (remove glass doors if applicable).
2. Remove two screws on log bracket and set aside. (FIGURE 3)
3. Pull front edge of plastic ember bed or plastic grate up and forward until rear tab
releases from the ledge located at the bottom of the mirror.
(FIGURE 4)
Note: Log set fits tightly into firebox, some force may be necessary to remove.
4. Set logset in front of firebox.
5. Disconnect the logset LED wire harness from unit. (FIGURE 5)
6. Examine the bulbs to determine which bulbs require replacement.
7. Unscrew bulbs counter clockwise.
8. Insert new bulbs.
9. Re-connect the logset LED wire harness to the unit.
10. Replace the log by inserting the rear tab of the logset under the back ledge of the
fireplace and push down on the front edge of the logset until it snaps into place.
(FIGURE 4)
11. Replace log grate using two screws previously removed.

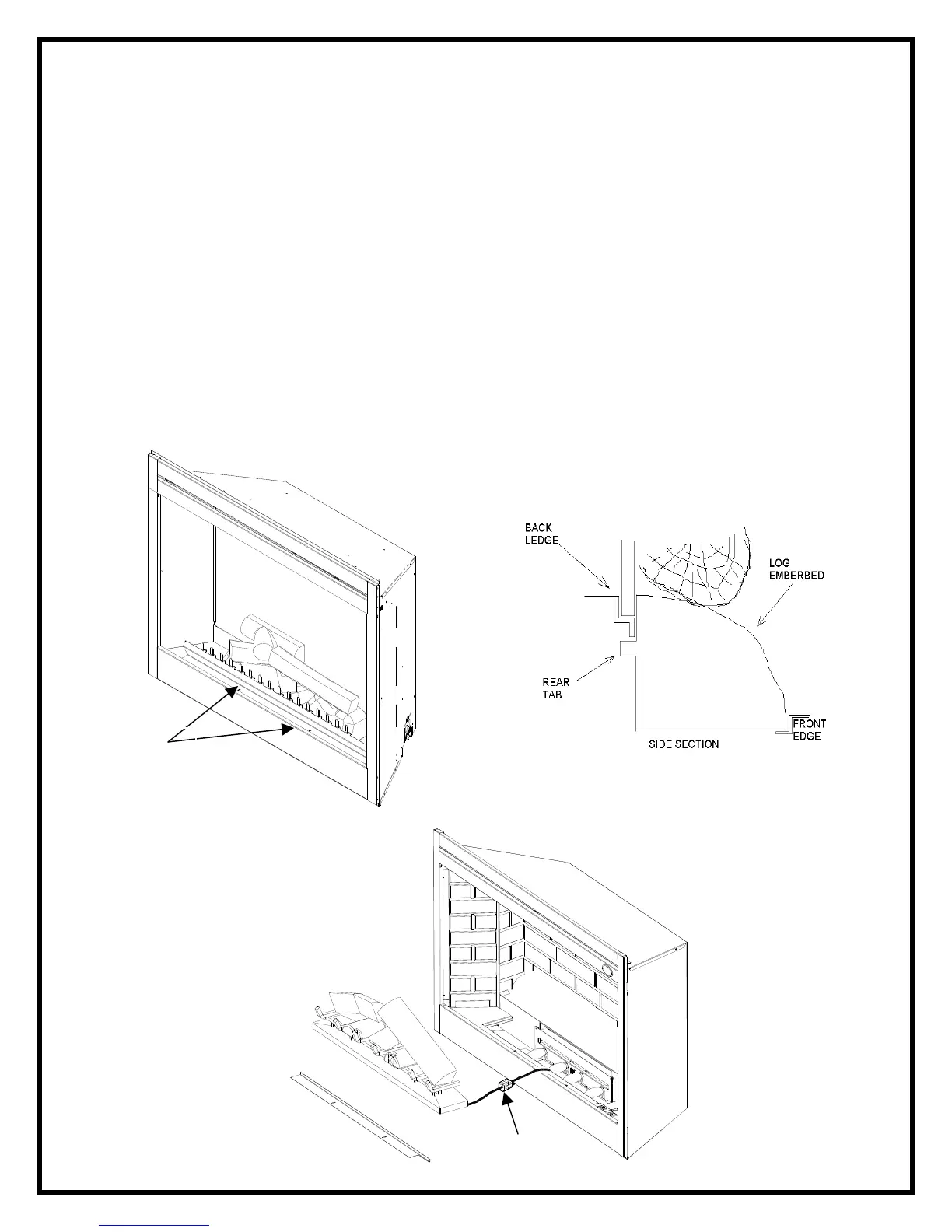

Screws
Figure 3
Figure 4
6
Figure 5
LED wire harness
