Dimplex CS3311 Parts And Service Manual

10
CS3311
If unit was operating prior to servicing allow at least 10 minutes for light bulbs and
heating element to cool off to avoid accidental burning of skin.
Disconnect power before attempting any maintenance or cleaning to reduce the risk of
electric shock or damage to persons.

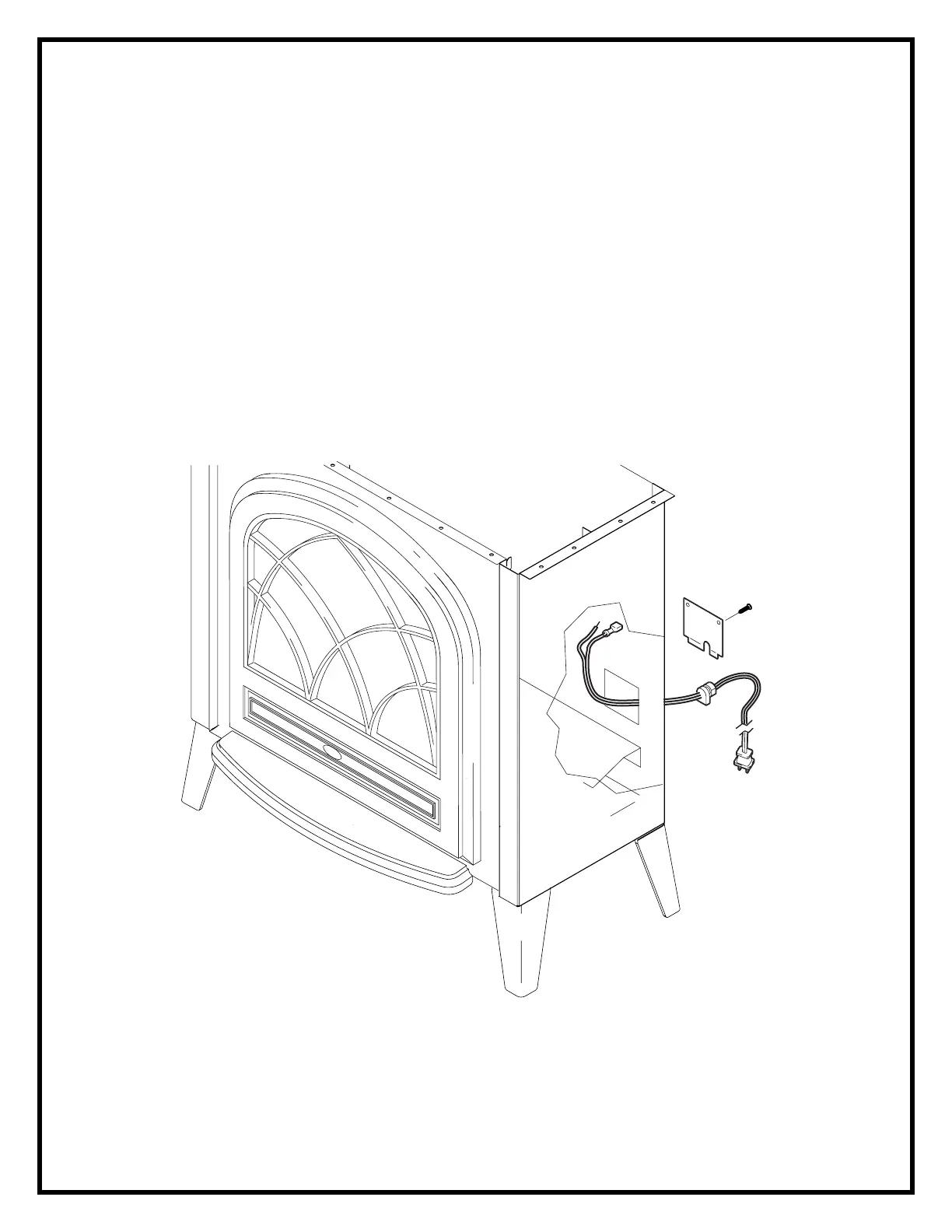

TO REPLACE THE POWER CORD
1. Remove the 12 fastening screws on the top panel and remove the top of the stove.
2. Lift glass out and store in a safe place.
3. Disconnect the 2 power cord leads noting their original locations.
4. Remove the 2 power cord retainer screws and remove the power cord.
5. Reassemble in the reverse order as above

Dimplex CS3311 Specifications

General

Brand	Dimplex
Model	CS3311
Category	Stove
Language	English
