If unit was operating prior to servicing allow at least 10 minutes for light bulbs and
heating element to cool off to avoid accidental burning of skin.
Disconnect power before attempting any maintenance or cleaning to reduce the risk of
electric shock or damage to persons.

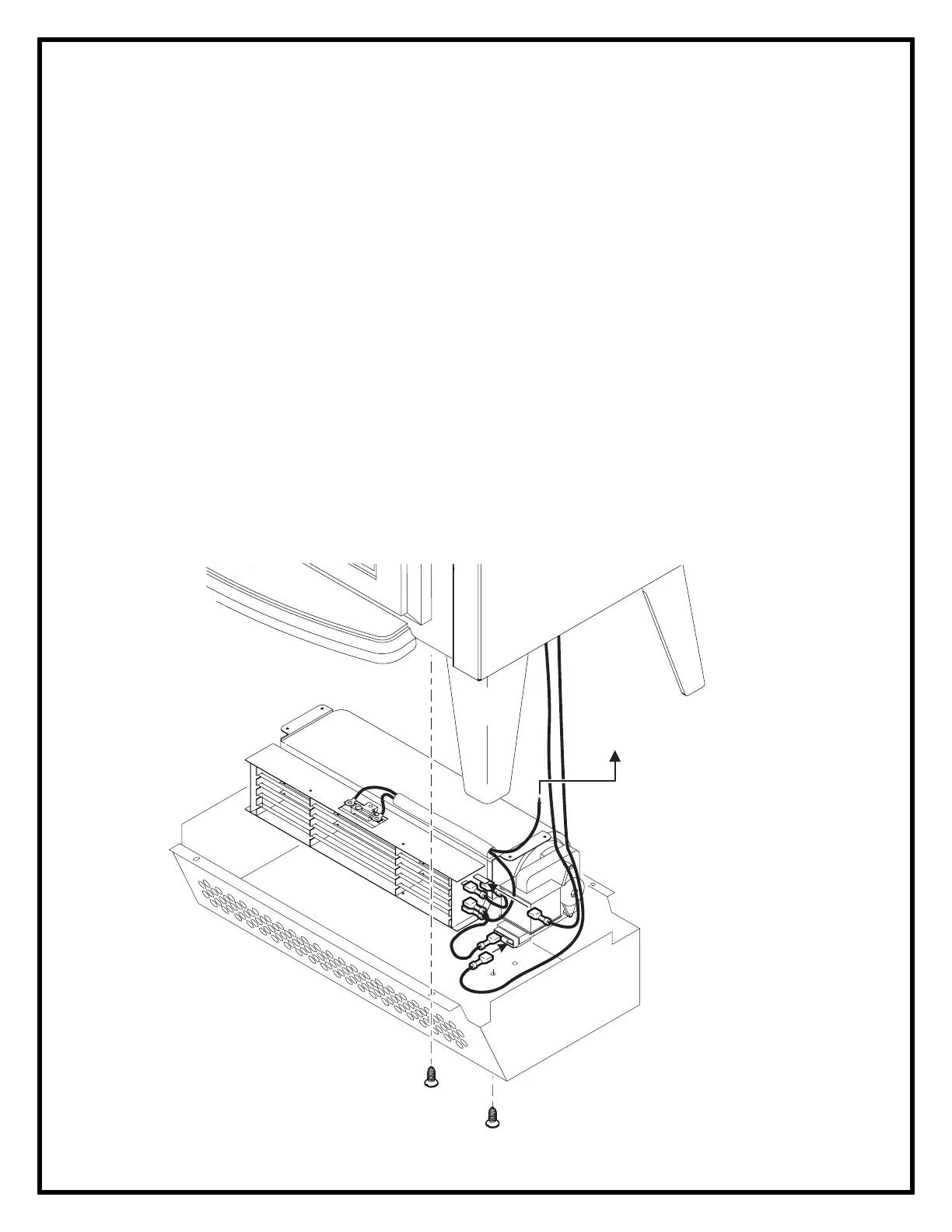

TO REPLACE HEATER ASSEMBLY
1. Turn the stove over and place it top down.
2. Remove the bottom heater assembly cover being careful not to damage any of the
wiring.
3. Remove the 4 heater retaining screws from the bottom of the heater assembly cover
and move the heater to gain access to the heater connections being careful not to
damage any of the wiring.
4. Disconnect the 2 heater switch leads from the heater.
5. Disconnect the thermal cut-out wire from the terminal block.
6. Remove the 2 mounting brackets from the bottom of the old heater and install them
on the new heater.
7. Reassemble in the reverse order as above.
TO TERMINAL BLOCK
To Next Page
