Dimplex CS3311 Parts And Service Manual

8
CS3311
If unit was operating prior to servicing allow at least 10 minutes for light bulbs and
heating element to cool off to avoid accidental burning of skin.
Disconnect power before attempting any maintenance or cleaning to reduce the risk of
electric shock or damage to persons.

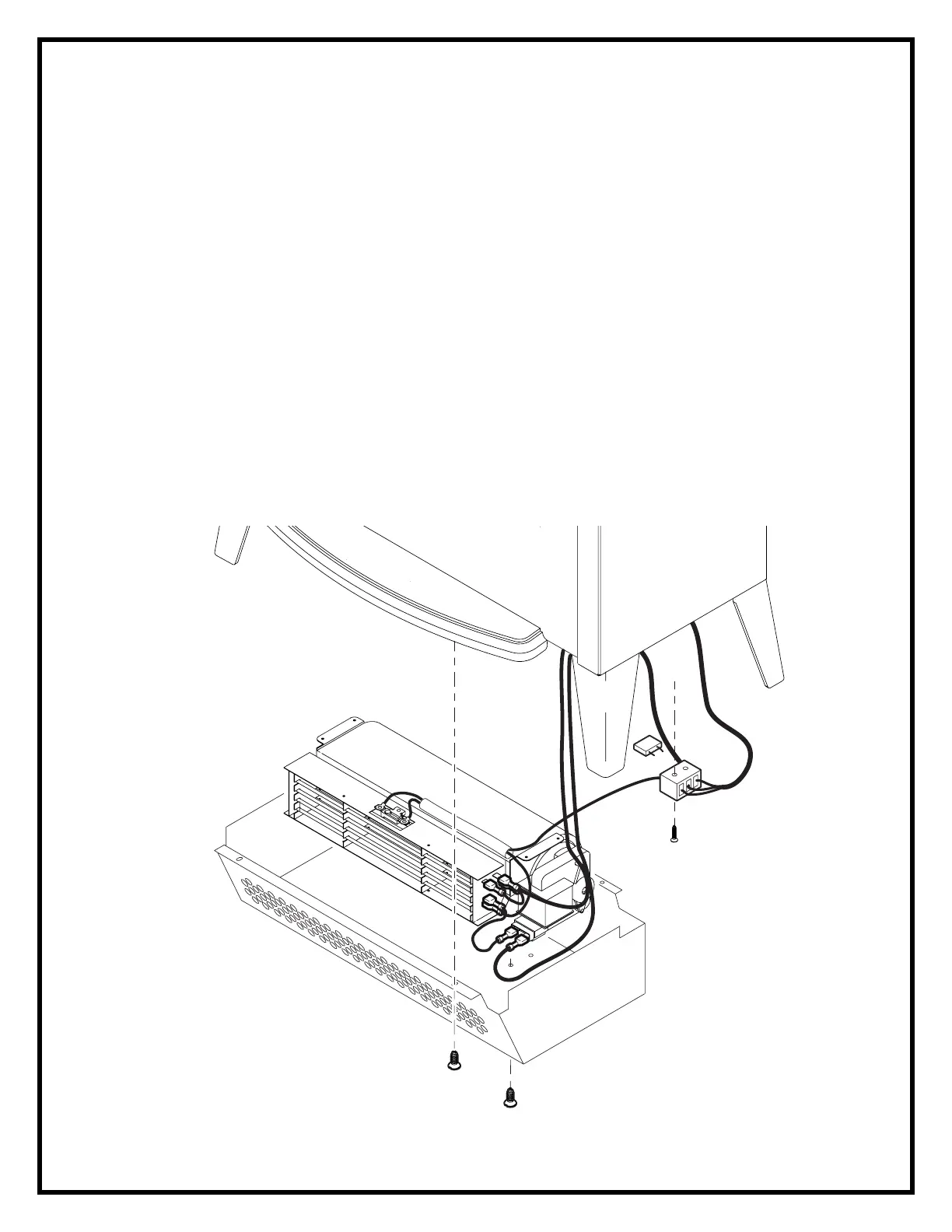

TO REPLACE TERMINAL BLOCK
1. Lay the stove on its back with the front window facing upward.
2. Remove the bottom heater assembly cover being careful not to damage any of the
wiring and lay it on the floor.
3. Loosen the connections on the terminal block and remove the wires noting their original
locations.
4. Remove the capacitor from the terminal block
5. Using pliers to hold the nuts on the inside of the stove, remove the terminal block
mounting screws.
6. Reassemble in the reverse order as above.
