Dimplex DF2305 - Exploded Parts Diagram; Replacement Parts

5

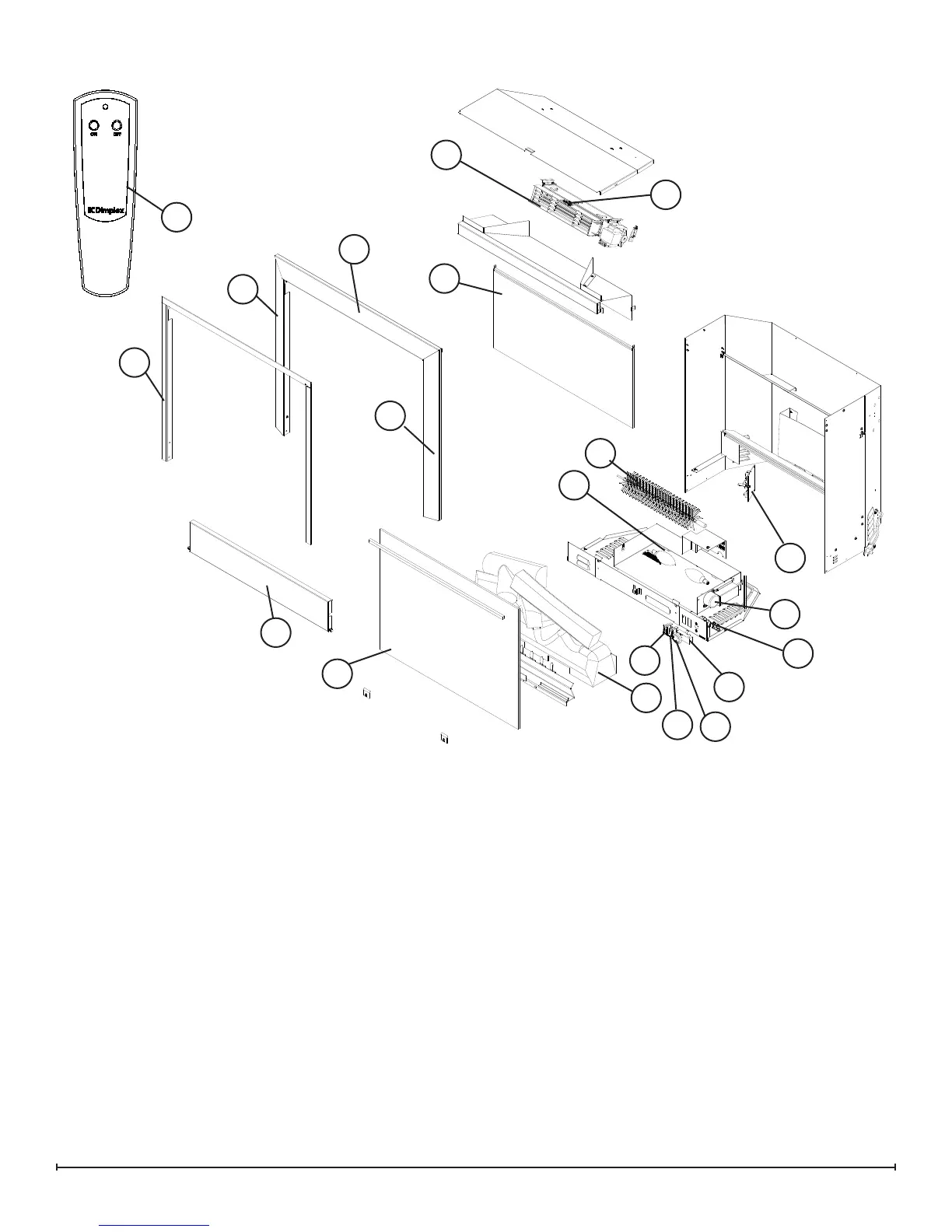

EXPLODED PARTS DIAGRAM
6
18
2
3
4
5
22
10
13
7
12
15
11
1
16
14
REPLACEMENT PARTS
1. ................10438200700RP
2. .....................2000220100RP
Heater Assembly (with cutout)3. . . . . . . .2200490800RP
Thermostat4. . . . . . . . . . . . . . . . . . . . . . 2300150100RP*
Cutout5. ..........................2300270100RP
6. . . . . . . . . . . . . . . . . . . . .2800070200RP
Capacitor7. ........................3200030100RP
8. ....................4000070100RP
Power Cord9. ......................4100090104RP
Lampholder with leads10. . . . . . . . . . . . . .4200121000RP
11. . . . . . . . . . . . . . . . . . . . . . .5900340100RP
12. . . . . . . . . . . .5900350100RP
13. ......................5900380100RP
Remote Control14. ...................3000370500RP
Remote Control Receiver15. . . . . . . . . . . .3000380200RP
Control Knob16. .....................8800000300RP
17. ..........8800090100RP
18. ..................2800071100RP
DF2305 Trim Parts
19. .................1010660159RP
20. . . . . . . . . . . . . . . .1010660259RP
Top Trim21. .....................1010670159RP
Control Cover22. .................1010620159RP
DF2307SS (Stainless Steel) Trim Parts
 . . . . . . . . . . . . . . . .1010660380RP
 . . . . . . . . . . . . . . .1010660480RP
21. Top Trim .....................1010670280RP
22. Control Cover . . . . . . . . . . . . . . . .1010620280RP
23. DFB2306 Trim Parts. . . . . . . . . . . . . . 9600440159RP
23. DFS2308 (Stainless Steel) Trim . . . . 9600440180RP
DFB4047  . . . . . . . . . . 6900080100RP
22. Control Cover . . . . . . . . . . . .1010620159RP
20
21
19
23
