9
WARNING: Ensure wires do not come in contact with
moving parts by securing wires in wiring tie wraps.
10. Reassemble in the reverse order as above.
POWER CORD REPLACEMENT
Tools Required: Phillips Head Screwdriver
CAUTION: If unit was operating prior to servicing allow
at least 10 minutes for lights, heating elements and top
panel to cool off to avoid accidental burning of skin.
WARNING: Disconnect power before attempting any
maintenance to reduce the risk of electric shock or damage
to persons.
1. Unplug the unit from power outlet.
2. Remove the front glass and set aside in a safe place.
3. Remove the rebox from the back of the mantel by
removing the retaining screws which secure the rebox
brackets to the mantel.
4. Remove the three screws along the back of the unit,
the two on either side along the top edge and the one
at the top of the glass retaining bracket on both sides.
(Figure 3)
5. Lay the Compact Fireplace on its back.
6. Gently open the top panel, laying it on the work sur-
face so that all of the components can easily be seen.
(Figure 4)
7. Locate the power cord and disconnect the wiring con-
nections noting their original locations.
8. With needle nose pliers, grasp the power cord strain
relief grommet from inside the back of the bottom panel
and push while twisting to remove.
9. Install the new power cord.
10. Reassemble in the reverse order as above.
FLICKER MOTOR & FLICKER ROD
REPLACEMENT
Tools Required: Phillips Head Screwdriver
CAUTION: If unit was operating prior to servicing allow
at least 10 minutes for lights, heating elements and top
panel to cool off to avoid accidental burning of skin.
WARNING: Disconnect power before attempting any
maintenance to reduce the risk of electric shock or damage
to persons.
1. Unplug the unit from power outlet.
2. Remove the front glass and set aside in a safe place.
3. Remove the rebox from the back of the mantel by
removing the retaining screws which secure the rebox
brackets to the mantel.
4. Remove the three screws along the back of the unit,
the two on either side along the bottom edge. (Figure 5)
5. Lay the Compact Fireplace on its back.
6. Gently open the bottom panel, laying it on the work sur-
face so that all of the components can easily be seen.
(Figure 6)
7. Locate the icker motor and icker rod.
8. Locate and disconnect the 3 motor assembly wires go-
ing to the terminal block. (Figure 6)
9. Remove the 2 motor mounting screws.
10. Separate the motor from the icker connector and
remove.
11. Slide the icker rod out of the snap-in bushing and
remove.
12. Reassemble in the reverse order as above.

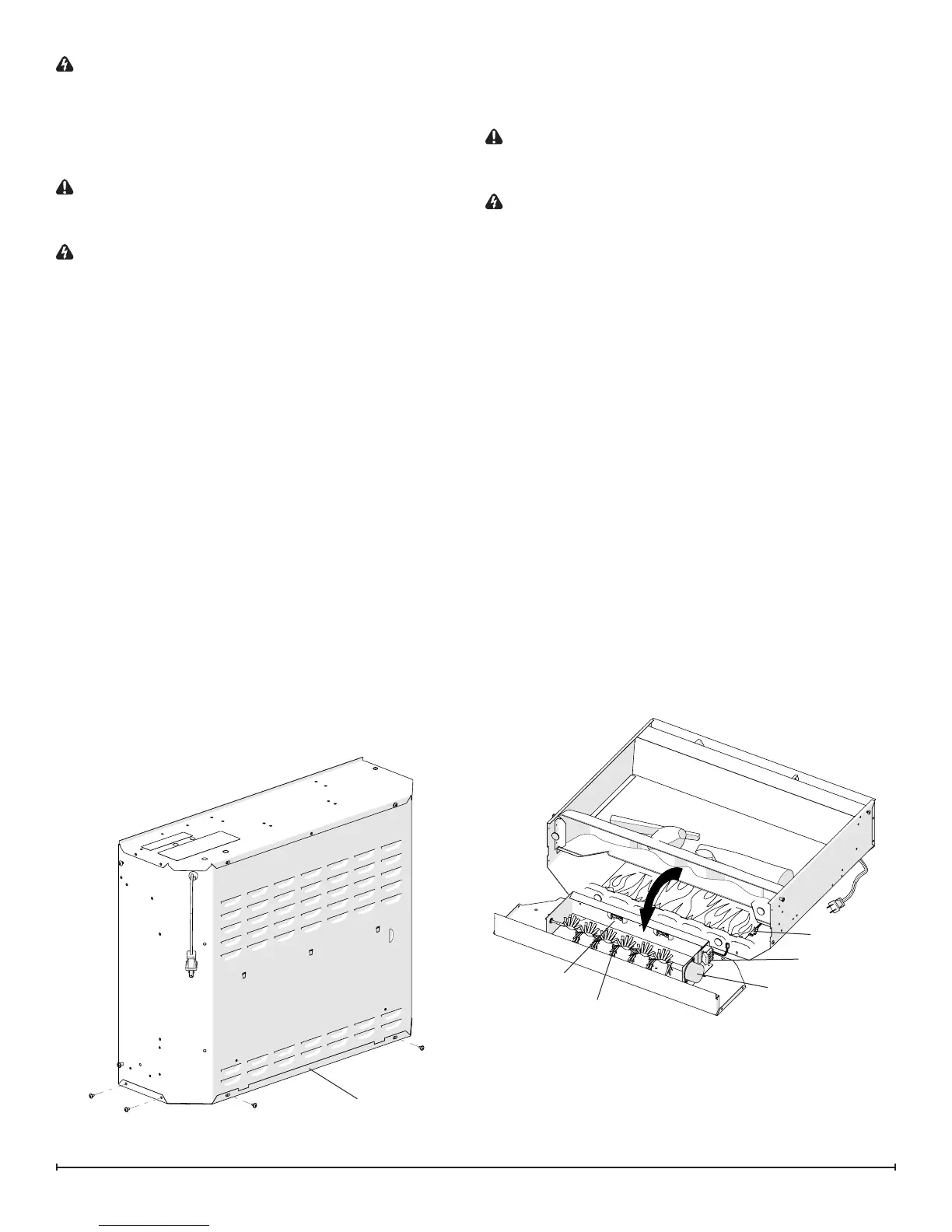

Figure 5
Bottom Panel
Flicker Rod
Flicker
Motor
Terminal
Block
Figure 6
LED Lights
Thermistor
To Next Page
