Fireplace Installation
⑨ Place all connectors inside
the unit and secure the junction
box cover to unit. Ensure that the
cable clamp grips only the jacket
of service cable.
CAUTION: Clearance for
air circulation beneath the
replace insert is provided by
two (2) rubber feet.
Do not install the replace
insert directly on carpet or
similar surfaces which may
restrict air circulation.
If installing the replace in a
carpeted area, place a one-
piece, solid, at surface under
the replace insert. Ensure
that both of the insert’s feet
rest securely on this surface.
Operation
Electric Fireplace Manual
Control
The manual controls for the
replace are located in the upper
right hand corner (Figure 4).
A. Main On/Off Switch
Supplies power to the 3 Position
Manual Control Switch.
B. 3 Position Manual Control
Switch
Remote (left position): The
unit is operated with the remote
control.
Flame (center position): The
ame effect is turned on.
Flame & Heat (right position):
The ame effect and heater are
turned on simultaneously. When
the manual control is in the Flame
& Heat position the heater does

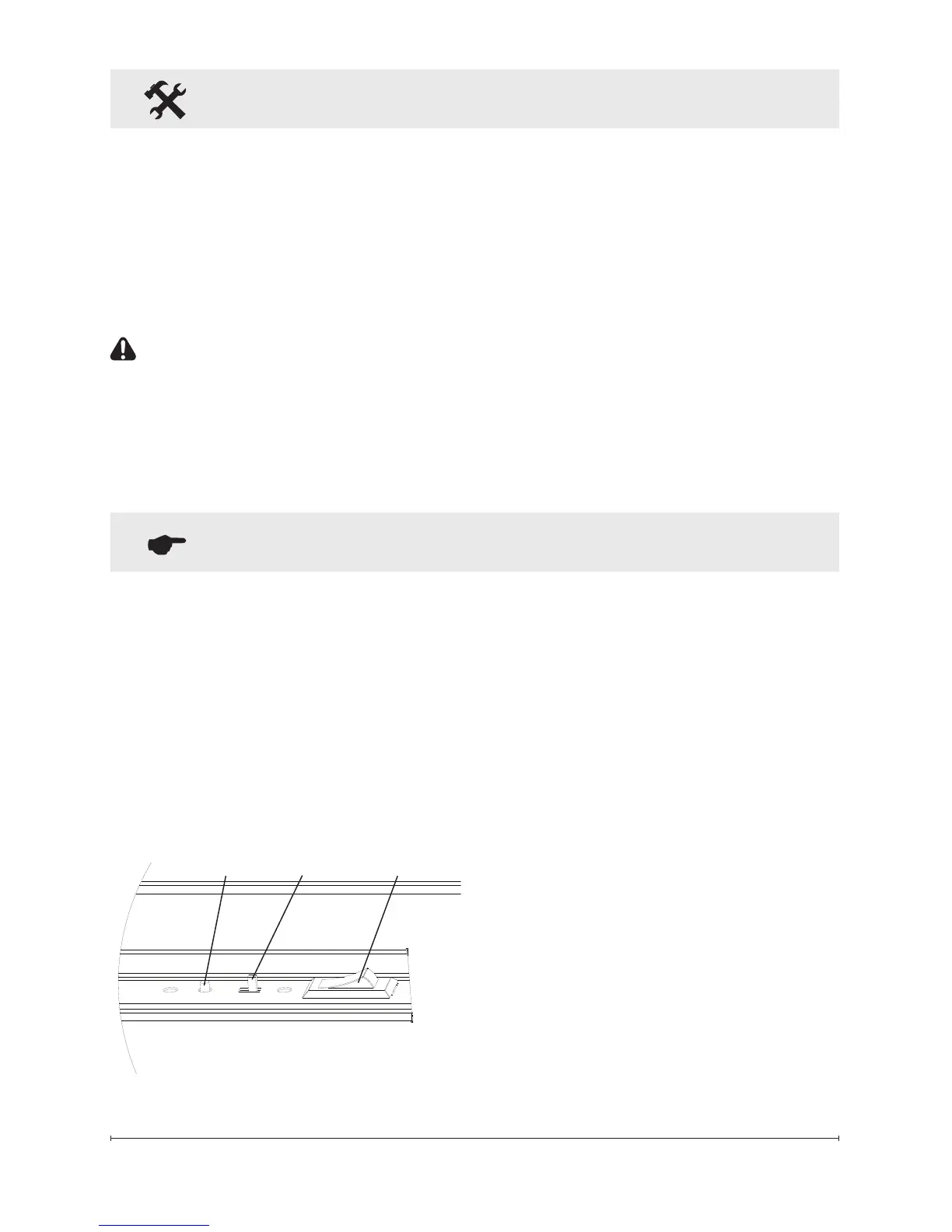

Figure 4
