5

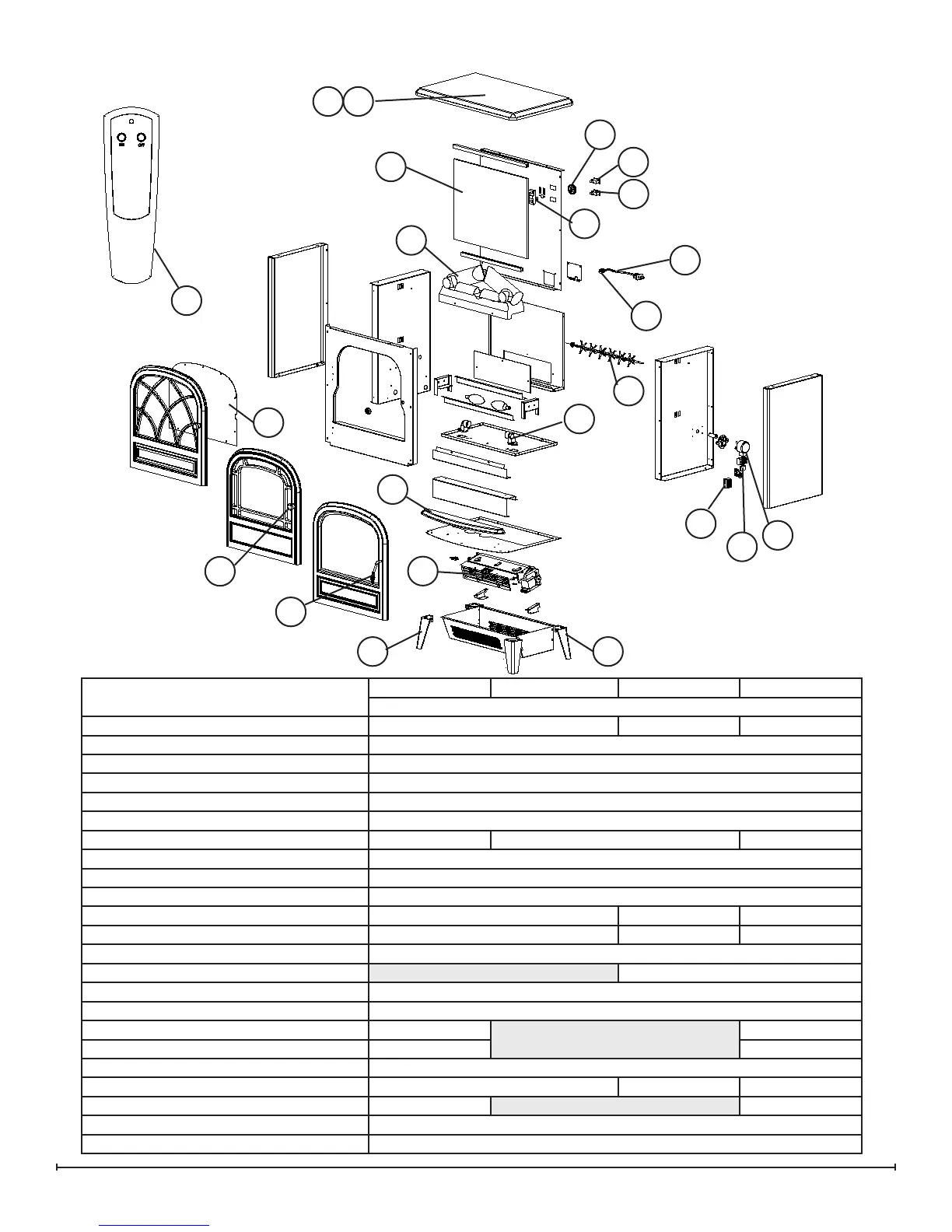

EXPLODED PARTS DIAGRAM
6
1
2
3
4
5
9
10
8
7
13
12
11
14
15
16
18
17
20
20
1. Front Foot
DS2205 DS2307 DS3311 DS4411
0438460160RP
2. Rear Foot N/A 0438460160RP N/A
3. Logset Assembly 0438500100RP then use 0438500400RP
4. Flicker Motor 120V 2000210100RP
5. Heater Assembly (with Cutout) 2200491000RP
6. Capacitor 2300030100RP
7. Heater Switch 2800070200RP
8. Main Power Switch 2800071100RP 2800070200RP 2800071100RP
9. Terminal Block 4000070100RP
10. Power Cord 4100090101RP
11. Lamp holder E-12 (25W) x2 4200121000RP
12. Flicker Rod N/A 5900250100RP N/A
13. Partially Reective Glass N/A 5900270100RP N/A
14. Thermostat Knob 8800000300RP
15. Door Knob 8800340100RP
16. Door Handle 8800450100RP
17. Thermostat 2300150100RP
18. Remote Control 3000370500RP 3000370500RP
19. Remote Control Receiver 3000380200RP 3000380200RP
20. Clear Plastic Door Panel Not Available
21. Top Panel Current N/A 1104120160RP N/A
22. Top Panel (2" deeper) Original 1104120160RP 1104120160RP
23. Plinth Panel 1104130160RP
24. 3 Switch Pack (for Units with 3 Switches) 2800090200RP
14
21
23
