Dimplex Evolve 50 - Page 11

11
Installation

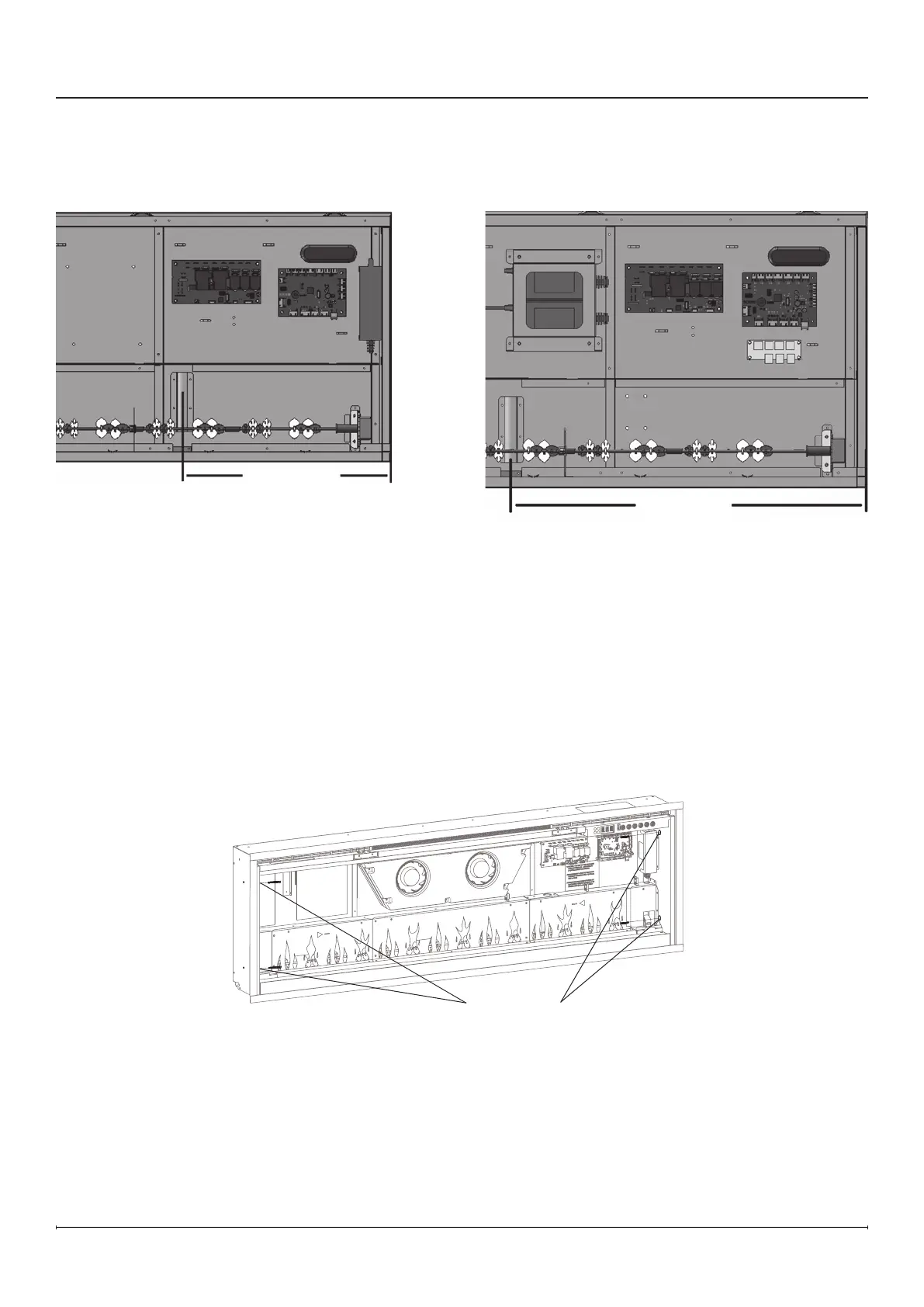

Mounting Holes
6. Drive four supplied mounting screws through the four mounting holes located on the inside surface of the
replace chassis, into wall studs. (Figure 5)
7. Complete the wiring according to instructions in the Electrical Installation section (pages 12–13).
8. Complete the installation using the instructions in the following sections: Mirrored Glass Installation (page15),
Arranging Media (page15), Front Glass Installation (page16).
!
NOTE: Install the rebox ush with the surrounding wall/framing. The face of the rebox should not be
recessed. Any overhang from the surrounding framing can result in an error with the heater.
Figure5
13"
(330.25mm)
20"
(508.4mm)
Distance from the right side to the wiring inlet:
500002563
Evolve 100
500002573 Evolve 50, 500002574 Evolve 60,
500002608 Evolve 74
