Dimplex Evolve 50 - Mirrored Glass Installation

15
Installation
Mirrored Glass Installation
1. Locate and remove the screws securing the mirrored glass bracket to the unit, along the top of the opening, and
set bracket and screws aside. (Figure12)
2. Remove the provided suction cup from the inside cavity of the unit (not included in Evolve 50" 500002573 units).
3. Ensure that the back of the glass is clean and free from particles and ngerprints.
4. Secure the suction cup to the mirrored glass on the reective side
5. Lift the mirrored glass and place it into the supports on the bottom at both sides of the unit.
6. Tilt the mirrored glass into a vertical position.
7. Secure the mirrored glass bracket to hold the glass in place, using the previously removed screws.
CAUTION: Ensure the mirrored glass does not fall forward while the mirrored glass mounting bracket is being
installed.
8. Remove the suction cup and clean any ngerprints or debris off the glass with a non-abrasive glass cleaner.
!
NOTE: Do not dispose of the suction cup! Keep it in a secure location, as it may be needed for maintenance and
service on this replace.
Mirrored Glass
Mirrored Glass
Bracket
Media Tray
Mirrored Glass
Support
Mirrored Glass
Support

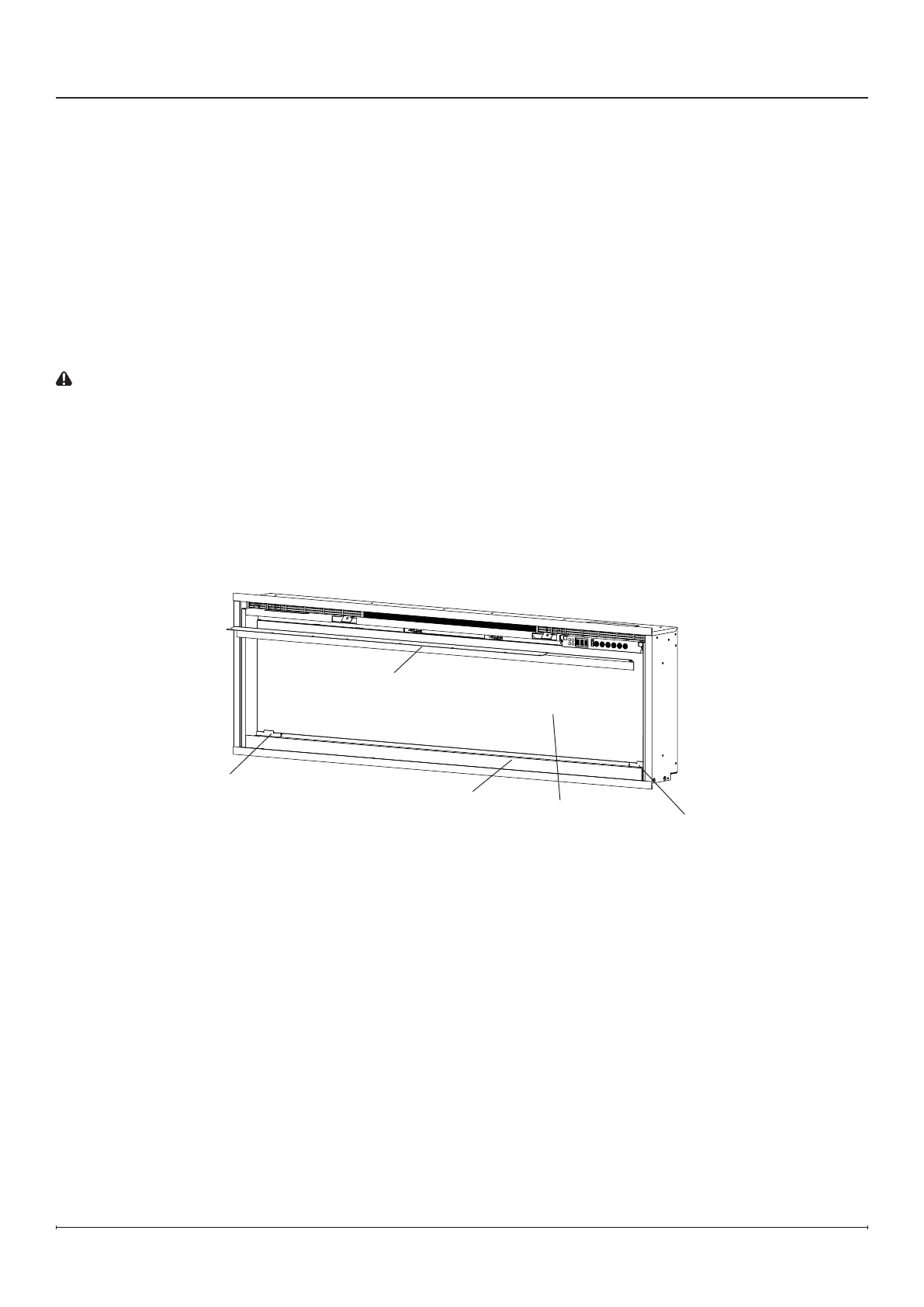

Figure 12
