13

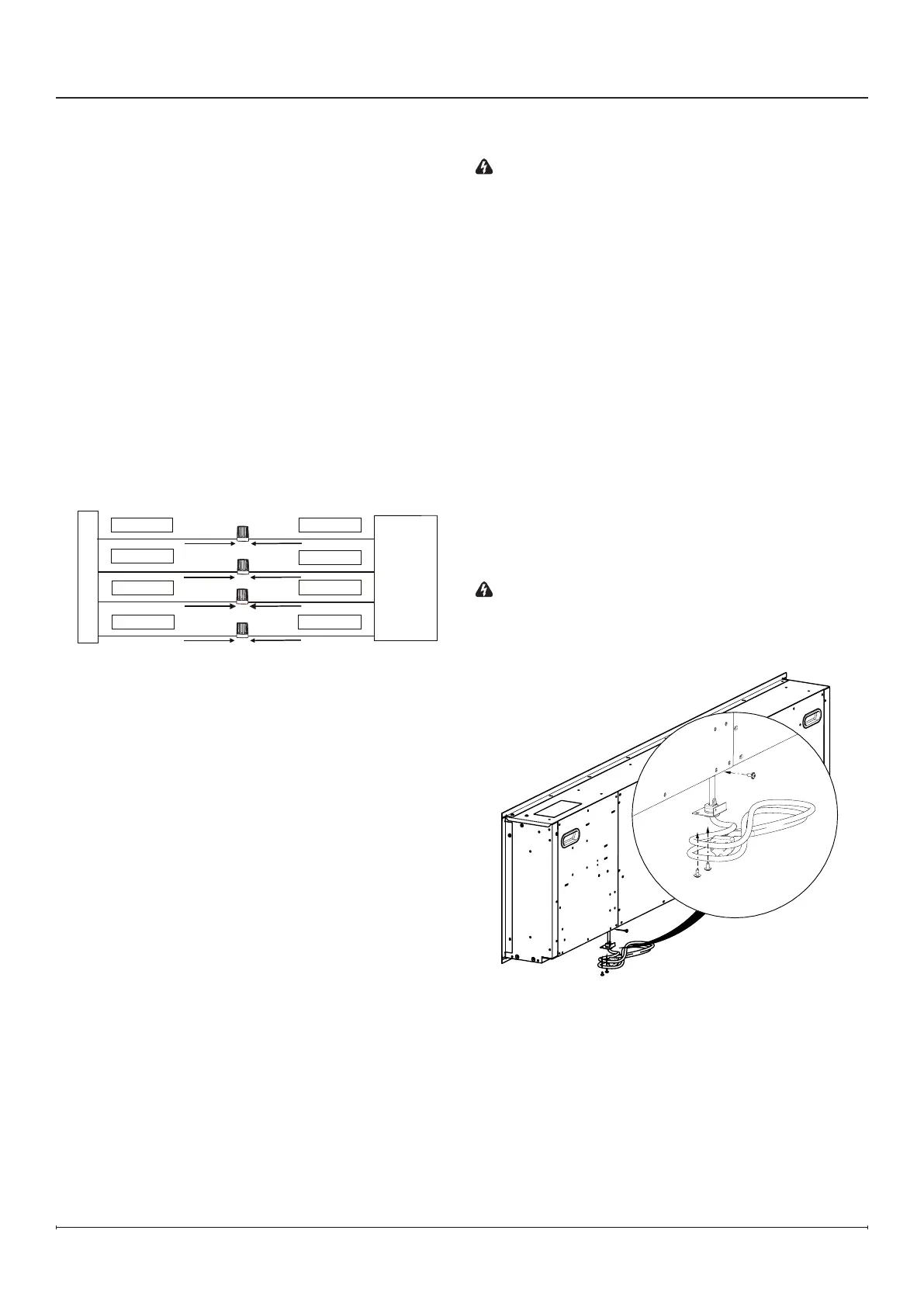

Power Cord Installation
WARNING: Power cord option is only suitable for
120V installations.
1. Remove the 3 screws that secure the pre-installed
hardwire plate.
2. Connect the black L1 wire from the unit to the black
wire of the plug kit.
3. Connect the white N wire from the replace to the
white wire from the plug kit.
4. Terminate the yellow L2 wire from the replace with a
wire connector.
5. Connect green G wire from the replace to the green
wire from the plug kit.
6. Ensure all wire connections are tight and that wires
are secured with wire ties and do not protrude past
the ame panel, so as not to be visible after nal
installation.
7. Secure the power cord’s pre-installed cover plate
using the screws removed when removing the
hardwire plate. The previously removed electrical
cover plate can be disposed of.
WARNING: This heater is not intended for use with
an extension cord. Plug the cord directly into an
appropriate grounded receptacle.
240V Hardwire Installation
You will need a 4-wire240 V supply (L1, L2, Neutral, and
Ground).
1. Connect the black L1 wire from the unit to the L1 wire
from the power supply with a wire connector.
2. Connect the yellow L2 wire from the unit to the L2
wire from the power supply with a wire connector.
3. Connect the white N wire from the unit to the neutral
wire from the power supply.
4. Connect the green G wire from the unit to the ground
wire from the power supply with a wire connector or
attach the grounding wire.
5. Ensure all wire connections are tight and that wires
are secured with wire ties and do not protrude past
the ame panel, so as not to be visible after nal
installation.
Installation
Figure 8
F I R E P L A C E J U N C T I O N B O X
G re e n - G rou nd
G re e n - G rou nd
W h it e - N e u t ral
W h it e - N e u t ral
B l ack - L
B l ack - L 1
R e d - L 2
1 2 0 V
P O W E R
S U P P L Y
( B R E A K E R
P A N E L )
F I R E P L A C E J U N C T I O N B O X
2 4 0 V
P O W E R
S U P P L Y
( B R E A K E R
P A N E L )
RED
–
L2
G re e n - G rou nd
G re e n - G rou nd
W h it e - N e u t ral
W h it e - N e u t ral
B l ack - L
B l ack - L 1
R e d - L 2
YELLOW- L2
240 V Hardwire Installation
Figure 9
