Dimplex KSS 2508 AIV - Device Construction

6

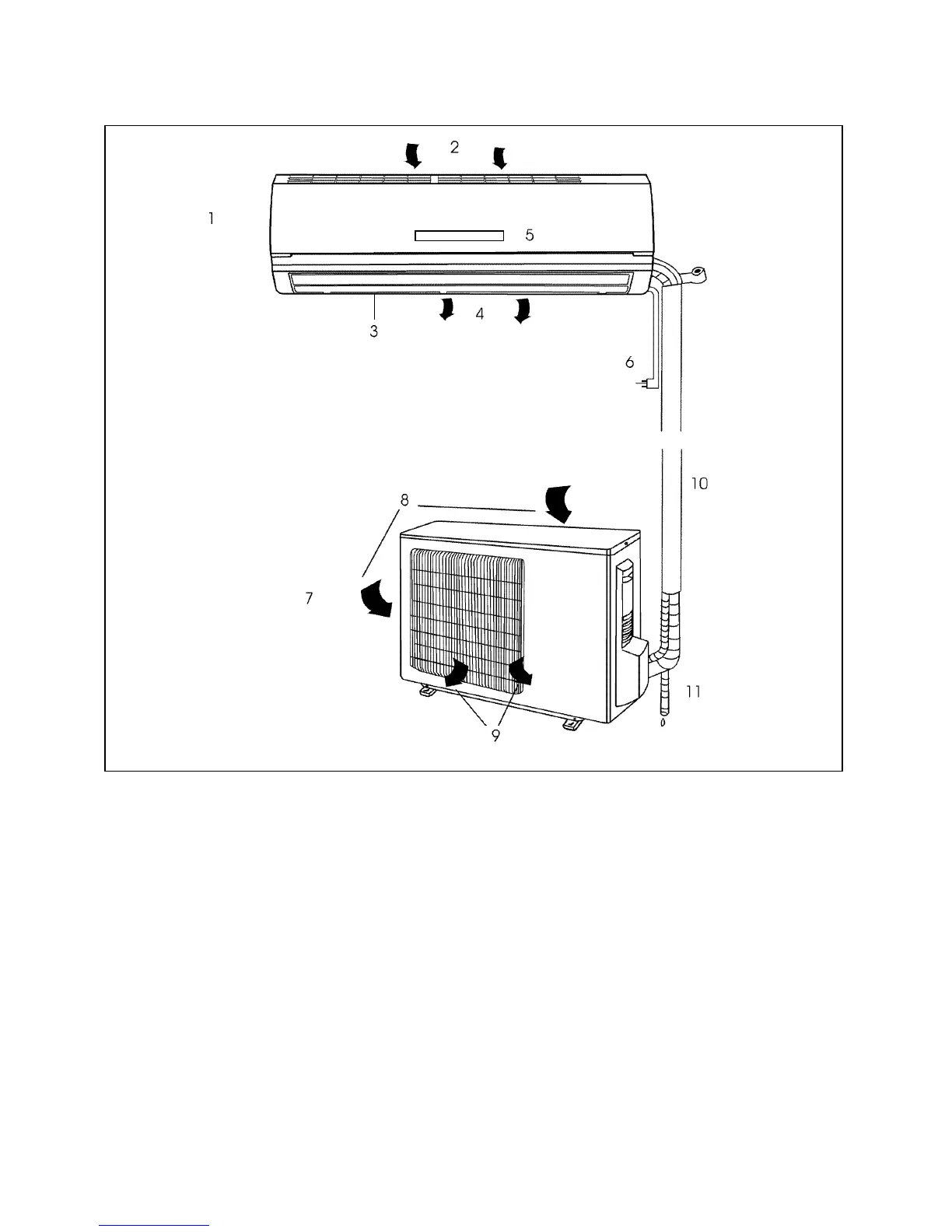

Device construction
1 Indoor unit
2 Air inlet
3 Airflow fins (for adjustable air outlet direction)
4 Air outlet
5 Signal receiver (of the remote control) with indicator lamps
6 Mains connection cable on indoor unit
7 Outdoor unit
8 Air inlet
9 Air outlet
10 Connection lines indoor unit - outdoor unit
11 Condensate outflow hose
