Field busses and interfaces
Original instruction manual Date: 2017.08.28 Page 11 of 28
5.2

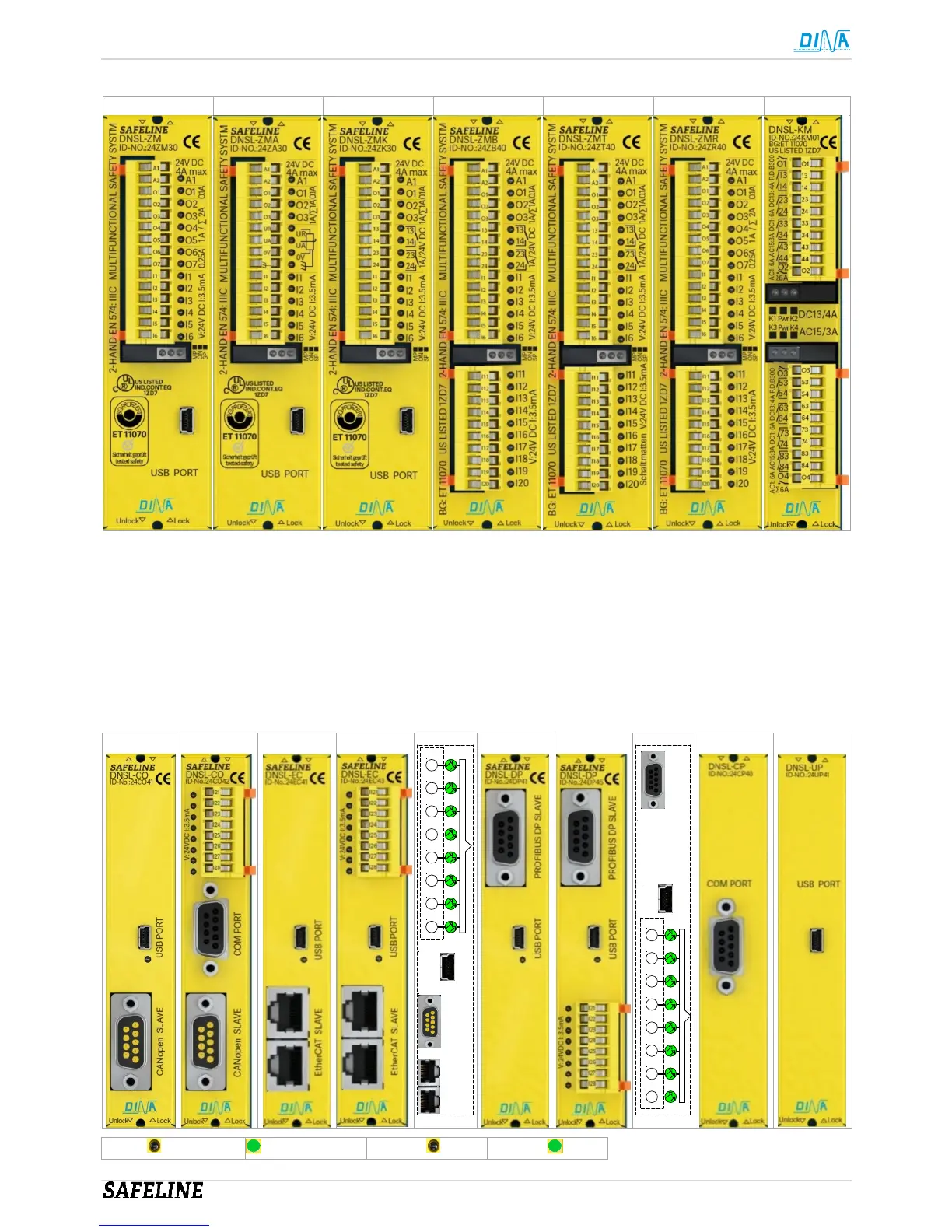

Front view of the central modules
DNSL-ZM DNSL-ZMA DNSL-ZMK DNSL-ZMB DNSL-ZMT DNSL-ZMR DNSL-KM
6 Field busses and interfaces
• The field busses are for data transfer between SAFELINE and the field bus master.
• The field bus is also deliverable with 8 safe inputs for different safety functions.
• The power supply for the field bus is ensured via the terminal inputs A1 and A2 at the central module.
• The data transfer interface is available separate or with integrated field bus
COM PORT (DNSL-CP) and USP PORT (DNSL-UP) are available.
• These are for the central modules DNSL-ZMB/ ZMR and ZMT
• DNSL-ZM, ZMA and ZMK have the interface on board.
