Function Tests
22
1 Select a test area that is firm, level and
free of obstruction.
2 Be sure the battery pack is connected.
3 Turn the main power switch to “on”
position.
At the Ground Controls
4 Turn the ground red Emergency Stop
button clockwise to the on position. Pull
out the platform red Emergency Stop
button to the on position.
5 Turn the key switch to ground control.
6 Observe the LED readout screen on the
platform controls.

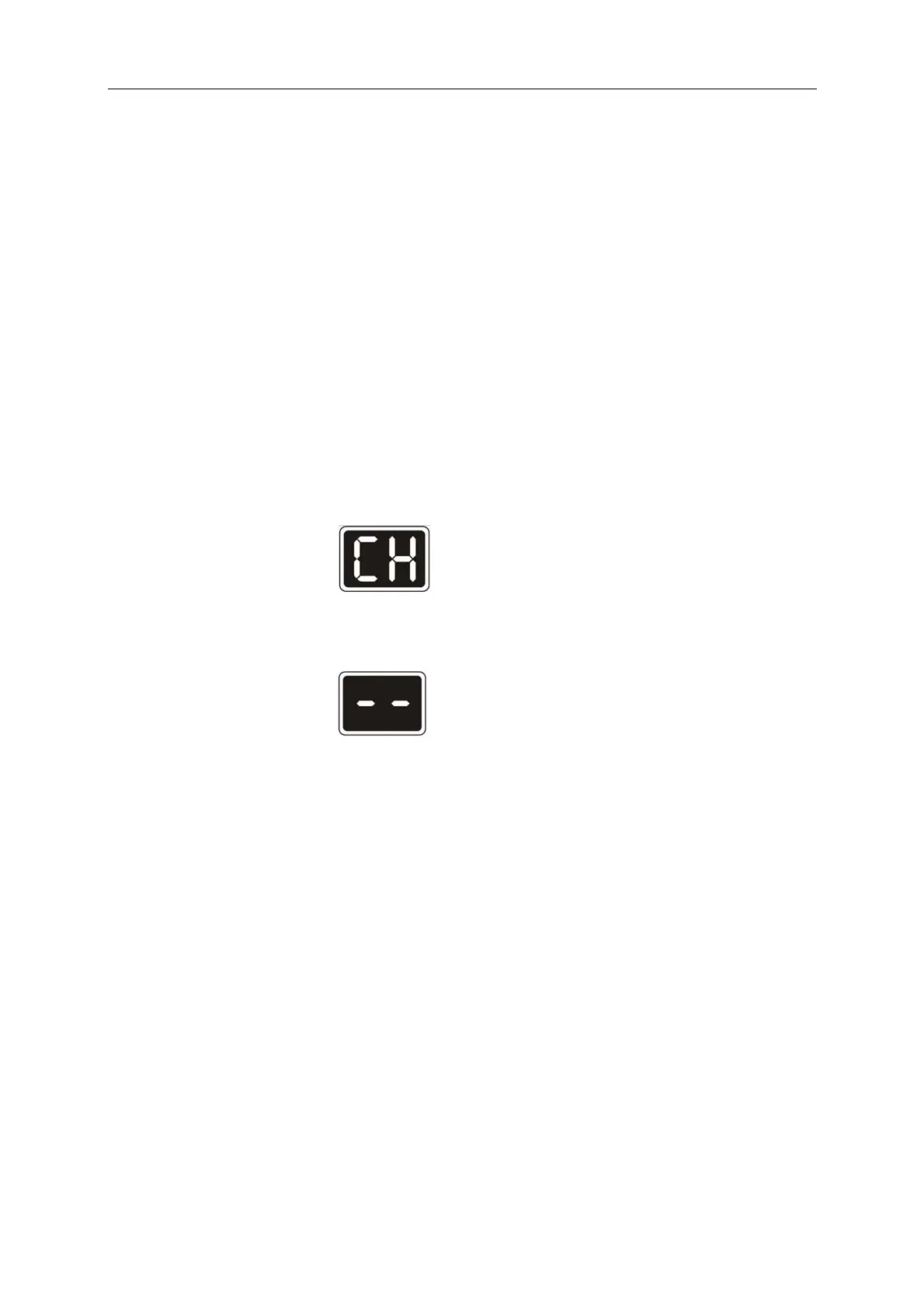

⊙ Result: The LED should
look like the picture at
right.
7 Observe the LED readout screen on the
ECU window.
⊙ Result: The LED should
look like the picture at
right.
Test Emergency Stop
8 Push in the ground red Emergency Stop
button to the off position.
⊙ Result: No functions should operate.
9 Turn the red Emergency Stop button
clockwise to the on position.
Test Up/Down Functions
A buzzer with different sound frequency is
controlled in central system. The descent
alarm sounds at 60 beeps per minute. The
descent delay alarm sounds at 120 beeps per
minute. The alarm that goes off when the
pothole guards have not deployed sounds at
180 beeps per minute. The alarm that goes off
when the machine is not level sounds at 180
beeps per minute. An optional
automotive-style horn is also available.
10 Turn the key switch to off or platform
position.
11 Move up and hold the platform up / down
switch.
⊙ Result: No function should operate.
12 Turn the key switch to ground control
position.
13 Move up and hold the platform up / down
switch.
⊙ Result: The platform should raise.
14 Move down and hold the platform up /
down switch.
⊙ Result: The platform should lower. The
descent alarm should sound while the
platform is lowering. The platform stop at
the height is approximately 2 m from the
ground. The descent delay alarm will
sound.
Note: Be sure the area below the platform is
clear of personnel and obstructions before
continuing.
15 Move down and hold the platform up /
down switch.
⊙ Result: The platform should lower to end.
The descent delay alarm should sound
while the platform is lowering.
Test the Emergency Lowering
16 Activate the up function and raise the
platform approximately 60 cm.
17 Pull the emergency lowering knob located
on the ground controls side of the
machi ne.
⊙ Result: The platform should lower. The
descent alarm will not sound.
18 Turn the key switch to platform control.
