Dingtek DF702 User Manual

Beijing Dingtek Technology Corp., Ltd. Tel:86-10-64718863, 64753700
http://www.dingtek.com E-mail: service@dingtek.com
Room A209, Flounder Business Park, Shunbai Road 12, Chaoyang District, Beijing, China 100022 Page
12

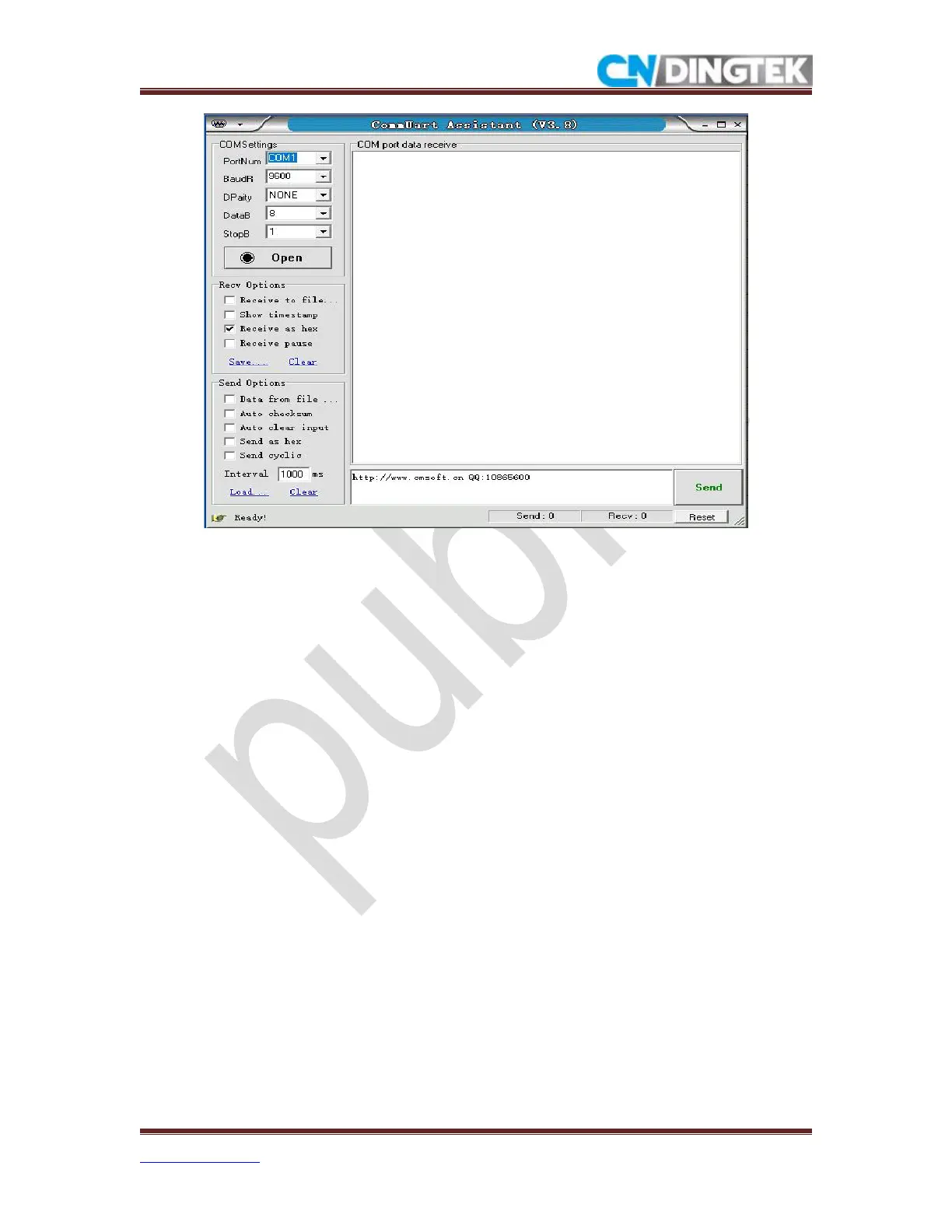

Figure5.7
2 Select the serial of configuration of serial software
 Port number ( you can select port Number from device manager of your system)

Set the baud rate: 115200, (DF702 is 115200 baud rate and DO100 is 9600)
 Parity bit: NONE

Data bits: 8
 Stop bit: 1
As shown in figure 5.8 you can follow the given instruction.
