3.3 EVB Schematics

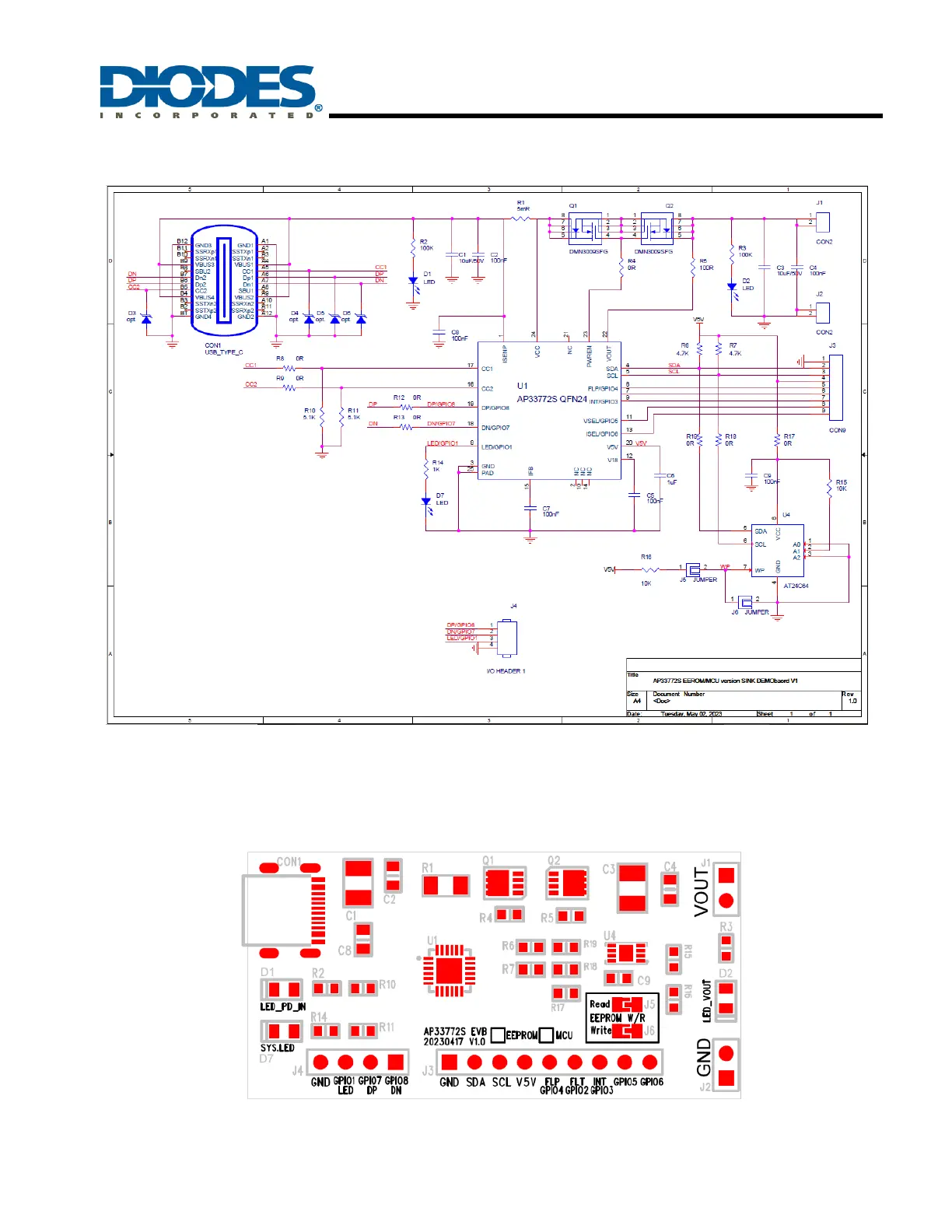

Figure 5 –Schematic of the AP33772S Evaluation Board
3.4 Board Outline
The AP33772S EVB outline and floor plan are shown in Figure 6, and the connector and jumper location are listed in Table 2.
Figure 6 – Connector and jumper locations
