20
©
2002
Directed Electronics, Inc.

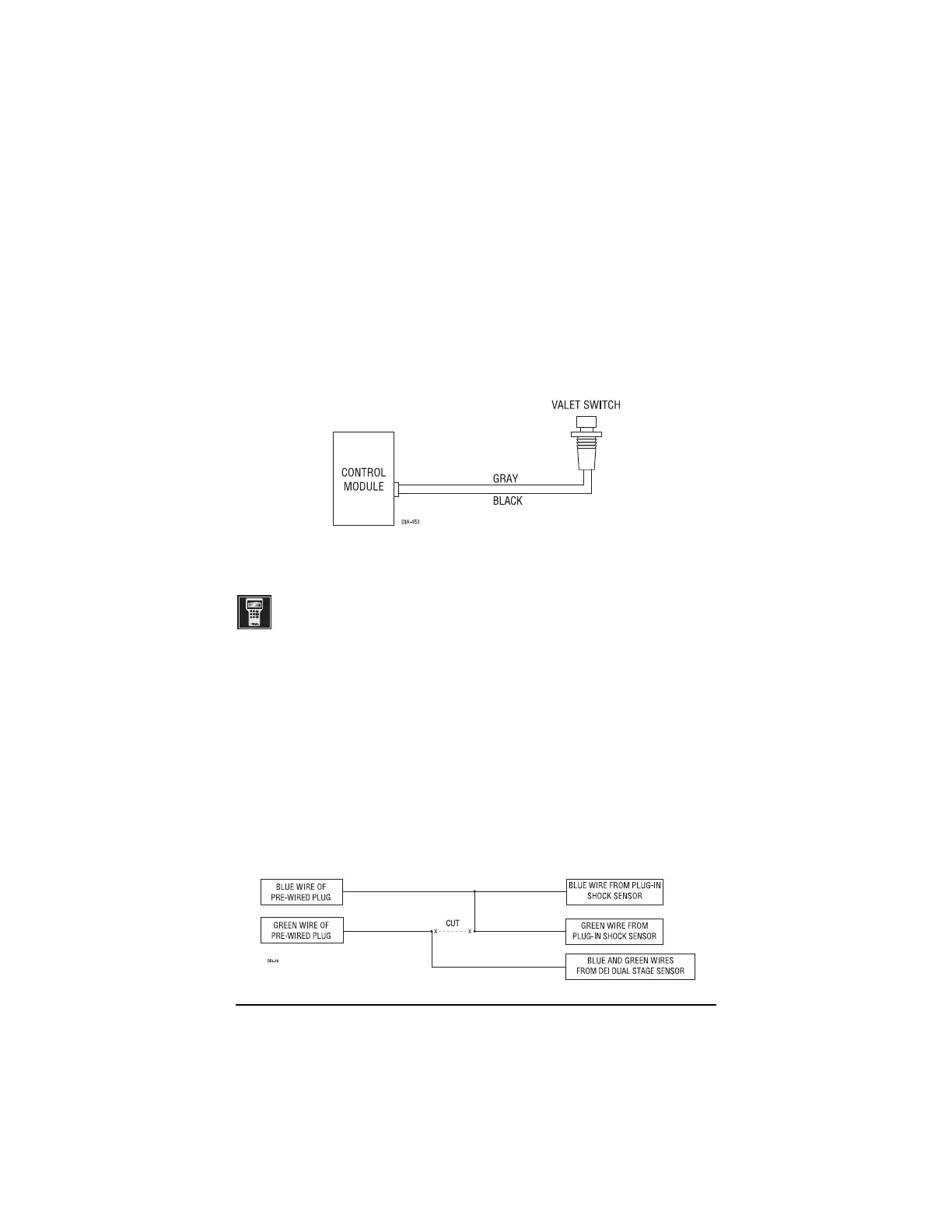

Valet/Program Switch, 2-Pin BLUE Plug
The Valet/Program button should be accessible from the driver’s seat. It plugs into the BLUE port
on the side of the unit. Since the system features Valet® by using the remote transmitter, the button
can be well hidden. Consider how the button will be used before choosing a mounting location.
Check for rear clearance before drilling a 9/32-inch hole and mounting the button.The GRAY wire
in the two-pin plug may also be used as a (+) ghost switch input and can be connected to any (+)
switch in the vehicle. (See Feature Descriptions section of this guide.)
Programmer Interface, 3-Pin Port
The BLACK three-pin port is provided for programming of the unit. When using the 998T
Bitwriter, it is possible to configure any and all of the programmable functions. For more infor-
mation please refer to the guide packaged with the programmer. This port can also be used to interface
with Directed Video components for on-screen security system programming and trigger information.
Shock Sensor Harness, 4-Pin Connector
GREEN (-) multiplex input, zone 2
Inputs shorter than 0.8 seconds will trigger the Warn Away® response, while inputs longer than 0.8
seconds will trigger full alarm sequence and report Zone Two. If installing an optional Directed
dual-stage sensor, connect to the green wire as shown below. The diagram below eliminates the need
for diodes to isolate the sensors.
Diagram for adding optional Directed dual-stage sensor to GREEN wire (Zone 2):
