Directed Electronics 554R User Manual

8
©
2002 Directed Electronics, Inc.
H1/2 WHITE (+/-) Selectable Light Flash Output
As shipped, this wire should be connected to the (+) parking light wire. If the light flash polarity
jumper is moved to the (-) position (see the Programming Jumper section of this guide), this wire
supplies a (-) 200 mA output. This is available for driving (-) light control wires in Toyota, Lexus,
BMW, some Mitsubishi, some Mazda, and other models.
NOTE: For parking light systems that draw 10 amps or more, the jumper must be switched to a
(-) light flash output. (See the Programming Jumpers section of this guide.) P/N 8617 or a standard
automotive SPDT relay must be used on the H1/2 light flash output wire.
IMPORTANT! DO NOT connect this wire to a negative vehicle light flash wire before
changing the programming jumper to the negative polarity position or damage to
vehicle light circuit may occur.

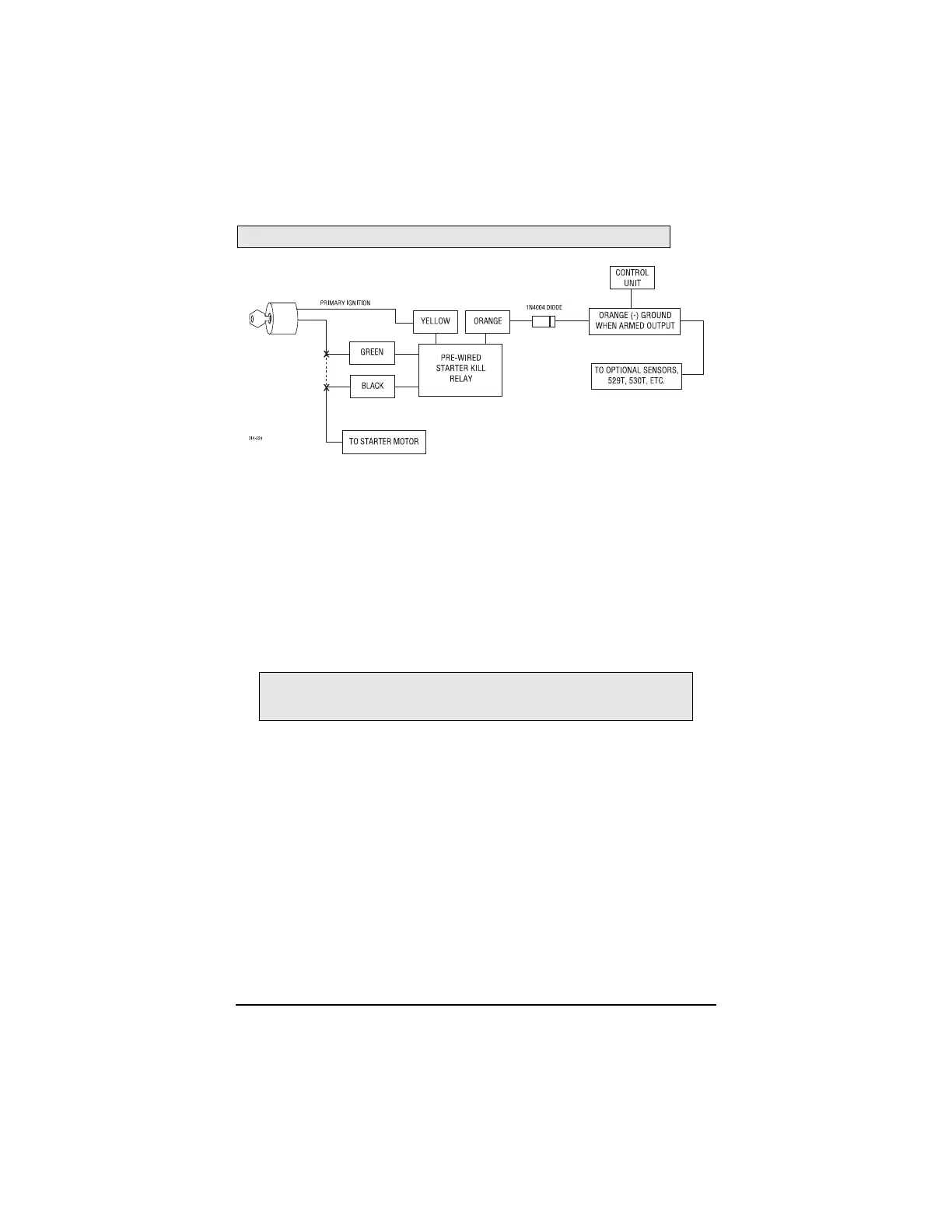

IMPORTANT! Never interrupt any wire other than the starter wire.
