Operation control in HD Radio Mode
Button Operation
POWER Power off
BAND Band toggle (AM / FM)
Ù
SEEK Same as Analog Radio mode
1-5 Same as Analog Radio mode
BANK
Same as Analog Radio mode
UP : Only main channel ÆTune up , with SPS channel Æ Next program
DOWN : Only main channel ÆTune down, with SPS channel Æ Previous program
RIGHT : Seek up according to currently active Seek mode.
LEFT : Seek down according to currently active Seek mode.
NAVIGATION
SEL : Select to desired channel
MENU Same as Analog Radio mode

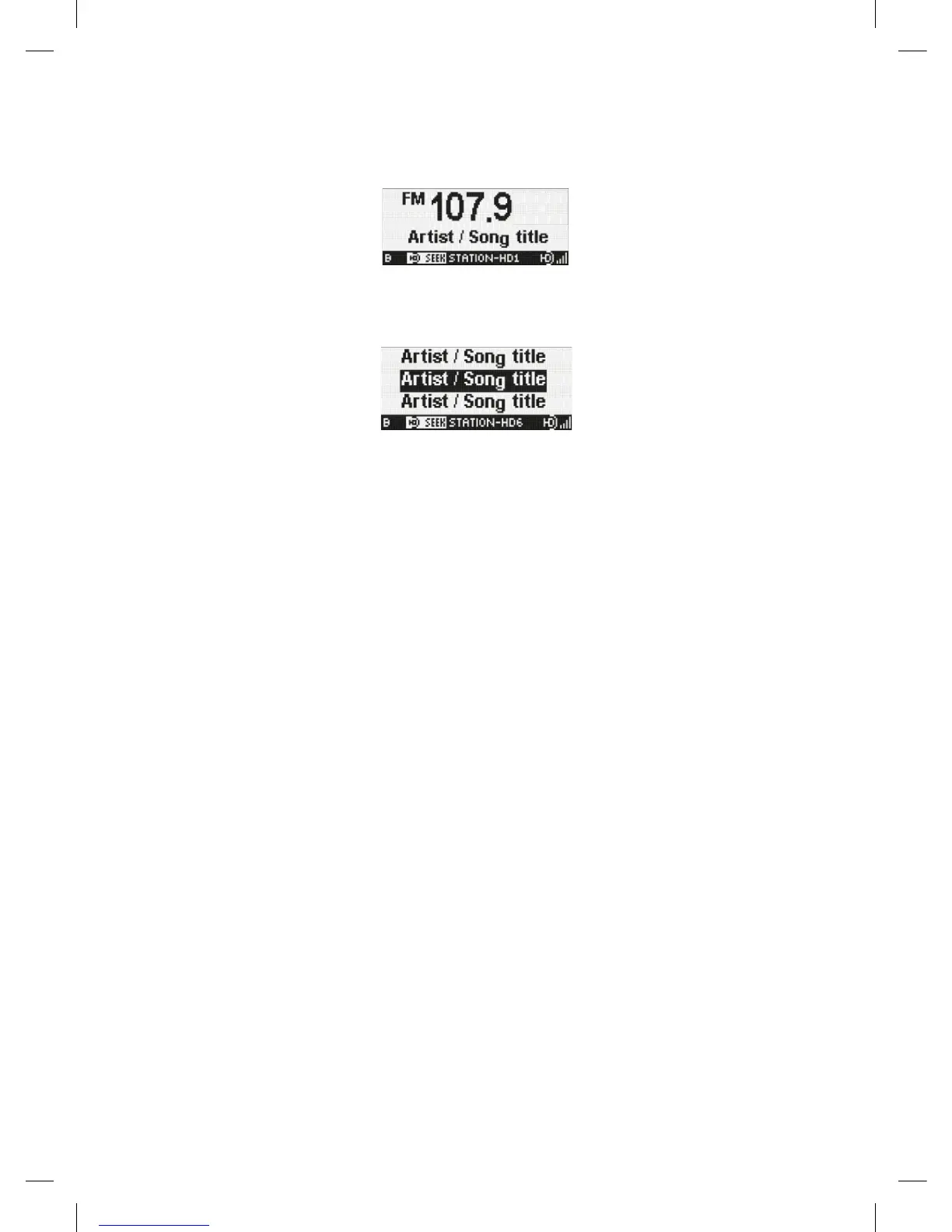

Display Mode 1
Display Mode 2
DISPLAY
Display Mode 3 “Multi –Cast EPG” When secondary audio is available.
