Directed Electronics Hornet 740T - Page 12

1122
© 2004 Directed Electronics, Inc. Vista, CA

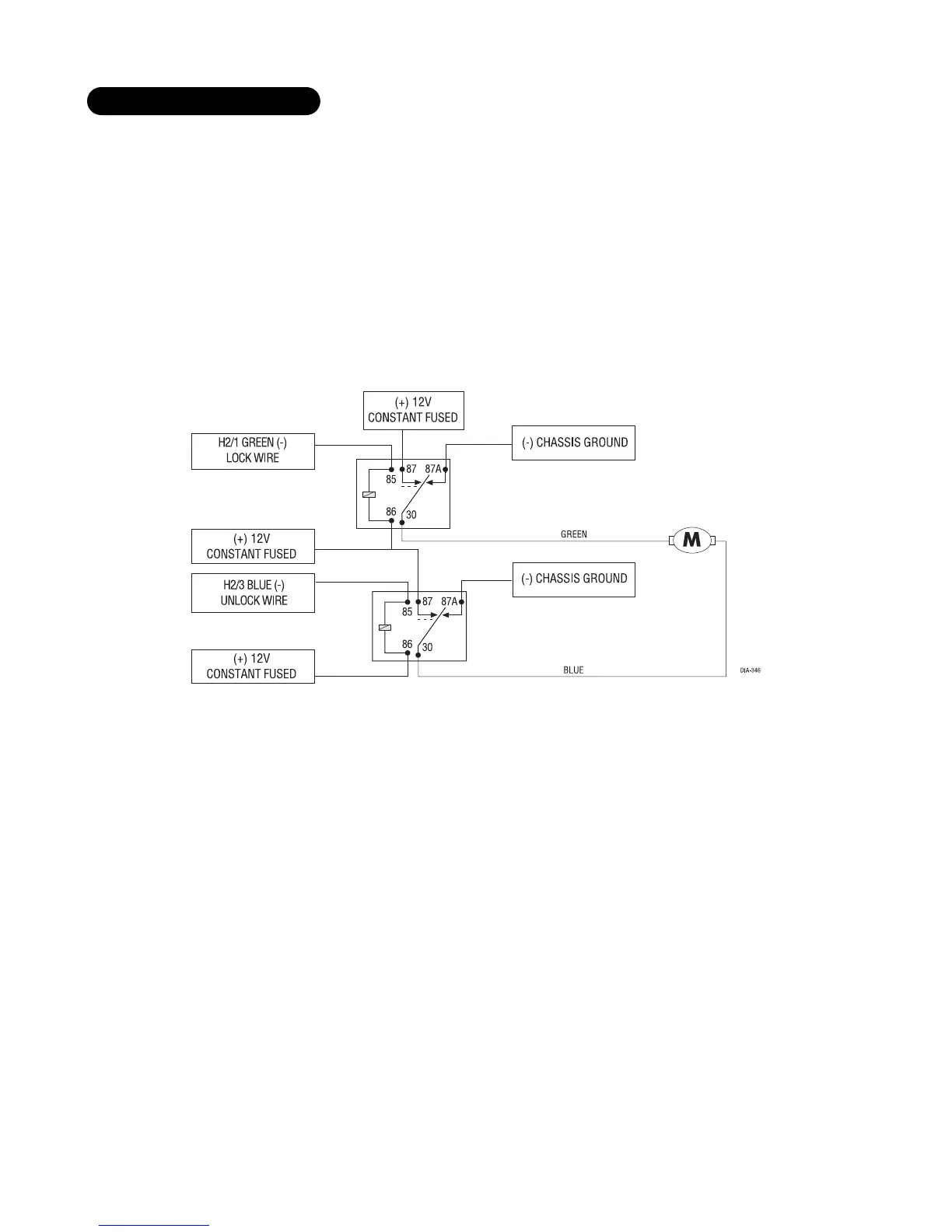

In order for this system to control one or more after-market actuators, a
445511MM
or two relays (optional) are
needed.
Vehicles without factory power door locks require the installation of one actuator per door. This requires
mounting the door lock actuator inside the door. Other vehicles may only require one actuator installed in the
driver's door if all door locks are operated when the driver's lock is used. This type of installation is required to
operate factory lock systems in Volvo (except 850), SAAB, and most Mazda, Isuzu and Subaru models. The fuse
used on 12-volt inputs should be 7.5A per motor installed in the vehicle.
ttyyppee DD:: aafftteerr--mmaarrkkeett aaccttuuaattoorrss
