Door locks are controlled by an electrically activated vacuum pump. Some Mercedes and Audi models use a Type
D system. Test by locking doors from the passenger key cylinder. If all the doors lock, the vehicle's door lock
system can be controlled with just two relays (optional). The control wire can be found in either kick panel and
will show (+)12V when doors are unlocked and (-) ground when doors are locked.

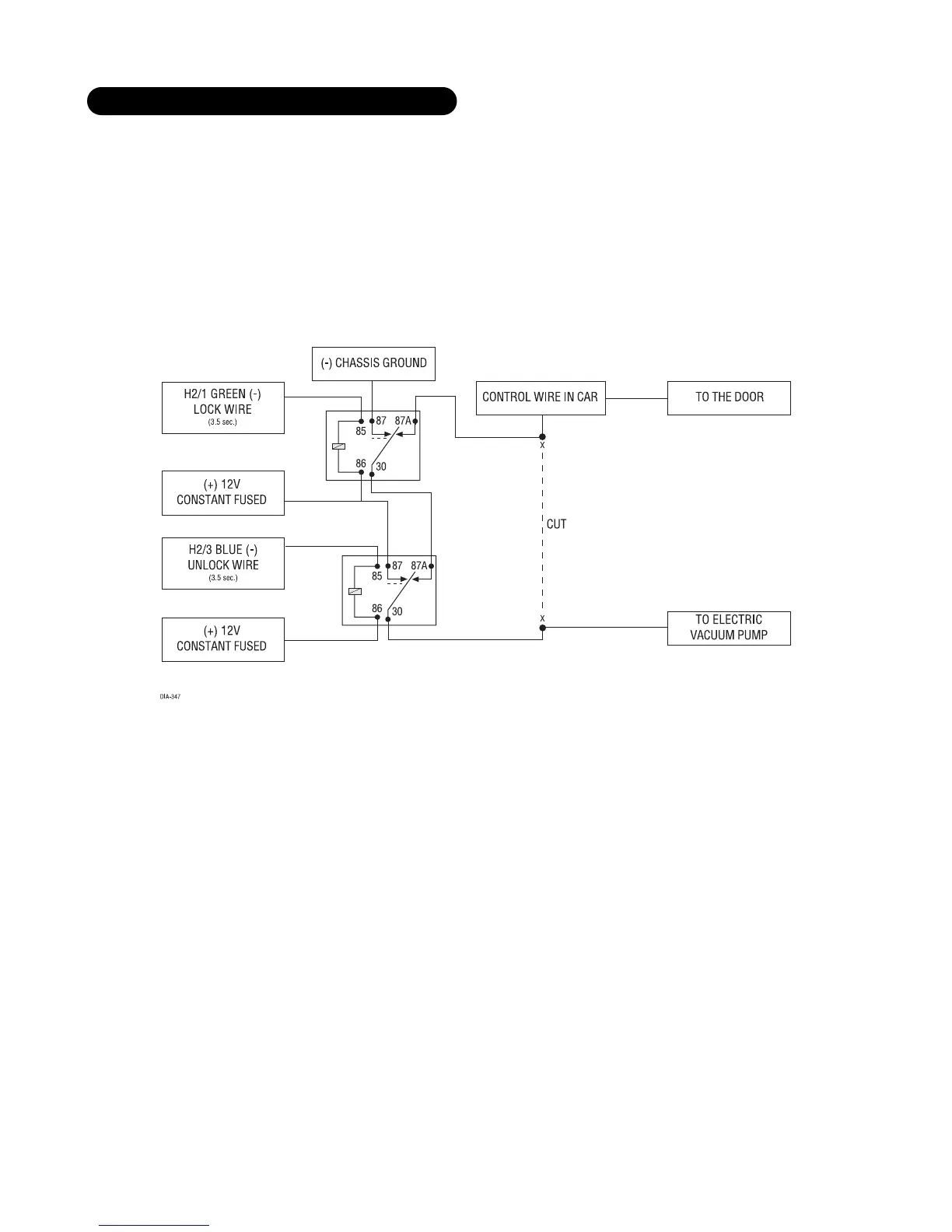

To interface, see diagram below. The system must be programmed for 3.5 second door lock pulses. (See
Operating Settings Remote Control Code Learning
section of this guide.)
ttyyppee EE:: mmeerrcceeddeess--bbeennzz aanndd aauuddii ((11998855 aanndd nneewweerr))
