1188
© 2004 Directed Electronics, Inc. Vista, CA

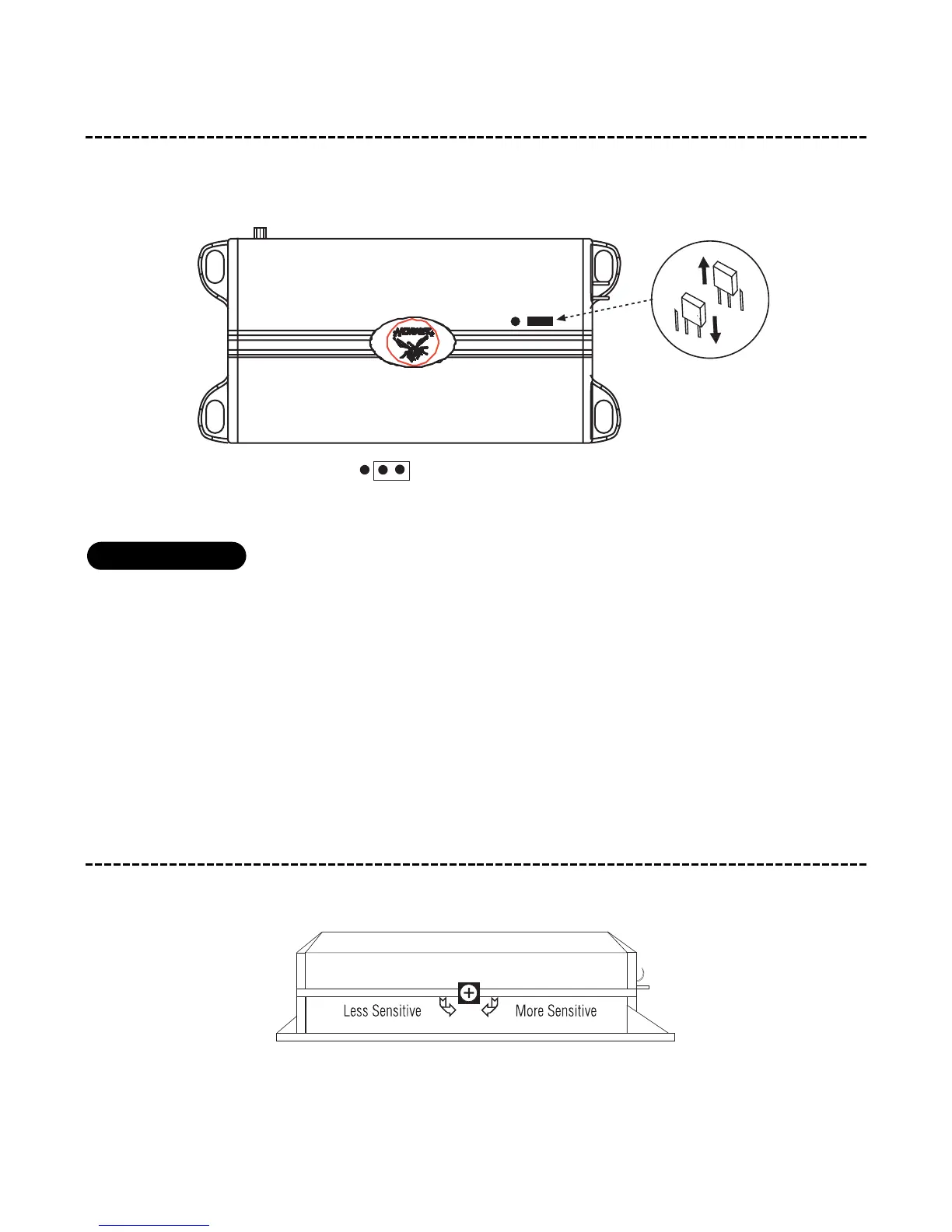

iinntteerrnnaall pprrooggrraammmmiinngg jjuummppeerr
This jumper is used to determine the light flash output. In the (+) position, the on-board relay is enabled and
the unit will output (+)12V on the H1/2 WHITE wire. In the (-) position, the on-board relay is disabled. The H1/2
WHITE wire will supply a (-) 200 mA output suitable for driving factory parking light relays. To access the jumper,
open the control module.
NNOOTTEE::
For parking light circuits that draw 10 amps or more, the internal jumper must be switched
to a (-) light flash output.
PP//NN 88661177
or a standard automotive SPDT relay must be used on the
H1/2 light flash output harness wire.
oonn--bbooaarrdd dduuaall ssttaaggee zzoonnee 22 iimmppaacctt sseennssoorr
There is a dual-stage impact sensor inside the control unit. Adjustments are made via the rotary control as indi-
cated above. Since the impact sensor does not work well when mounted firmly to metal, we recommend against
lliigghhtt ffllaasshh jjuummppeerr
