10 © 2000 Directed Electronics, Inc. Vista, CA

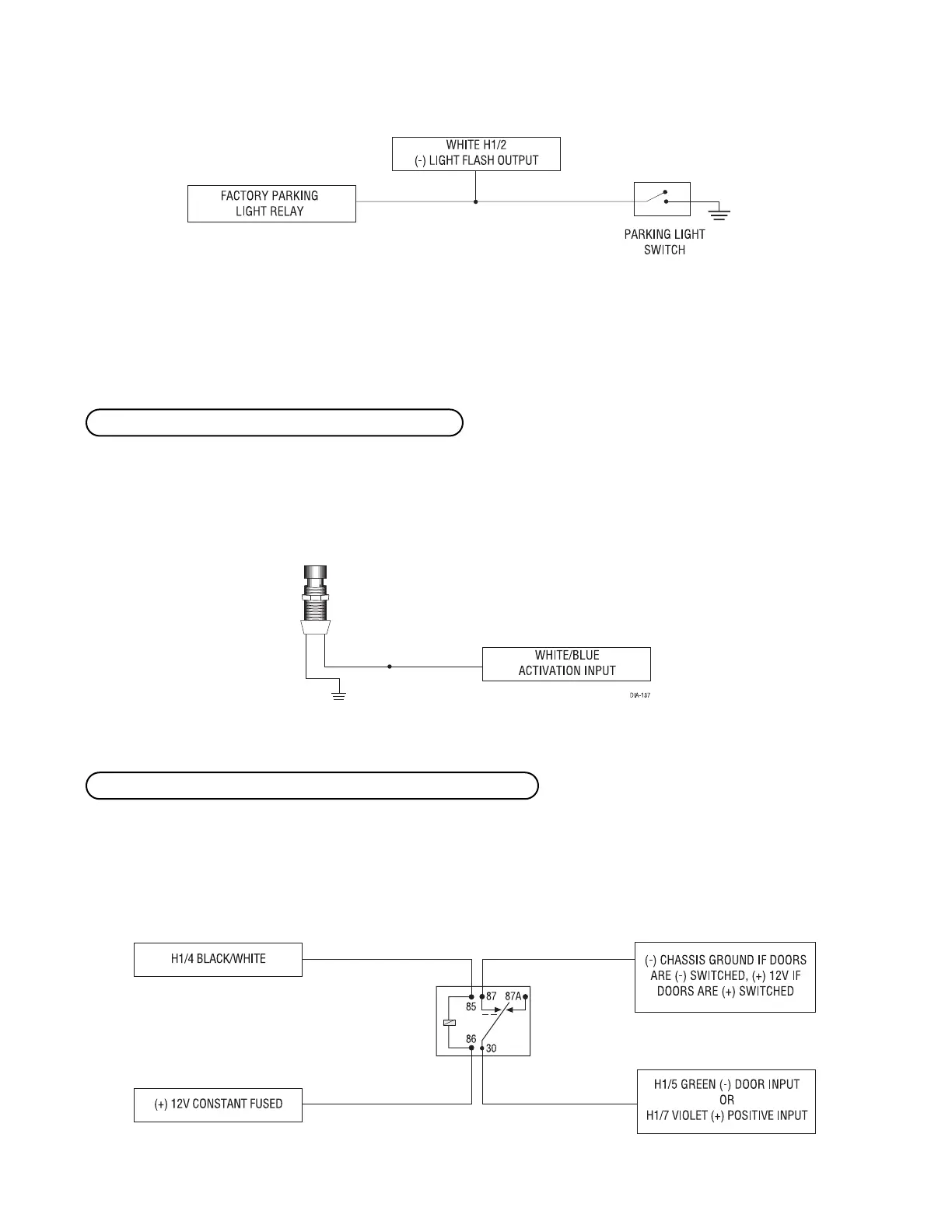

(-) Light Flash Output
NOTE: For parking light circuits that draw 10 amps or more, the internal jumper must be switched
to a (-) light flash output. (See the Internal Programming Jumper section of this guide.) P/N 8617
or a standard automotive SPDT relay must be used on the H1/2 light flash output harness wire.
A momentary input on this wire will start or stop the motor, just as transmitting Channel 3 from the remote trans-
mitter does. It is often connected to an optional momentary push-button switch to make access to Valet Take
Over Mode and Timer Mode more convenient.
Connect this wire to the optional domelight supervision relay as shown below:
IMPORTANT! This output is only intended to drive a relay. It cannot be connected directly to the
domelight circuit, as the output cannot support the current draw of one or more light bulbs.
H1/4 BLACK/WHITE (-) 200 mA domelight supervision output
H1/3 WHITE/BLUE remote start (-) activation input
