12 © 2000 Directed Electronics, Inc. Vista, CA

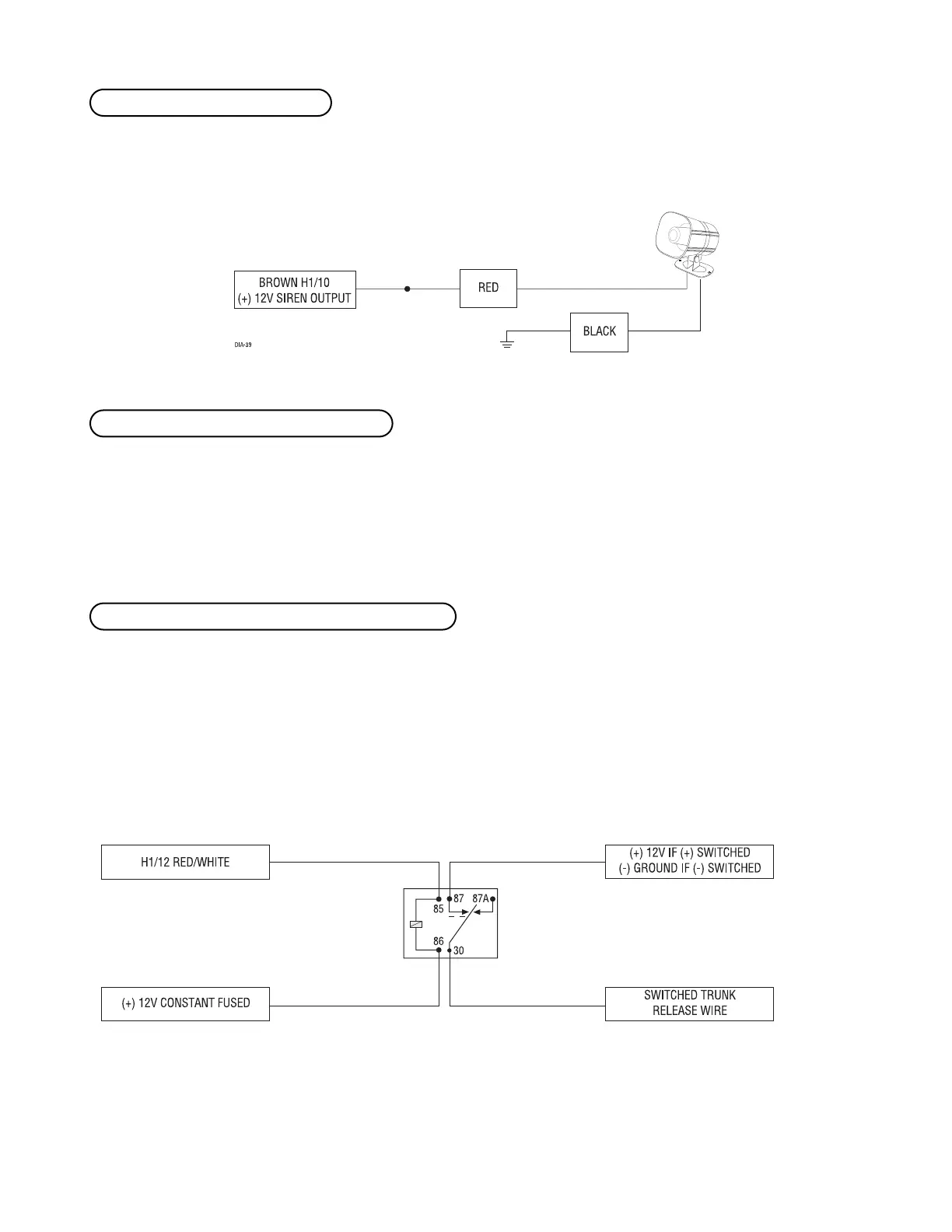

Connect this to the red wire of the siren. Connect the black wire of the siren to (-) chassis ground, preferably
at the same point you connected the control module’s black ground wire.
Before connecting this wire, remove the supplied fuse. Connect to the battery positive terminal or the constant
12V supply to the ignition switch.
NOTE: Always use a fuse within 12 inches of the point you obtain (+)12V. Do not use the 15A fuse
in the harness for this purpose. This fuse protects the module itself.
When the system receives the code controlling Channel 2, for longer than 1.5 seconds, the red/white wire will
supply an output as long as the transmission continues. This is often used to operate a trunk/hatch release or
other relay-driven function.
IMPORTANT! Never use this wire to drive anything but a relay or a low-current input! The transis-
torized output can only supply 200 mA of current. Connecting directly to a solenoid, motor, or other
high-current device will cause it to fail.
H1/12 RED/WHITE channel 2, 200mA (-) output
H1/11 RED (+)12V constant power input
H1/10 BROWN (+) siren output
