© 2000 Directed Electronics, Inc. Vista, CA 25

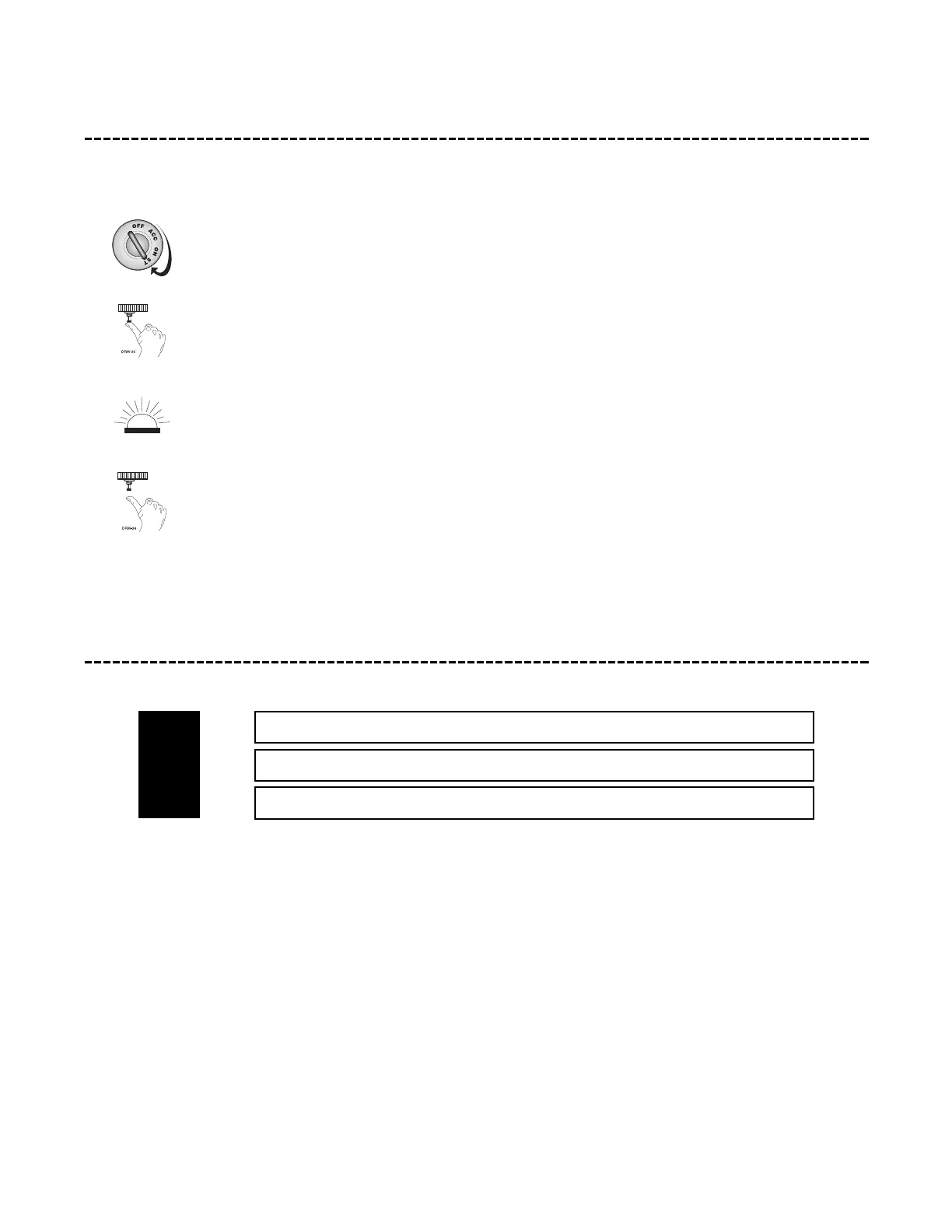

tach learning
To learn the tach signal:
1. Start the vehicle with the key.
2. Within 5 seconds, press and HOLD the Valet®/Program switch.
3. The LED will light constant when the tach signal is learned.
4. Release the Valet®/Program switch.
door lock harness (H4) wire connection guide
______
______
______
This system can control two common power door lock types without any additional parts! With certain vehicles,
or if an actuator is to be installed, either a 451M Door Lock Relay Satellite or two relays will be required.
IMPORTANT! If you mistake a Type C direct-wired system for a Type A positive-pulse system, the
module will be damaged!
BLUE (-) UNLOCK, (+) LOCK OUTPUT
EMPTY UNLESS USING 451M
GREEN (-) LOCK, (+) UNLOCK OUTPUT
H4/A
H4/B
H4/C
