remote start secondary harness (H3) wire
connection guide

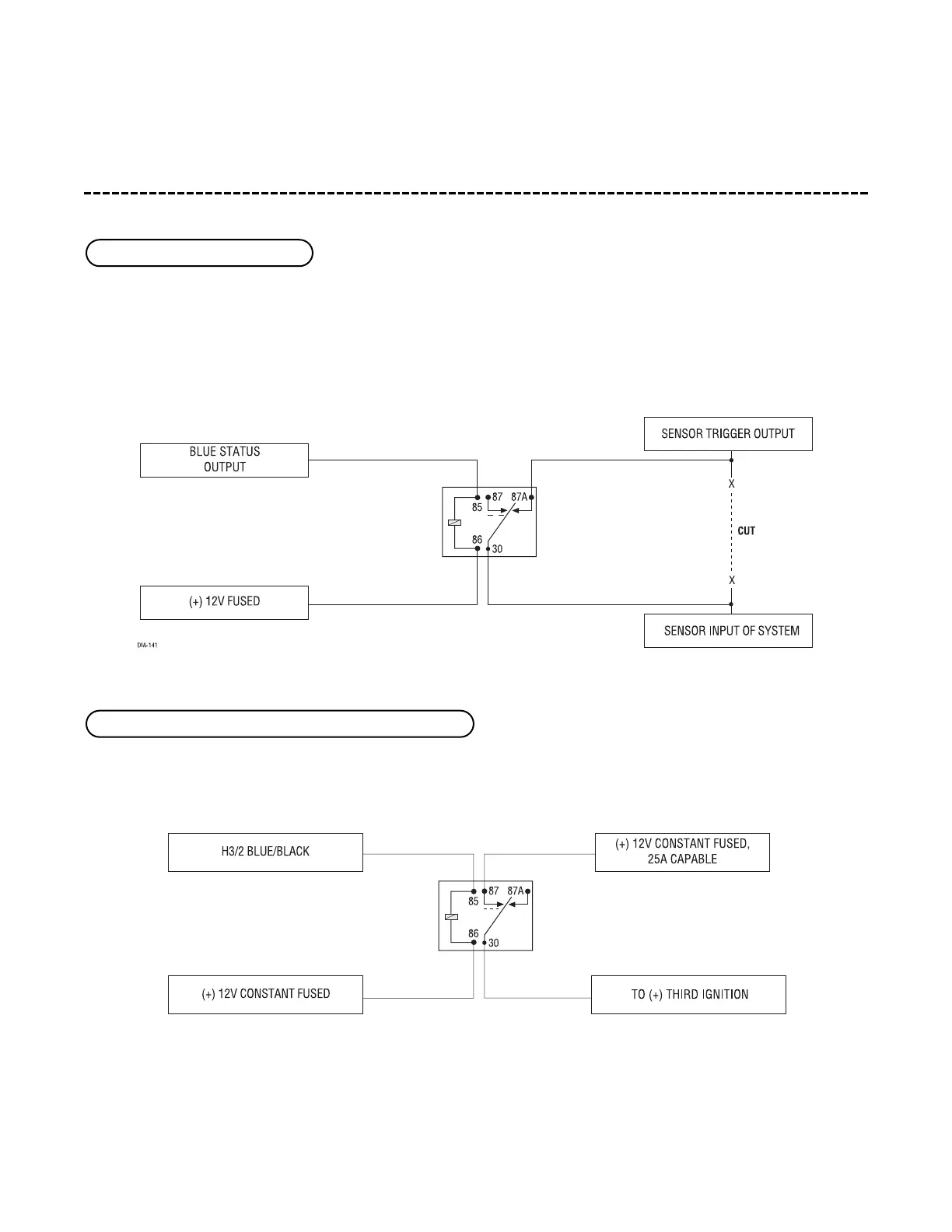

This wire supplies a 200mA output as soon as the module begins the remote start process. It can be used with a
relay to disconnect a sensor from the system as shown below. The H3/1 BLUE wire can also be used to rearm a
factory anti-theft system when the remote start shuts down. (See the Feature Descriptions section of this guide.)
To bypass an optional sensor:
This output provides a 200mA output as soon as the remote starter is activated. It can be used to power a relay to
energize a positive (+) third ignition as shown below. This output is capable of driving two relays if necessary.
H3/2 BLUE/BLACK (-) optional third ignition output
H3/1 BLUE (-) status output
