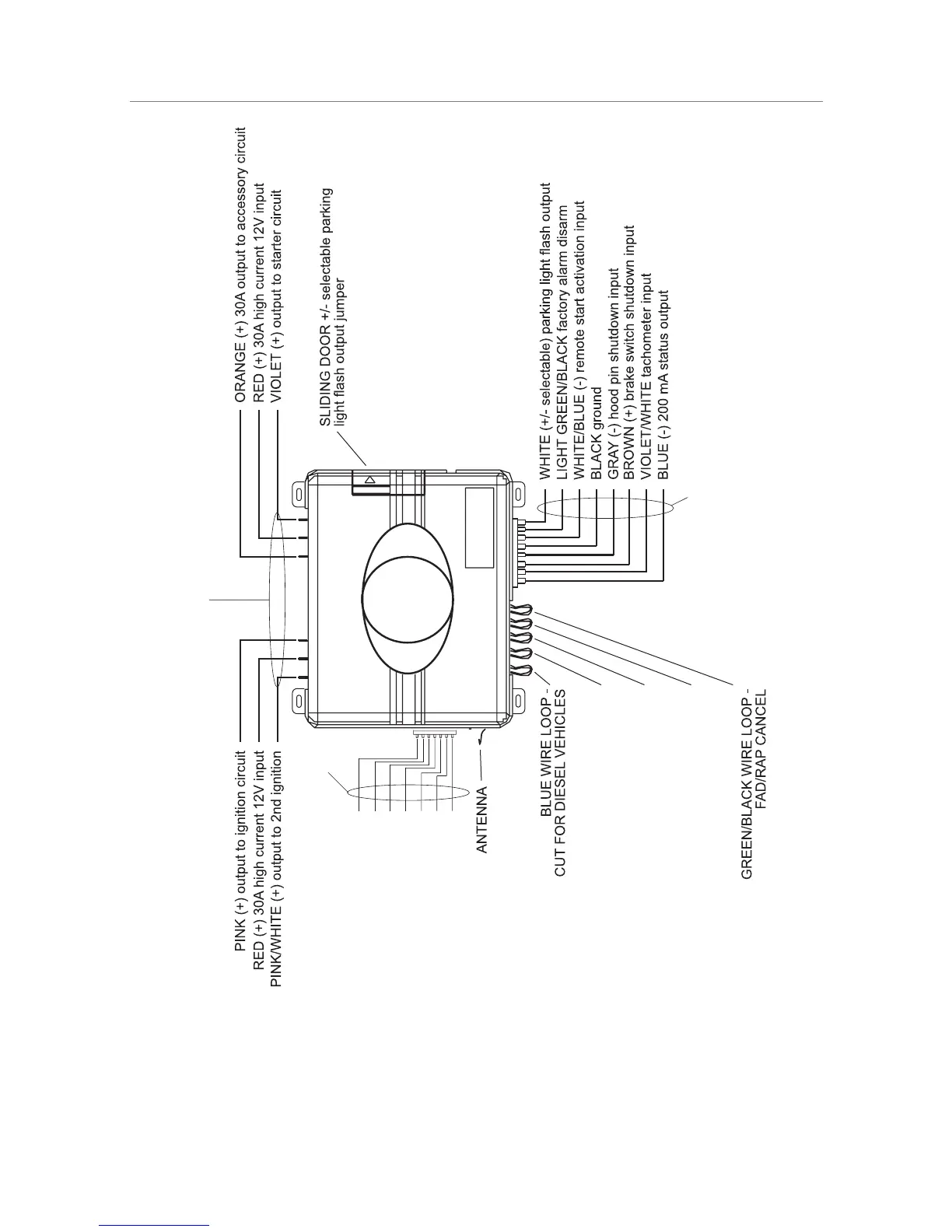

wwiirriinngg qquuiicckk rreeffeerreennccee gguuiiddee
VIOLET/BLACK - Lock #87 Normally Open Input 15A Fused
BROWN/BLACK - Lock #87A Normally Closed
BLUE/BLACK - Unlock #30 Common (Output)
VIOLET - Lock #87 Normally Open Input (looped to VIOLET/BLACK)
GREEN/BLACK - Lock #30 Common (Output)
WHITE/BLACK - Lock #87 Normally Closed
RED/WHITE - (-) Channel 2
H1
H2
Heavy Gauge
Wires
RED - IGNITION CONTROL
GREEN - DOOR UNLOCK
WHITE - DOOR LOCK
