step 4
Safety Shutdown Wires
With all ignition wires properly connected, find the appropriate
safety shutdown wires. These are the brake wire and hood pin wires.
First locate the factory brake wire using your test probe. Find the
switch at the top of the metal arm coming off the brake pedal.
There are usually two wires connected to that switch. Locate the
warning! These wires are meant to protect
the vehicle and anyone near the vehicle.
They
mmuusstt
be connected appropriately to
prevent damage to the vehicle and possible
bodily injury. Failure to properly install
these wires may cause the vehicle to lunge if
remote started while in gear.
➜

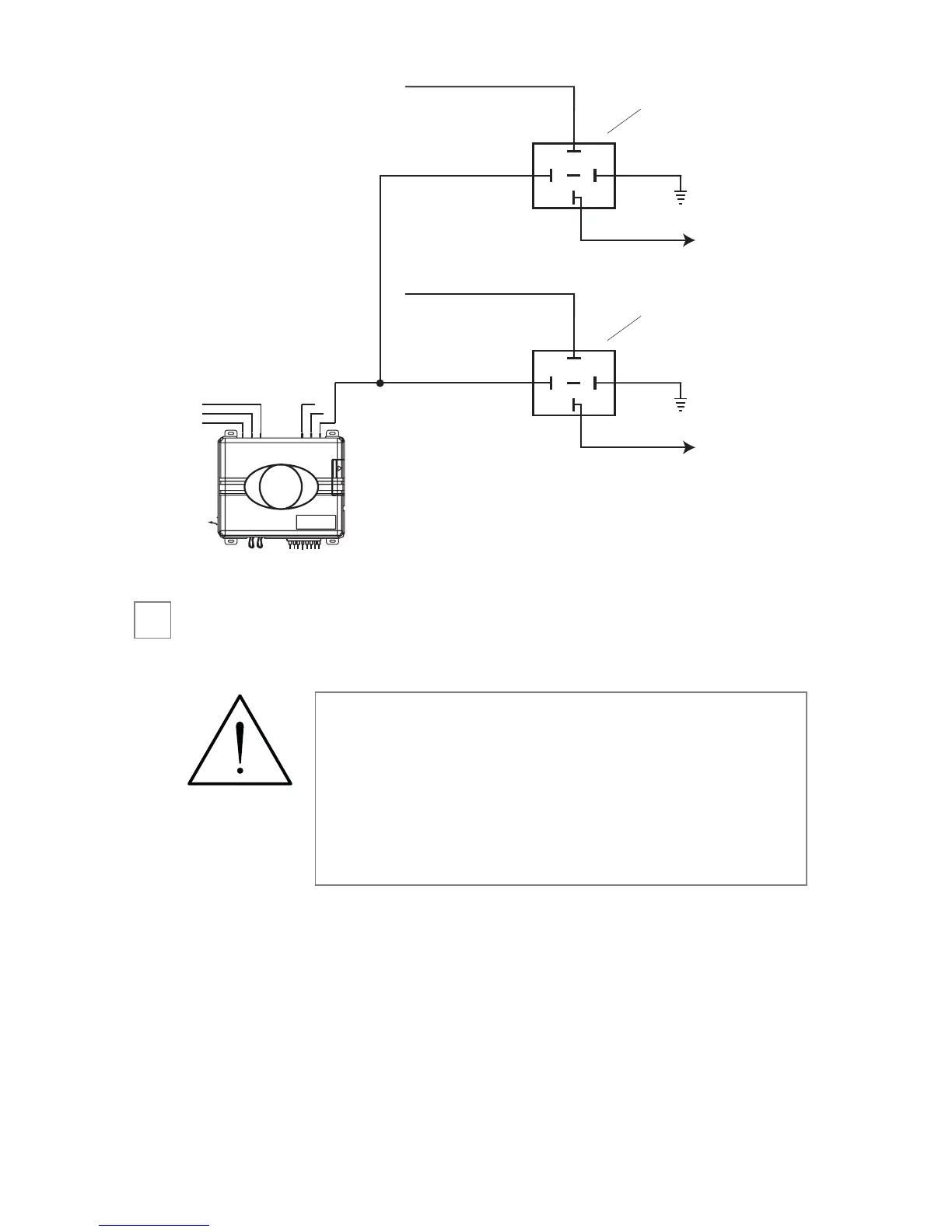

87
87A
86
85
30
+12 VDC CONSTANT (FUSED 20A)
GROUND
TO 2
nd
STARTER
VIOLET (+) OUTPUT
TO STARTER
TO STARTER
2
nd
STARTER RELAY
(NOT PROVIDED)
87
87A
86
85
30
+12 VDC CONSTANT (FUSED 20A)
GROUND
TO STARTER
STARTER RELAY
(NOT PROVIDED)
