II. HARDWARE INFORMATION
A. FRONT PANEL
• ”Status” Light: Multi-Color Status Indicator LED light
• ”Wireless” Light: Multi-Color Wi-Fi Status Indicator LED light (Internal WVB Status)

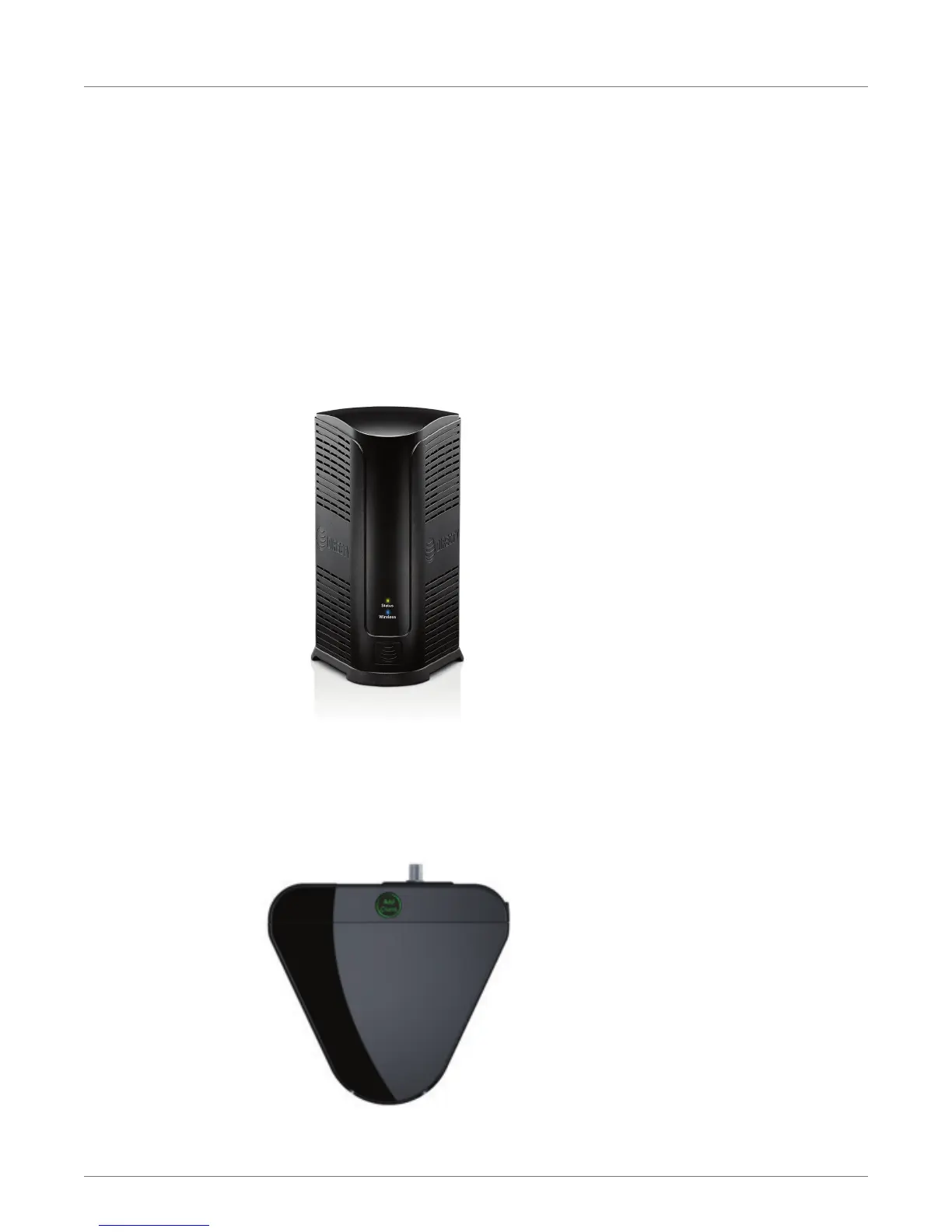

FIGURE 1: Genie 2 FRONT PANEL
B. TOP PANEL
• ”Add Client” Button: Add Client button with Green LED light (at the top)
FIGURE 2: Genie 2 TOP PANEL
Product Manual—Genie 2™
Version 2.0 – 4/4/2017 7
