DirecTV SWiM User Manual

Green Dot Represents Ground Bonding Screw
Rose Colored Oval Represents Weather Seal
Dashed Black Wire Represents 17ga CCS Bond
Silver Cap with Rose Colored
Weather Seal Represents a Weather Cap
Silver Cap, T and the Rose Colored
Weather Seal Represents a Terminator
Circle Represents a Service Loop
A Wall Symbol Represents an
External Penetration with a Drip Loop
Green Colored Wire Represents
A Ground Bond
Represents an Internal Wall Plate
Represents a Ground Block
Represents a Bonding Strap to a
Service Panel
Represents an Internal Electrical Wall
Outlet – Used for a Power Inserter
Represents a Phone Line
Used on Every IRD Installation
Represents a Port expander,
used only with a SWiM module
(switch)

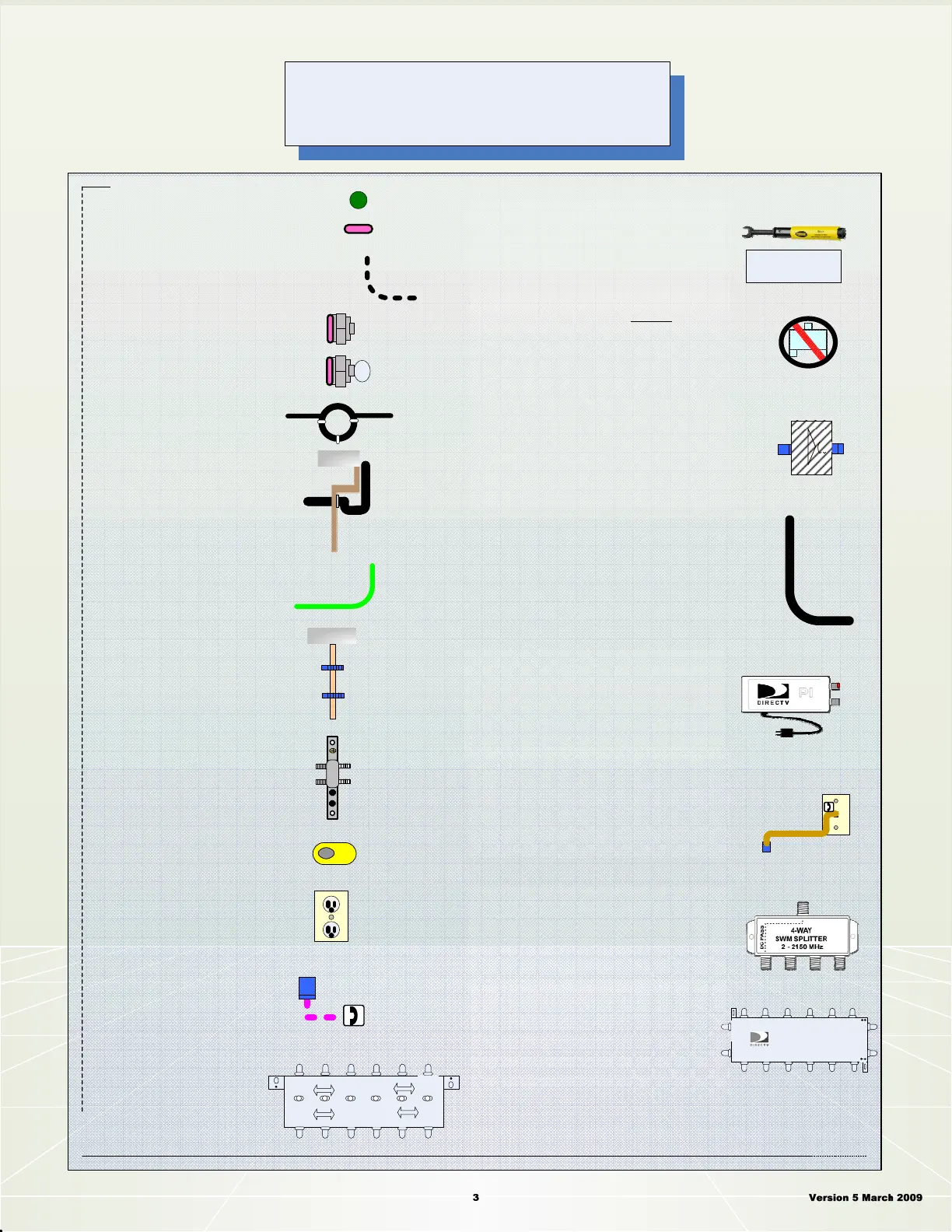

Legend
T
External
Wall
Internal
Wall Plate
Represents that each outdoor F-Connector
must be Torqued to 30 inch Lbs
LNB F-Connectors must be finger tightened
Represents that a Diplexer can not be used
in a KaKu cable run
Off Air Antenna usage has to be directly
connected to the IRD or HDTV via its own
Cable Run
SAT/VHF/UHF
VHF/UHFSAT
Diplexer
Represents that an Amplifier may need to be
Used when the RG-6 cable runs exceed
150 ft
00
Cable Runs Contained in the following
diagrams are not Representative of actual
cable bends on an installation – Actual
Cable Run bends can not exceed 90
degrees of bend
All Outdoor F-Connectors
must be tightened to no less
than 30 inch lbs to include
LNB’s
Represents a phone line installed into
a phone line wall plate
Represents a single port power passing
splitter
Represents a power inserter, the SWiM LNB
uses a 21vdc version and the SWiM module
(switch) uses a 29vdc version. The SWiM
port is color coded in RED
S
W
M
I R D
Legacy
1
Legacy
3
Legacy
2
Legacy
4
Legacy 4
Port
Multiswitch
SWM
Output
Ports
LNB
Input
Ports
Represents a legacy 4 port multiswitch,
only used with SWiM modules (switch)
18v
Sat 99°/101°
13v
Sat 99°/101°
18v/
22KHz
13v/
22KHz
Flex
Port
1
Flex
Port
2
Sat 103°/110°/119°
18v
Sat 99°/101°
13v
Sat 99°/101°
18v/
22KHz
13v/
22KHz
Flex
Port
1
Flex
Port
2
Sat 103°/110°/119°
SWM Connections
Multiswitch Connect ions
ODU Connections

DirecTV SWiM Specifications

General

Frequency Range	2-2150 MHz
Outputs	8
Power Supply	29V DC, 1.5A max
Compatibility	DIRECTV satellite systems
Type	Single Wire Multiswitch
Function	Distributes satellite signals to multiple receivers
