Service
Panel
Satellite In Ports
Phone
Out to TV
Off Air In
Video
S-Video
120V
Video
SWM 1
SWiM Integrated LNB Installation
KaKu -
HD DVR SWiM compatible IRD
AM21 Off-Air Tuner
Off-Air HD Antenna
Single tuner SWiM compatible IRD
4 way single port DC power passing
splitter rated from 2-2150MHz
BBC’s are not required in this scenario
Internal
Wall Plates
External Wall
Black Ground Wire
Indicates # 17ga
CCS Bond
Green Bonding
Wire Indicates #
10ga Solid Copper
SWM
IRD
Satellite In Ports
Phone
Out to TV
Off Air In
Video
S-Video
120V
Video
SWM-1
Terminator
on unused
ports
Weather Seal identifier
All Outdoor F-Connectors
must be tightened to no less
than 30 inch lbs to include
LNB’s
2
HD
DVR
Distance between
the Power Inserter
and the SWiM
switch can not
exceed 150 ft
Bonding

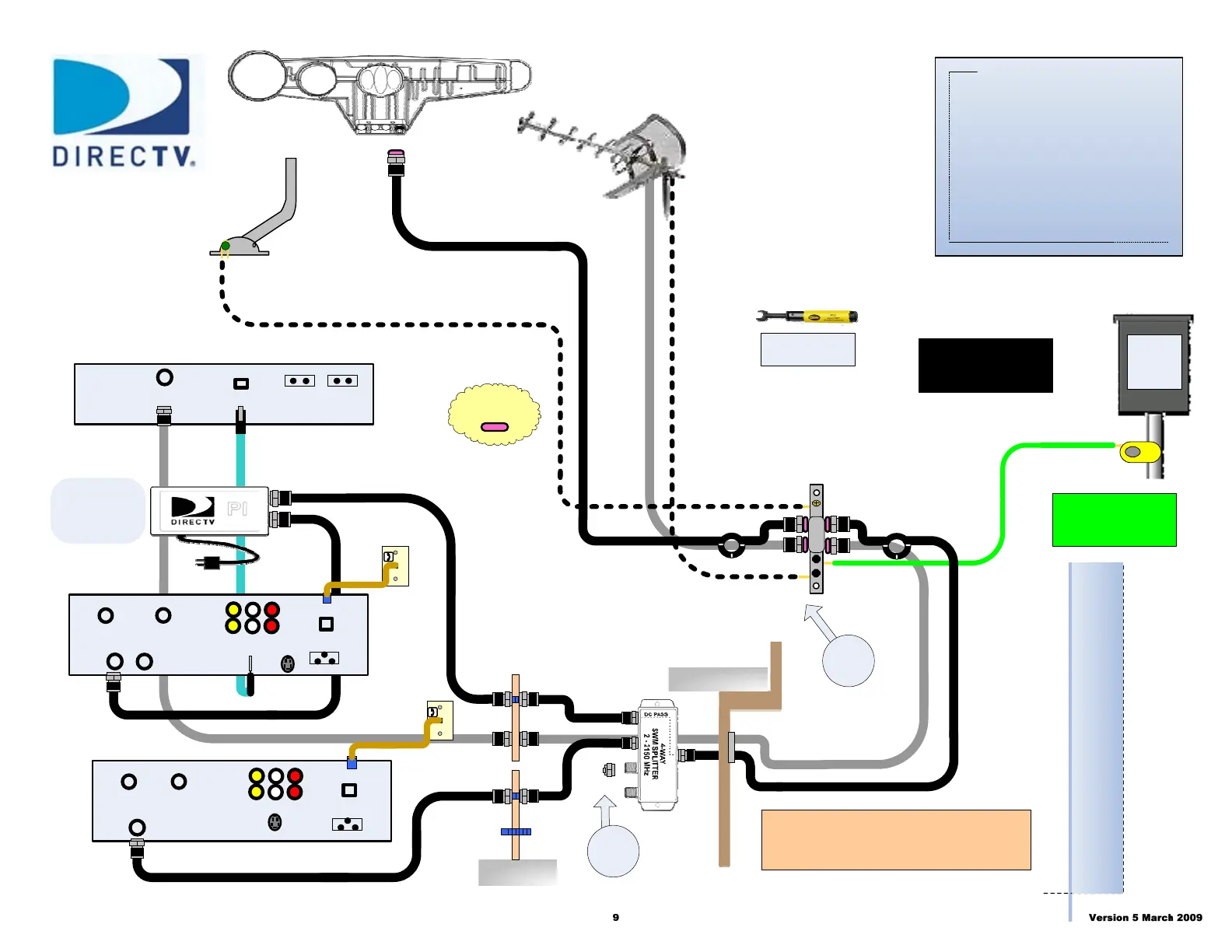

“The following grounding diagrams illustrate only a few examples of ways to bond a DIRECTV system
and may not meet bonding requirements in every municipality within the United States. It is the
responsibility of the installer/technician performing the installation to know and follow all local, state
and federal grounding regulations within the area he or she is working.”
Terminator
on unused
ports
Off-Air In
Power Input
120V
Power Output
120V
Receiver Link
USB
AM 21 HD Off-Air
Tuner
Splitters can be installed exterior of the
residence, however port termination and
weather sealing rules still apply
To Next Page
