Controller Installation and Maintenance Tasks with an Allure EC-Smart-Vue Sensor
Network Guide 99

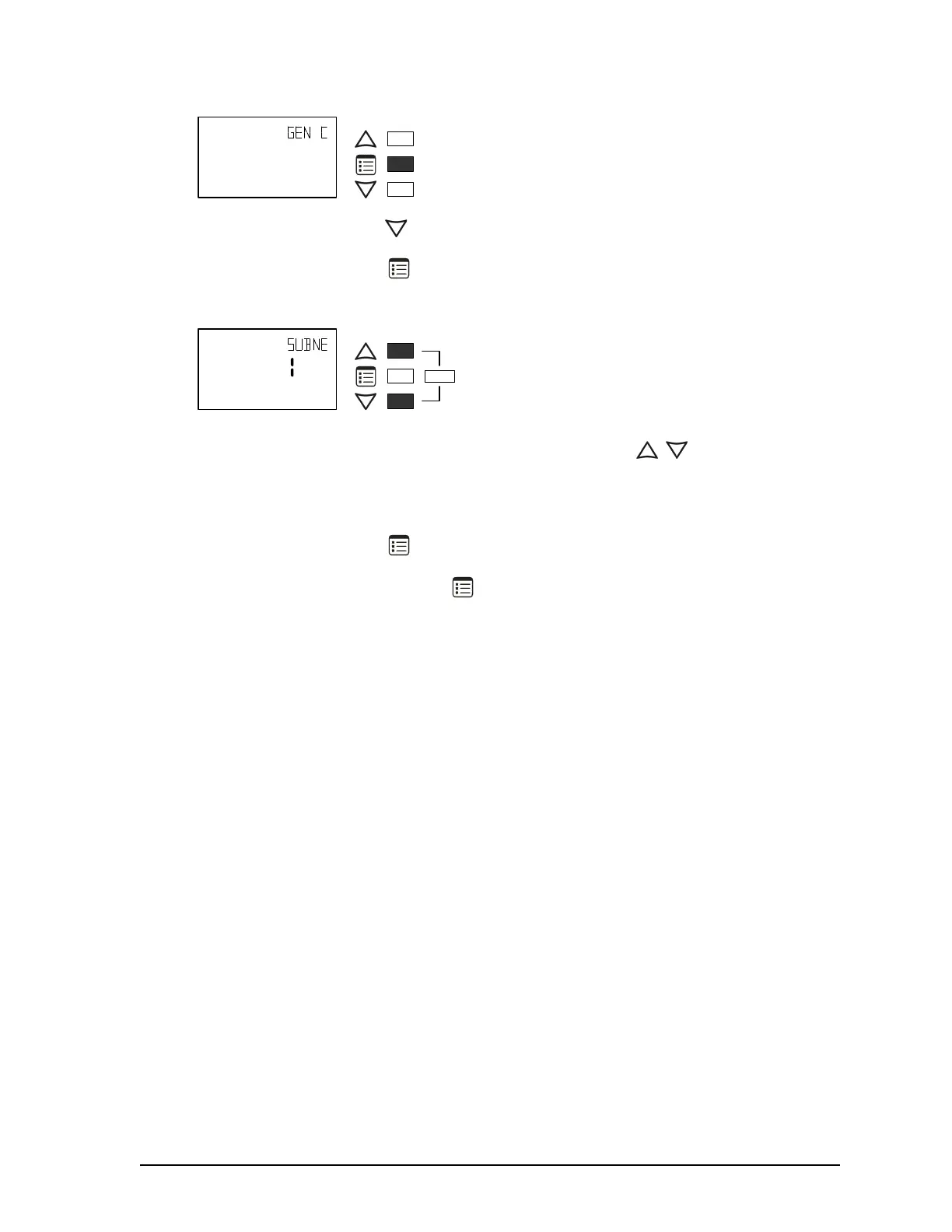

5. Press the down button once to enter the GEN CFG submenu
6. Press the Menu button several times until SUBNET ID appears on the display. The
current controller's Subnet ID is shown.
7. For commissioning purposes, use the up and down buttons to set the controller's
Subnet ID to 1. Tip: Hold down either the up or down button to fast-advance the display
value. Otherwise use the up and down buttons to set the controller's Subnet ID to the
ComSensor block instance value programmed in the controller with EC-gfxProgram.
8. Press the Menu button once to apply the value.
9. Press and hold the Menu button for 5 seconds to exit the configuration menu.
The Allure EC-Smart-Vue sensor can now be used to go from one ECB/ECL Series controller
to the next for commissioning purposes.
When the controller has been programmed, each connected Allure EC-Smart-Vue's Sensor
must be assigned a unique Subnet ID.
Commissioning Controllers
To commission a controller with a MAC Address DIP switch located on the faceplate or under
the cover (in the case of an ECB-103 or ECB-VAV Series controller - when equipped), first set
the DIP switch to 0 (all off - this is the factory default setting when the controller is shipped).
When using an Allure EC-Smart-Vue sensor for commissioning a controller (before code is
downloaded to the controller from EC-gfxProgram), connect an Allure EC-Smart-Vue sensor
to the controller with its Subnet ID set to 1.
For ECB-VAV and ECL-VAV Series controllers, commissioning can be used to perform appli-
cation selection if needed. Applications are preloaded programs that enable the ECB-VAV and
ECL-VAV to control a typical VAV box. See the ECL-VAV or ECB-VAV Preloaded Application
User Guide for more Information.
OR
Screen Timeout: 30 seconds
OR
Screen Timeout: 30 seconds
