Distech Controls ECL/ECB-103 Series User Manual

Controller Installation and Maintenance Tasks with an Allure EC-Smart-Vue Sensor
Network Guide 103

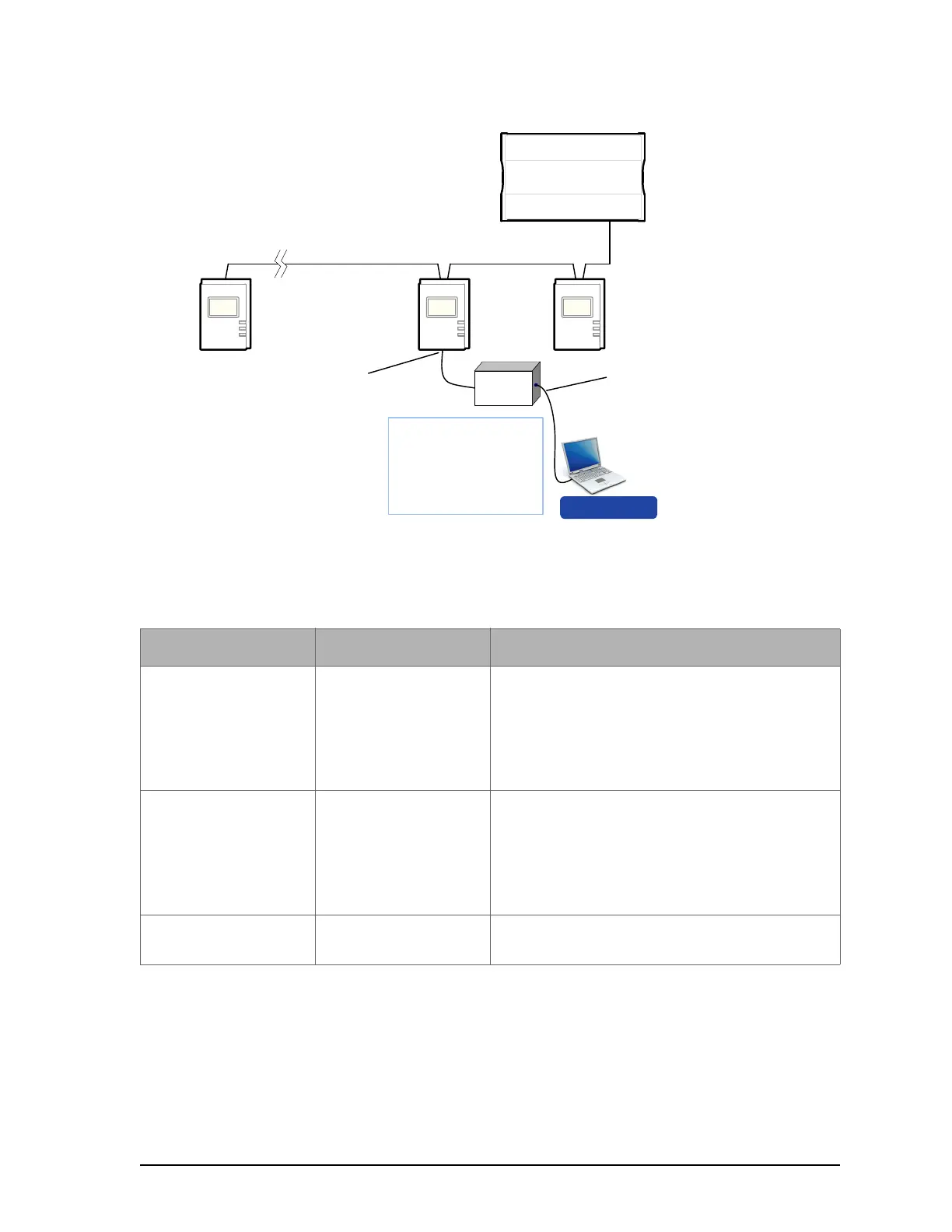

Figure 64: Overview of the Allure EC-Smart-Vue sensor Subnetwork Data Bus with LAN Access
Certain controller models support the ability to bring the LAN to the Allure EC-Smart-Vue sen-
sor, while other controller models do not.
LAN Access
Connector
EC-Net Pro
- Temporary
Commissioning and
Maintenance
Connection
- No EOL Resistors are
Necessary
Typical Adaptor /
Network Interface
Cat 5e Cable Subnetwork Bus
Typical ECB / ECL
Series Controller
Table 26: LAN through an Allure EC-Smart-Vue Sensor Feature Compatibility
Controller Model Supported See
ECL-VAV Series
ECL-103
ECL-203 Series
ECL-300 Series
ECL-400 Series
ECL-600 Series
Yes LAN through an Allure EC-Smart-Vue Sensor
for a L
ONWORKS Network on page 60
ECB-VAV Series
ECB-103
ECB-203 Series
ECB-300 Series
ECB-400 Series
ECB -600 Series
Yes LAN through an Allure EC-Smart-Vue Sensor
for a BACnet Network on page 60
ECB/ECL-PTU Series
ECB/ECL/VAVS
No -
